SELECT A DIAGRAM

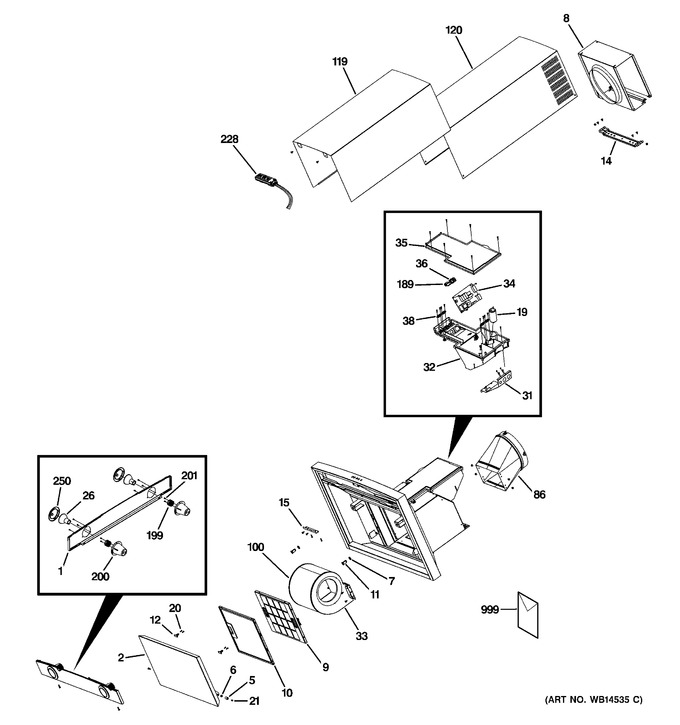

1 - Range Hood


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB63X10062		Lamp Panel		Appelez-nous	-
2	WB02X11344		Filter Cover Panel		Appelez-nous	-
5	WB02X11346		Thumb Screw Sleeve		Appelez-nous	-
6	WB01X10366		Nut		Appelez-nous	-
7	WB01X10367		Latch Receiver Nut		Appelez-nous	-
8	WB02X11347		Air Deflector		Appelez-nous	-
9	WB02X11348		Charcoal Filter		Appelez-nous	-
10	WB02X11350		Grease Filter		Appelez-nous	-
11	WB02X11351		Latch Receiver		Appelez-nous	-
12	WB02X11352		Latch Stud		Appelez-nous	-
14	WB02X11356		Duct Bracket		Appelez-nous	-
15	WB02X11358		Keypad Bracket		Appelez-nous	-
19	WB17X10024		Capacitor Washer & Nut		Appelez-nous	-
20	WB01X10370		Latch Stud Screw		Appelez-nous	-
21	WB01X10371		Screw		Appelez-nous	-
26	WB08X10056		Lamp		Appelez-nous	-
31	WB02X11353		Strain Relief/cover		Appelez-nous	-
32	WB02X11359		Junction Box		Appelez-nous	-
33	WB02X11357		Blower Mounting Bracket		Appelez-nous	-
34	WB27X11013		Main Control Board		Appelez-nous	-
35	WB02X11345		Junction Box Cover		Appelez-nous	-
36	WB18X10407		Harness/plug		Appelez-nous	-
38	WB02X11349		Strain Relief		Appelez-nous	-
86	WB02X11354		Transition Damper		Appelez-nous	-
100	WG02F03009		Blower Motor Assy   (Replaces: WB26X10218)				$ 1,228.56
119	WB38X10120		Lower Duct Cover		Appelez-nous	-
120	WB38X10119		Upper Duct Cover		Appelez-nous	-
189	WB24X10156		Switch		Appelez-nous	-
199	WB08X10055		Lamp Socket		Appelez-nous	-
200	WB02X11355		Lamp Cover		Appelez-nous	-
201	WB01X10369		Screw		Appelez-nous	-
228	WB27X11014		Keypad Assy		Appelez-nous	-
250	WB01X10368		Bezel		Appelez-nous	-
999	49-80513		Owners Manual		Appelez-nous	-
999	49-80512		Installation Instruction		Appelez-nous	-
999	31-14722		Mini Manual		Appelez-nous	-
	WG02L02641		Upper Duct Cover, Monogram				$ 650.72
	WG02L03786		Lower Duct Cover, Monogram				$ 545.88

    View Diagram in Separate Window       Print Part List
