10 - Case Parts


1 - Dispenser Door


2 - Machine Compartment


3 - Right Side Door


4 - Freezer Doors


5 - Freezer Section


6 - Freezer Shelves


7 - Ice Maker & Dispenser


8 - Fresh Food Section


9 - Fresh Food Shelves

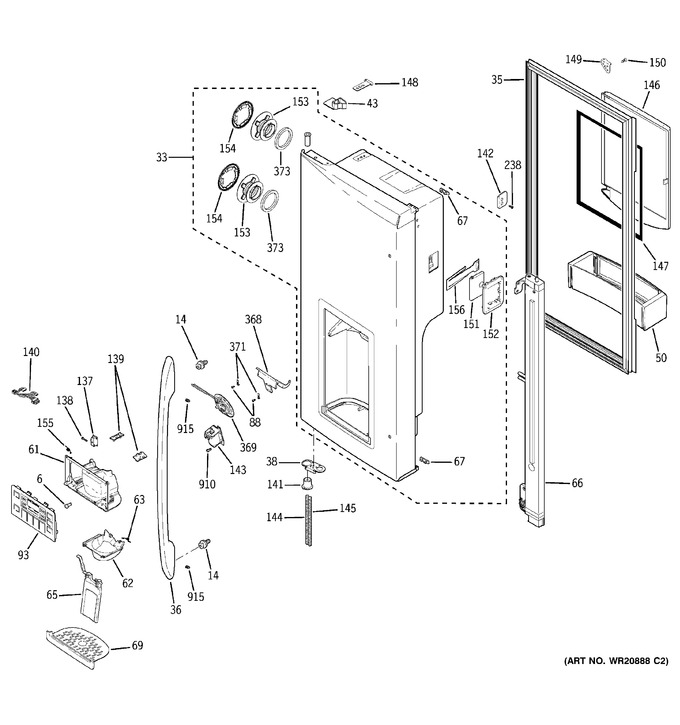

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	WR02X13502		Rivet Clinch		Appelez-nous	-
14	WR01A00257		Fastener Handle Ss   (Replaces: WR01X10680)				$ 15.78
33	WR78X12737		Door Foam Asm Fr Bw Lh		Appelez-nous	-
35	WR01L02134		Gasket French With Flap   (Replaces: WR14X10305)			Immediately	$ 98.12
36	WR12X10976		Handle Asm Ff Fin		Appelez-nous	-
38	WR02X13483		Stop Door Bm		Appelez-nous	-
43	WR02X13484		Cam Ff Closure Lh		Appelez-nous	-
50	WR17X12979		Module Shelf Asm Ff		Appelez-nous	-
61	WR01F01053		Housing Shield Disp   (Replaces: WR17X12500)				$ 22.89
62	WR01L02041		Funnel Ice Dispenser   (Replaces: WR17X12983)				$ 18.17
63	WR02X13485		Spring Torsion		Appelez-nous	-
65	WR17X12982		Paddle Asm		Appelez-nous	-
66	WR17X12980		Articulation Mullion Asm		Appelez-nous	-
67	WR02X13427		Bumper French Door		Appelez-nous	-
69	WR01L02248		Grill Recess   (Replaces: WR17X12981)				$ 12.50
88	WR01X10377		Scr 4-10 Pl Pnp 5/16 S5h		Appelez-nous	-
93	WR01F01494		Interface Dispenser Asm   (Replaces: WR55X11087)				$ 250.53
137	WR01F03637		Switch   (Replaces: WR23X10224)			Immediately	$ 17.47
138	WR02X12257		Scr 4-10 Pl Pnp 3/4 Ss		Appelez-nous	-
139	WR01F00145		Board Asm Disp Lighting   (Replaces: WR55X10899)				$ 15.88
140	WR23X10665		Harness Recess Dispensor		Appelez-nous	-
141	WR02X13486		Thimble Door Ff		Appelez-nous	-
142	WR02X13487		Clip Mullion Hinge		Appelez-nous	-
143	WR01F01784		Solenoid Asm   (Replaces: WR62X10055)				$ 88.99
144	WR02X13488		Spring Water Conduit		Appelez-nous	-
145	WR02X13489		Spring Water Conduit		Appelez-nous	-
146	WR17X12984		Door Ice Box Asm		Appelez-nous	-
147	WR14X10355		Gasket Icebox Door		Appelez-nous	-
148	WR13X10926		Door Icebox Hinge Top		Appelez-nous	-
149	WR13X10927		Door Icebox Hinge Bottom		Appelez-nous	-
150	WR01X10977		Scr 8-18 Hi-lo Flp 1/2 S		Appelez-nous	-
151	WR02X13490		Latch Button		Appelez-nous	-
152	WR02X13491		Latch Trim		Appelez-nous	-
153	WR14X10356		Gasket Retainer		Appelez-nous	-
154	WR14X10357		Port Gasket		Appelez-nous	-
155	WR02X13492		Spring Duct Door		Appelez-nous	-
238	WR01X10482		Scr 8-18a Fl Hd 5/8 Ss		Appelez-nous	-
368	WR01L00935		Crank Door Recess   (Replaces: WR17X10706)				$ 12.71
369	WR17X13004		Duct Door Assembly		Appelez-nous	-
371	WR2X8818		Retainer Recess Door		Appelez-nous	-
373	WR02X13506		Foam Tape		Appelez-nous	-
910	WR01A01034		Scr 8-10 Pl Pnp 1/2 S   (Replaces: WR01X10221)				$ 4.20
915	WR01A01440		Set Screw   (Replaces: WR01X10450)				$ 9.53
	WR01A00748		Service Kit I&w Door				$ 964.21
	WR01F00137		Blower Duct Asm				$ 97.72
	WR01F00241		Board Asm Main Control			Immediately	$ 292.81
	WR01F02845		Connector			Immediately	$ 19.06
	WR01F03626		Tarjeta Principal				$ 129.05
	WR01L00012		1/4 Union Connector				$ 10.52
	WG03F07366		Icemaker - Door Mounted   (Replaces: WR01L02568)			Immediately	$ 244.43
	WR01L04419		Slide Upper Asm Lh 25				$ 104.65
	WR01L04420		Slide Upper Asm Rh 25				$ 120.94
	WG04F11911		Valve   (Replaces: WG03F00685)			Immediately	$ 123.62
	WR01L06232		Double Coil Water Tank				$ 40.49
