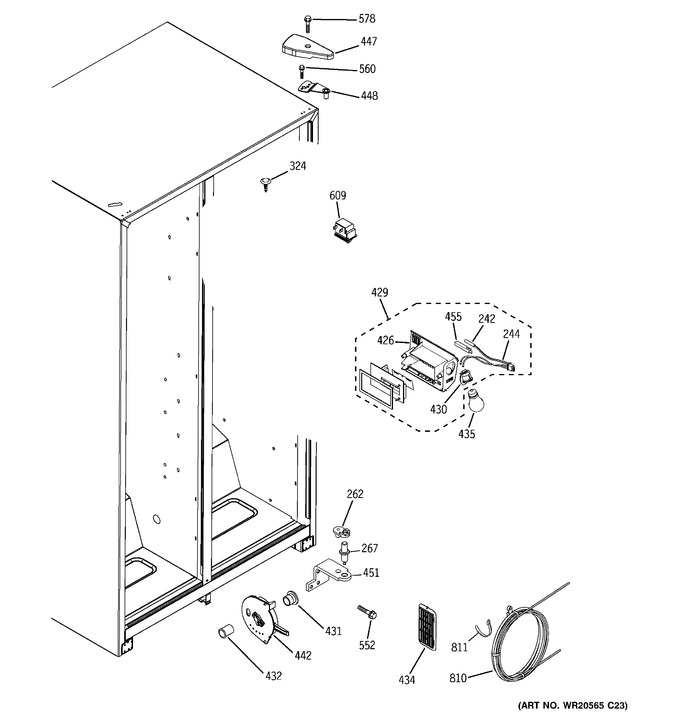

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
242	WR55X10736		Sensor Temperature		Appelez-nous	-
244	WR55X10737		Sensor Temperature		Appelez-nous	-
262	WR02X11743		Hinge Cam Riser		Appelez-nous	-
267	WR23X10496		Harness Fz Fan Htr		Appelez-nous	-
324	WG03F01629		Plug Button   (Replaces: WR2X7051)				$ 4.78
426	WR02X12261		Cover Damper		Appelez-nous	-
429	WR02X12467		Damper Cover Asm		Appelez-nous	-
430	WR02X10645		Socket Lamp		Appelez-nous	-
431	WR2X9299		Cap Mullion Duct		Appelez-nous	-
432	WR02X10561		Duct Mullion		Appelez-nous	-
434	WR17X10262		Grille Air Return		Appelez-nous	-
435	WR02X12289		Lamp		Appelez-nous	-
442	WR17X10060		Control Meat Pan Asm		Appelez-nous	-
447	WR02X11482		Cover Hinge Bk		Appelez-nous	-
448	WR13X10711		Hinge Top & Pin Asm		Appelez-nous	-
451	WR13X10422		Ff Hinge Btm & Pin Asm		Appelez-nous	-
455	WR02X12258		Cover Sensor Ff		Appelez-nous	-
552	WR01X10600		Scr 12-24 Tt Hx .811 S Z		Appelez-nous	-
560	WR01X10650		Scr 12-24 Ca Hx 7/8 S		Appelez-nous	-
578	WR01F03225		Screw Hinge Cover   (Replaces: WR01X10379)				$ 3.97
609	WR23X10481		Switch Light		Appelez-nous	-
810	WR17X11331		Water Storage Coil		Appelez-nous	-
811	WR02X11607		Wire Tie		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
