SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Freezer Shelves


5 - Ice Maker & Dispenser


6 - Fresh Food Section


7 - Fresh Food Shelves


8 - Sealed System & Mother Board

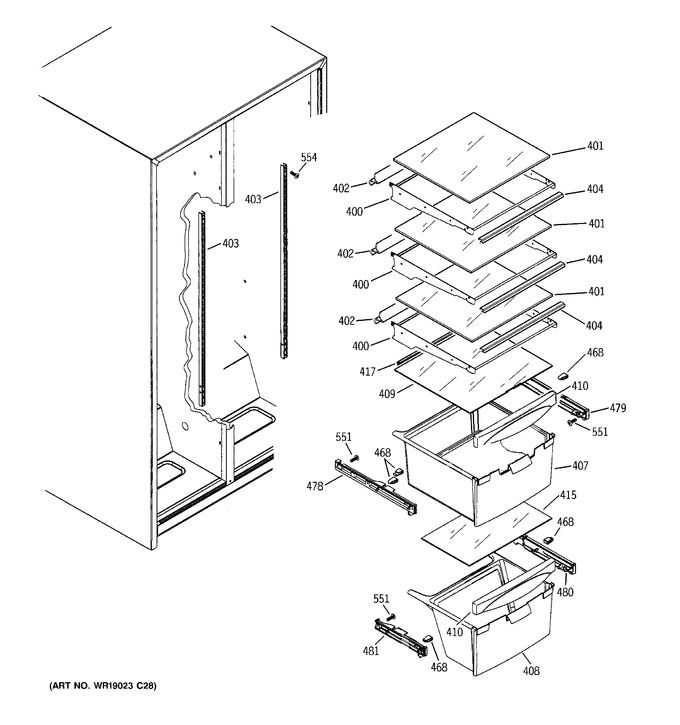

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
400	WR71X10239		Shelf Cant		Appelez-nous	-
401	WR32X10169		Shelf Cant Glass		Appelez-nous	-
402	WR38X10380		Reflector Glass Shelf		Appelez-nous	-
403	WR72X254		Track Cant Shelf		Appelez-nous	-
404	WR38X10381		Trim Glass Shelf		Appelez-nous	-
407	WG03L04206		Pan Veg Clear   (Replaces: WR32X10834)				$ 196.05
408	WR32X10835		Pan Meat Clear		Appelez-nous	-
409	WR32X10594		Cover Pan Glass		Appelez-nous	-
410	WR17X11234		Handle Pan Meat		Appelez-nous	-
415	WR32X10595		Cover Pan Glass		Appelez-nous	-
417	WR14X10080		Gasket Shield Lower		Appelez-nous	-
468	WR1X2048		Bearing Slide		Appelez-nous	-
478	WR01F03334		Slide Asm Lh   (Replaces: WR72X239)				$ 111.73
479	WR01F03335		Slide Asm Rh   (Replaces: WR72X240)				$ 87.23
480	WG03F00962		Slide Asm Rh   (Replaces: WR72X242)				$ 81.27
481	WG03F00961		Slide Asm Lh   (Replaces: WR72X241)				$ 106.28
551	WR01A01042		Scr 8-18 Ab Rndw 5/8 Ss   (Replaces: WR01X10789)				$ 3.97
554	WR01X10601		Scr 10-24 Tt Ihxw 1.000		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
