Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10240116 Guide, Use & Care (english/french) Appelez-nous -
1 W10240117 Guide, Use & Care (spanish) Appelez-nous -
1 W10142800 Tech Sheet Appelez-nous -
1 W10329311 Instructions, Installation Appelez-nous -
1 W10398587 Energy Guide Appelez-nous -
2 W11613572 Arm, Hinge (right)   (Replaces: W10143373) In-Stock Immediately $ 83.93

2 W11806566 Arm, Hinge (left)   (Replaces: W10143374) In-Stock Immediately $ 71.77

3 8268983 Stiffener, Door Special Order $ 38.77

4 W10245556 Panel Front (biscuit) Appelez-nous -
4 W10245554 Panel Front (black) Appelez-nous -
4 W10245555 Panel Front (white) Appelez-nous -
4 W10245557 Panel Front (stainless Steel) Appelez-nous -
5 W10369028 Access Panel (biscuit) Special Order $ 170.73

5 W10827632 Access Panel (white)   (Replaces: W10369026) In-Stock Immediately $ 163.70

5 W10827631 Access Panel (black)   (Replaces: W10369024) In-Stock Immediately $ 195.64

6 W10254613 Insulation, Door Special Order $ 9.47

7 WPW10503548 Screw (black)   (Replaces: W10331789) In-Stock Immediately $ 30.39

7 WPW10503549 Screw (white)   (Replaces: W10331793) In-Stock Immediately $ 7.77

7 WPW10503550 Screw (biscuit)   (Replaces: W10331794) Special Order $ 29.00

8 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

9 WPW10109200 Screw   (Replaces: 489470) In-Stock Immediately $ 8.80

10 W10324628 Handle (chrome) Special Order $ 98.96

10 W10324629 Handle (biscuit) Appelez-nous -
10 W10324627 Handle (white) Special Order $ 182.84

10 WPW10324630 Handle (black)   (Replaces: W10324630) Special Order $ 196.53

11 W10201653 Vent Assy Appelez-nous -
12 W10826179 Screw   (Replaces: W10316572) In-Stock Immediately $ 7.55

13 W11157086 Stud   (Replaces: W10195726) In-Stock Immediately $ 8.87

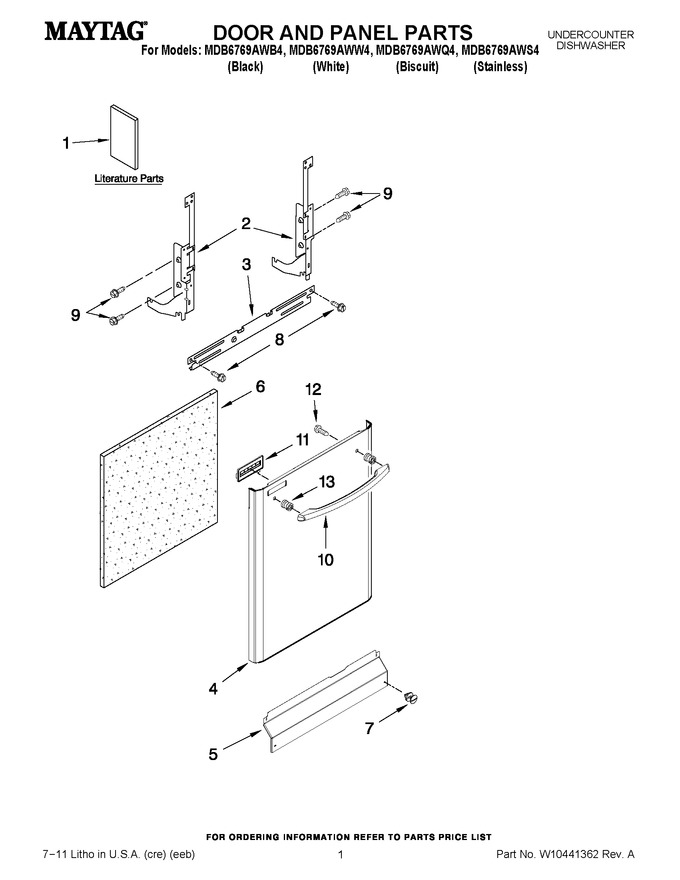

    View Diagram in Separate Window     Print Icon   Print Part List
