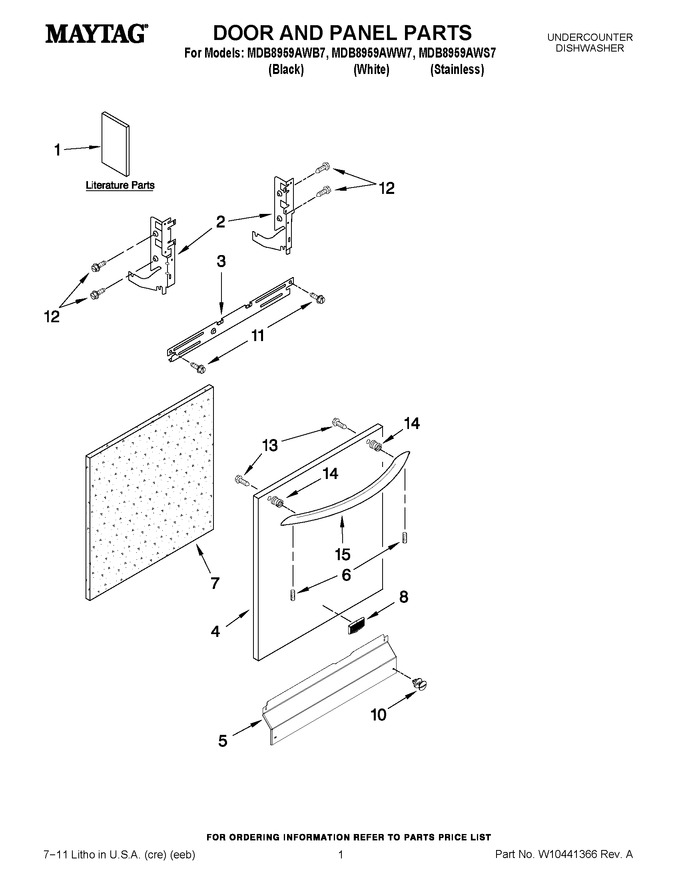

01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10199659		Guide, Use & Care (spanish)		Appelez-nous	-
1	W10142800		Tech Sheet		Appelez-nous	-
1	W10329314		Instructions, Installation		Appelez-nous	-
1	W10398588		Energy Guide		Appelez-nous	-
1	W10199658		Guide, Use & Care (english/french)		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 142.39
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 142.24
3	8268983		Stiffener, Door				$ 38.77
4	W10406152		Panel Front (stainless)		Appelez-nous	-
4	W10406151		Panel Front (white)		Appelez-nous	-
4	W10406150		Panel Front (black)		Appelez-nous	-
5	W10827631		Access Panel (black)   (Replaces: W10369024)			Immediately	$ 195.64
5	W10827632		Access Panel (white)   (Replaces: W10369026)			Immediately	$ 163.70
6	WP8534008		Screw, Set   (Replaces: 8534008)				$ 9.37
7	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 96.23
8	W10199708		Badge, Name				$ 53.28
10	WPW10503549		Screw (white)   (Replaces: W10331793)			Immediately	$ 7.77
10	WPW10503548		Screw (black)   (Replaces: W10331789)			Immediately	$ 30.39
11	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
12	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
13	W10826179		Screw   (Replaces: W10316572)			Immediately	$ 7.55
14	W11157086		Stud   (Replaces: W10195726)			Immediately	$ 8.87
15	W10324628		Handle (stainless)				$ 98.96
15	WPW10324630		Handle (black)   (Replaces: W10324630)				$ 196.53
15	W10324627		Handle (white)				$ 182.84
