Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10401503 Instructions, Installation Appelez-nous -
1 W10240117 Use & Care Guide (spanish) Appelez-nous -
1 W10240116 Use & Care Guide (english/french) Appelez-nous -
1 W10142800 Tech Sheet Appelez-nous -
1 W10398587 Energy Guide Appelez-nous -
2 W11806566 Arm, Hinge (left)   (Replaces: W10143374) In-Stock Immediately $ 71.77

2 W11613572 Arm, Hinge (right)   (Replaces: W10143373) In-Stock Immediately $ 83.93

3 8268983 Stiffener, Door Special Order $ 38.77

4 W10245554 Panel Front (includes Items 13 & 15) (black) Appelez-nous -
4 W10245555 Panel Front (includes Items 13 & 15) (white) Appelez-nous -
4 W10245557 Panel Front (includes Items 13 & 15) (stainless) Appelez-nous -
4 W10245556 Panel Front (includes Items 13 & 15) (bisque) Appelez-nous -
5 W10827631 Access Panel   (Replaces: W10369024) In-Stock Immediately $ 195.64

6 W11157086 Stud   (Replaces: W10195726) In-Stock Immediately $ 8.87

7 WPW10073520 Insulation, Door   (Replaces: W10073520) Special Order $ 96.23

8 W10826179 Screw   (Replaces: W10316572) In-Stock Immediately $ 7.55

10 WPW10503548 Fastener   (Replaces: W10331789) In-Stock Immediately $ 30.39

11 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

12 WPW10109200 Screw   (Replaces: 489470) In-Stock Immediately $ 8.80

13 W10201656 Vent Assembly (stainless) Appelez-nous -
13 W10201654 Vent Assembly (white) Special Order $ 50.35

13 W10201653 Vent Assembly (black) Appelez-nous -
13 W10201655 Vent Assembly (bisque) Appelez-nous -
14 W10324628 Handle (stainless) Special Order $ 98.96

14 WPW10324630 Handle (black)   (Replaces: W10324630) Special Order $ 196.53

14 W10324627 Handle (white) Special Order $ 182.84

14 W10324629 Handle (bisque) Appelez-nous -
15 WP8534008 Screw   (Replaces: 8534008) Special Order $ 9.37

16 W10831329 Insulation, Access Panel   (Replaces: W10073540) In-Stock Immediately $ 43.30

17 WP8268961 Sleeve, Friction   (Replaces: 8268961) In-Stock Immediately $ 5.93


    View Diagram in Separate Window     Print Icon   Print Part List

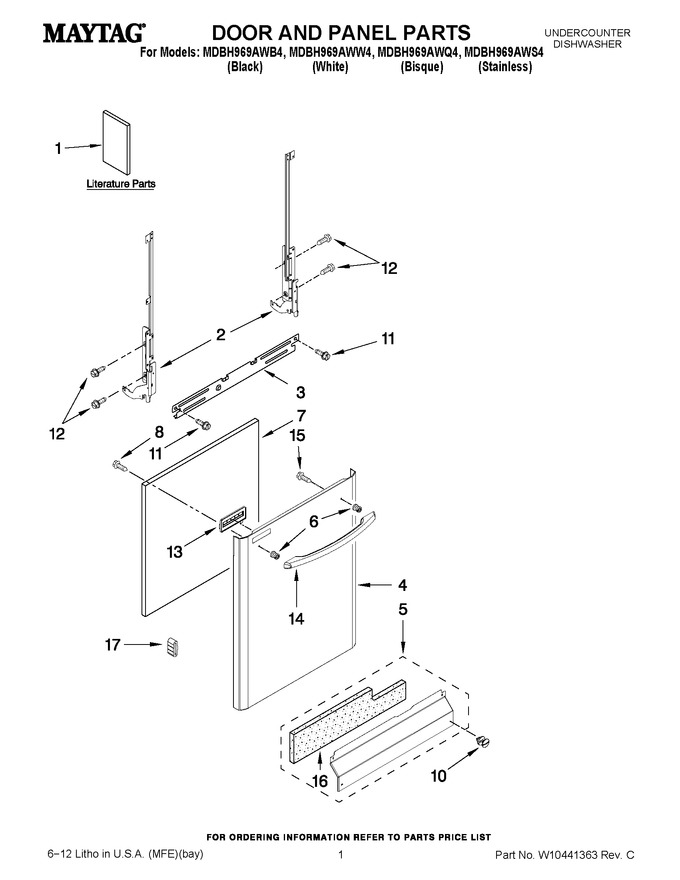

Diagram for MDBH969AWS4
