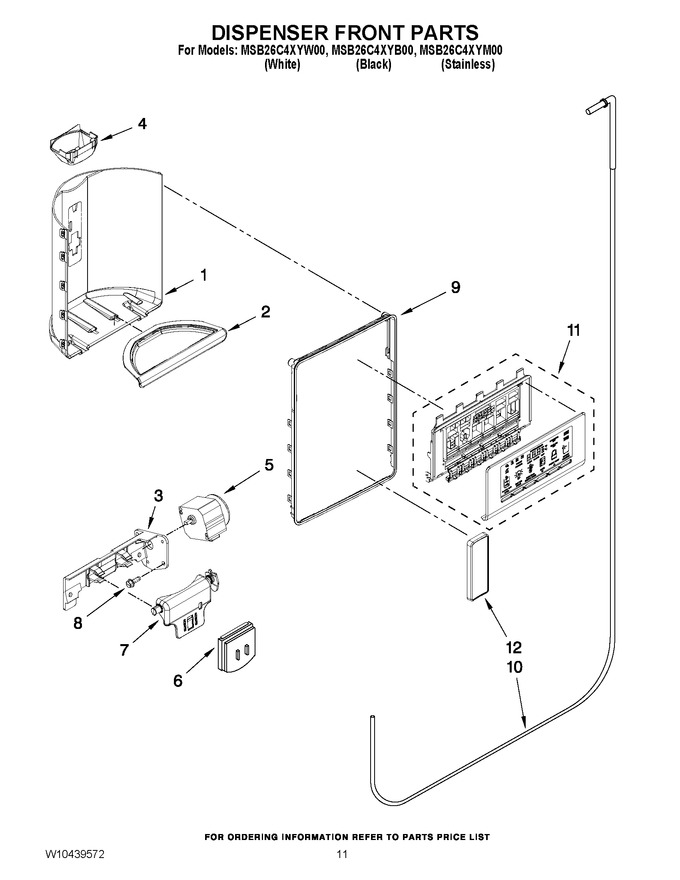

08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10322872		Grate, Drip Tray (white)		Appelez-nous	-
2	W10410105		Grate, Drip Tray (sparkle)				$ 104.16
2	WPW10322873		Grate, Drip Tray (black)   (Replaces: W10322873)				$ 58.53
3	W10174827		Bracket, Ice Door				$ 76.42
4	WPW10435760		Chute, Door   (Replaces: W10339578)				$ 23.94
5	WPW10205978		Motor, Ice Door   (Replaces: W10205978)				$ 104.12
6	WPW10291704		Ice Door Assembly (includes Items 3, 5, 7, & 8)   (Replaces: W10291704)				$ 192.66
7	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 41.85
8	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
9	W10587909		Trim Ring (sparkle)   (Replaces: W10410107)				$ 91.07
9	W10322864		Trim Ring (black)		Appelez-nous	-
9	W10587907		Trim Ring (white)   (Replaces: W10322863)				$ 29.12
10	W11566468		Water Tube With Spigot   (Replaces: W10294737)			Immediately	$ 58.56
11	W10410114		Electronic Control Assy (stainless Model)		Appelez-nous	-
11	W10410113		Electronic Control Assy (black Model)		Appelez-nous	-
11	W10410112		Electronic Control Assy (white Model)		Appelez-nous	-
12	W10348786		Pad, Ice & Water (silver)		Appelez-nous	-
12	W10348739		Pad, Ice & Water (white)		Appelez-nous	-
12	W10348739		Pad, Ice & Water (black)   (Replaces: W10410098)		Appelez-nous	-
