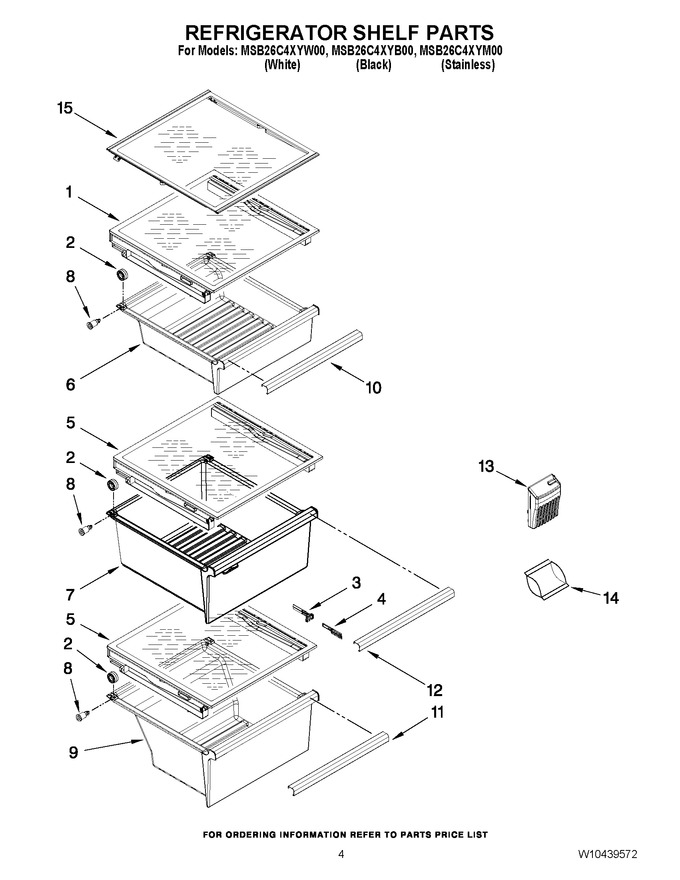

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10362171		Shelf, Snack Pan		Appelez-nous	-
2	W11164152		Roller   (Replaces: W10278139)			Immediately	$ 15.74
3	W11746089		Slide, Humidity   (Replaces: W10282883)				$ 30.50
4	W11746089		Housing, Humidity   (Replaces: W10282880)				$ 30.50
5	W10362172		Cover, Assy		Appelez-nous	-
6	WPW10256770		Snack Pan Also Order 2 & 8   (Replaces: W10256770)				$ 164.87
7	WPW10278653		Crisper Pan Also Order 2, 3, 4, & 8)   (Replaces: W10278653)				$ 173.33
8	WPW10257246		Axle, Roller   (Replaces: W10257246)				$ 36.54
9	WPW10256774		Meat Pan Also Order 2 & 8   (Replaces: W10256774)			Immediately	$ 170.34
10	W10309636		Trim, Snack Pan   (Replaces: W10281628)		Appelez-nous	-
11	W10309635		Trim, Meat Pan		Appelez-nous	-
12	W10309636		Trim , Handle		Appelez-nous	-
13	WPW10408747		Holder, Sachet   (Replaces: W10408747)				$ 32.61
14	W10346771		Sachet Bag		Appelez-nous	-
15	W10257483		Shelf Assy		Appelez-nous	-
