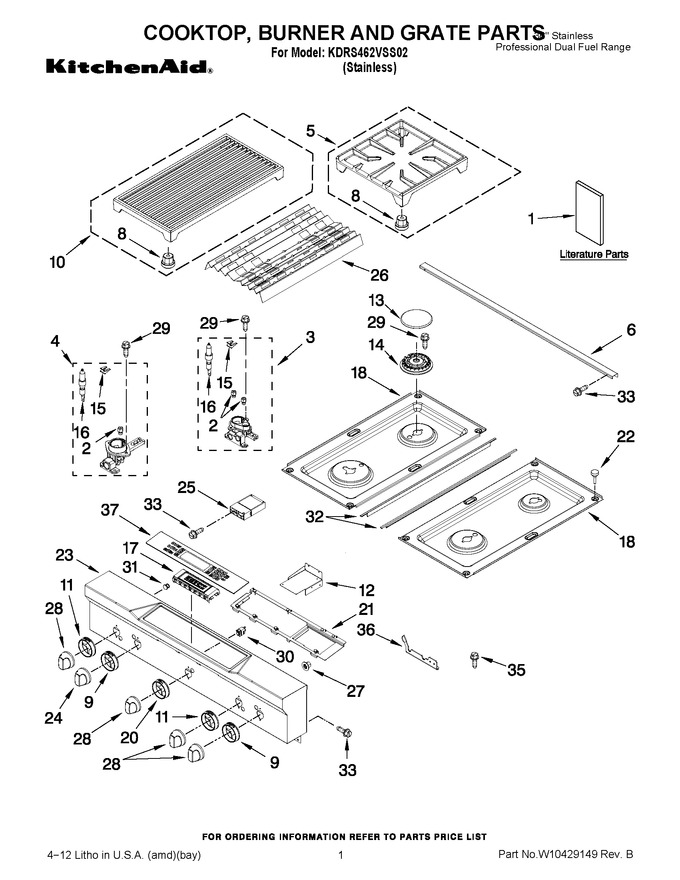

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Chassis Parts


04 - Top Venting Parts


05 - Oven Parts


06 - Oven Door Parts


07 - Internal Oven Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10403296		Tech Sheet (french)		Appelez-nous	-
1	W10403294		Tech Sheet (english)		Appelez-nous	-
1	W10399386		Use & Care Guide		Appelez-nous	-
1	W10394571		Installation Instructions		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
1	W10075750		Instr, Installer		Appelez-nous	-
1	9762761		Safer Cooking Tips (english		Appelez-nous	-
2	W10819958		Orifice (lf-low)   (Replaces: W10256132)				$ 97.77
2	W10340424		Orifice (lf-high)				$ 93.67
2	4456495		Orifice (grill)		Appelez-nous	-
2	W10791075		Orifice (rr)   (Replaces: W10282663)				$ 103.68
2	W11051480		Orifice (lr,rf)   (Replaces: W10364221)				$ 90.69
3	WPW10364555		Orifice Holder (dual - Lf)   (Replaces: W10364555)				$ 113.42
4	WPW10364556		Orifice Holder (lr,rf)   (Replaces: W10364556)				$ 102.39
4	W10282659		Orifice Holder (rr)				$ 40.50
5	WPW10115928		Grate, Burner   (Replaces: W10115928)				$ 201.41
6	W10269217		Trim, Island				$ 308.49
8	W10185266		Rubber, Foot   (Replaces: 8286695)			Immediately	$ 15.47
9	W10261510		Bezel, Front				$ 55.11
10	W11241676		Grate, Grill   (Replaces: W10221254)				$ 386.51
11	W10261512		Bezel, Rear		Appelez-nous	-
12	W10362907		Bracket, Spark Module		Appelez-nous	-
13	WPW10364463		Cap, Burner (rr)   (Replaces: W10364463)			Immediately	$ 55.85
13	WPW10256032		Cap, Burner (lr,rf)   (Replaces: W10256032)			Immediately	$ 88.38
13	WPW10256034		Cap, Burner (lf)   (Replaces: W10256034)				$ 138.19
14	WPW10256027		Base, Burner (rf,lr)   (Replaces: W10256027)			Immediately	$ 101.02
14	WPW10282515		Base, Burner (rr)   (Replaces: W10282515)			Immediately	$ 149.87
14	W11106799		Base, Burner (lf)   (Replaces: W10495853)			Immediately	$ 97.21
15	8286863		Spring, Electrode (rr)				$ 76.92
15	W10256046		Spring, Electrode (lf,lr,rf)				$ 11.56
16	W10833887		Electrode (lr,rf,lr)   (Replaces: W10256047)			Immediately	$ 50.65
16	W10146042		Electrode (rr)				$ 19.74
17	WPW10298119		Module, User Interface   (Replaces: W10298119)				$ 510.59
18	W10352968		Cooktop (right)				$ 337.26
18	W10352969		Cooktop (left)				$ 335.75
20	W10261514		Bezel, Grill		Appelez-nous	-
21	W10250476		Bracket, User Interface		Appelez-nous	-
22	4448520		Bumper				$ 22.25
23	W10284669		Panel, Control		Appelez-nous	-
24	W11244176		Knob, Control (dual - Lf)   (Replaces: W10250389)				$ 78.37
25	WPW10475147		Module, Spark   (Replaces: 7431P038-60)			Immediately	$ 385.00
26	W10250469		Wave, Tray				$ 255.60
27	7103P166-60		Nut, Hex				$ 18.56
28	W11177673		Knob, Control   (Replaces: W10250391)				$ 90.55
29	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 7.55
30	W10116114		Light, Indicator Housing			Immediately	$ 93.57
31	W10116115		Lens, Indicator Light				$ 7.86
32	W10291193		Trim		Appelez-nous	-
33	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.72
35	WP74003976		Screw   (Replaces: 7101P500-60)				$ 7.55
36	W10130759		Bracket,console (right)				$ 75.94
36	W10130760		Bracket,console (left)				$ 75.94
37	WPW10116104		Keypad   (Replaces: W10116104)			Immediately	$ 372.51
