SELECT A DIAGRAM

01 - Top And Console Parts

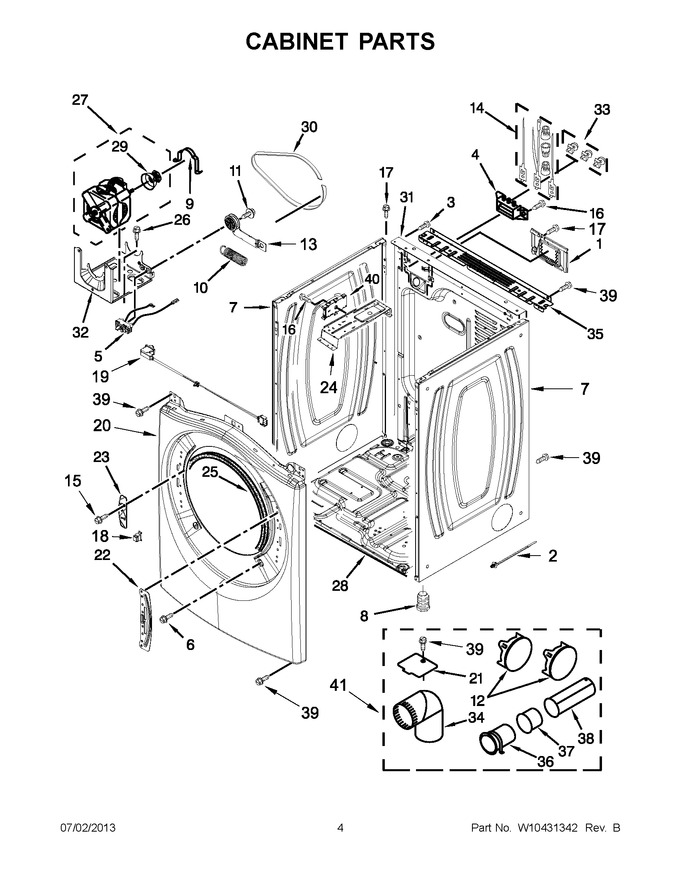

02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10316167		Cover, Terminal Block   (Replaces: W10316167)				$ 99.09
2	WPW10339879		Cable Tie   (Replaces: W10267532)				$ 7.90
3	W10850756		Screw   (Replaces: 8533974)				$ 7.76
4	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 23.02
5	W10847984		Switch, Broken Belt   (Replaces: W10411936)			Immediately	$ 26.90
6	WP308685		Screw   (Replaces: 3357011)			Immediately	$ 7.87
7	WPW10468499		Panel, Side (silver)   (Replaces: W10468499)				$ 333.78
7	W11233548		Panel, Side (white)   (Replaces: W10468495)				$ 248.89
7	W10468502		Panel, Side (red)				$ 149.30
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WPW10121316		Clamp, Motor Mount   (Replaces: W10121316)			Immediately	$ 25.68
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 24.57
11	WP3389420		Screw   (Replaces: 3389420)				$ 8.02
12	WPW10404617		Plug, Multivent (midnight Grey)   (Replaces: W10151499)				$ 71.98
13	W10837240		Assembly, Idler   (Replaces: W10547287)			Immediately	$ 35.78
14	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 100.99
15	W11661566		Screw   (Replaces: W10288126)				$ 14.03
16	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.82
17	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.87
18	W11240283		Assembly, Spring Catch   (Replaces: W10208401)			Immediately	$ 28.04
19	W10267834		Door Switch Assembly				$ 50.06
20	W10208192		Front Panel (white)		Appelez-nous	-
20	W10316296		Front Panel (silver)				$ 154.40
20	W10337783		Front Panel (red)				$ 350.34
21	WPW10354249		Plate, Cover   (Replaces: 8066115)				$ 8.96
22	W10208218		Bracket, Door Hinge				$ 15.16
23	WPW10208250		Strike, Door   (Replaces: W10208250)				$ 41.77
24	W10259611		Bracket, Control				$ 127.30
25	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
26	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.85
27	279787		Assembly, Motor   (Replaces: W10396028)			Immediately	$ 235.65
28	W11215531		Base, Cabinet   (Replaces: 8565046)				$ 347.96
29	W10837625		Pulley, Motor   (Replaces: W10460106)			Immediately	$ 12.16
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 32.81
31	W10487430		Panel, Rear			Immediately	$ 340.11
32	W11481730		Bracket, Motor Mounting   (Replaces: W10242878)			Immediately	$ 87.83
33	279393		Screw Kit, Terminal Block			Immediately	$ 47.37
34	WPW10416072		Elbow   (Replaces: 49026)				$ 26.82
35	WPW10208382		Bracket, Rear   (Replaces: W10208382)				$ 41.56
36	WP8563747		Pipe, Exhaust (medium)   (Replaces: 8563747)				$ 91.38
37	WPW10331278		Pipe, Exhaust (short)   (Replaces: 8563750)				$ 78.95
38	WP8563749		Pipe, Exhaust (long)   (Replaces: 8563749)				$ 88.80
39	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.79
40	W10845086		Control Board   (Replaces: W10410008)			Immediately	$ 362.81
41	WPW10131132		Dryer Exhaust Kit (for Side & Bottom Venting) (midnight Grey)   (Replaces: W10331132)				$ 72.20
NI	49621		Foot, Optional Extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55

    View Diagram in Separate Window       Print Part List
