SELECT A DIAGRAM

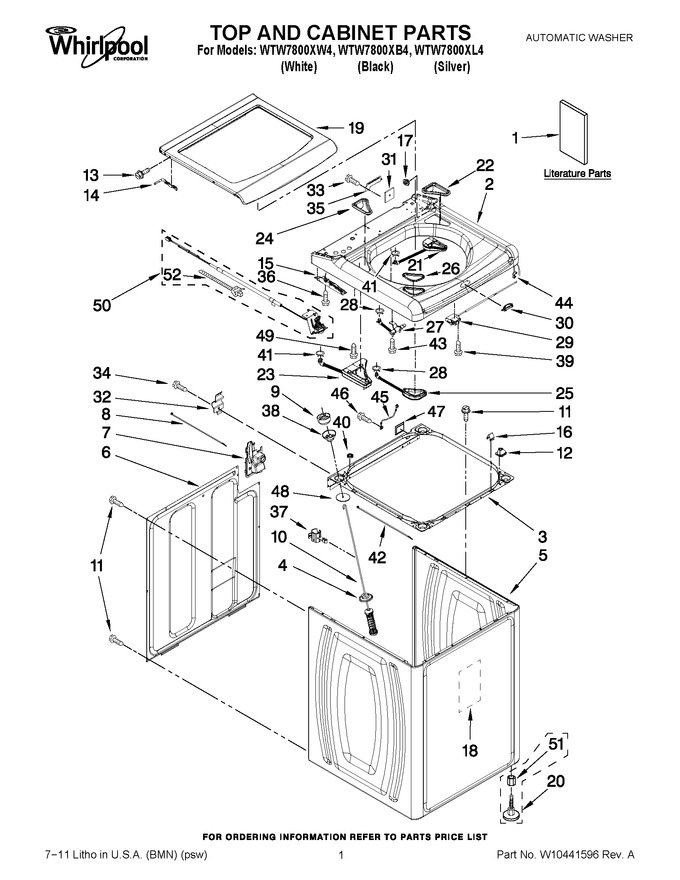

01 - Top And Cabinet Parts


02 - Control Panel Parts


03 - Motor, Basket And Tub Parts


04 - Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10240438		Installation Instructions (english/french)		Appelez-nous	-
1	W10385943		Energy Guide		Appelez-nous	-
1	W10338694		Tech Sheet		Appelez-nous	-
1	W10420499		Use & Care Guide		Appelez-nous	-
1	W10240439		Installation Instructions (spanish)		Appelez-nous	-
2	W10298630		Top (silver)				$ 140.52
2	WP3957177		Top (white)   (Replaces: 3957177)				$ 355.79
2	W10298629		Top (black)				$ 161.67
3	W10162604		Frame Assembly, Cabinet Top (includes Item 47)		Appelez-nous	-
4	WP8564017		Cup, Suspension   (Replaces: 8564017)				$ 27.42
5	W10045598		Cabinet (black)		Appelez-nous	-
5	W10093798		Cabinet (silver)		Appelez-nous	-
5	8566097		Cabinet (white)		Appelez-nous	-
6	8566090		Panel, Rear				$ 131.63
7	WPW10160572		Retainer, Drain Hose Storage   (Replaces: W10160572)				$ 8.17
8	WPW10155270		Cable Tie   (Replaces: W10155270)				$ 6.17
9	W10198919		Ball, Suspension (set Of 4 - Includes Item 38)   (Replaces: W10111536)				$ 143.71
10	W10247710		Damper Assembly, Tub Suspension (set Of 4-includes Items 4, 9, 38 & 48)   (Replaces: W10237427)			Immediately	$ 185.21
11	WP489069		Screw, 8-18 X 3/8   (Replaces: 1157158)			Immediately	$ 7.86
12	W10042120		Locator, Top				$ 7.04
13	W11404293		Screw, Lid Hinge Mounting   (Replaces: W10339706)			Immediately	$ 14.04
14	WP8572974		Hinge Wire (right Hand)   (Replaces: 8572974)			Immediately	$ 29.05
14	WP8563965		Hinge Wire (left Hand)   (Replaces: 8563965)			Immediately	$ 29.44
15	W10305275		Hinge, Spring Assembly (left Hand)				$ 57.84
15	WPW10305276		Hinge, Spring Assembly (right Hand)   (Replaces: W10305276)				$ 140.55
16	WP8563785		Lock, Top Front   (Replaces: 8563785)				$ 7.58
17	WP8546627		Bearing, Lid Hinge   (Replaces: 8546627)				$ 90.24
18	W11096159		Cabinet, Damper Sound   (Replaces: W10414221)				$ 27.36
19	W10349235		Lid, Glass Assembly (white)				$ 294.16
19	W10349135		Lid, Glass Assembly (black)				$ 178.51
19	W10349136		Lid, Glass Assembly (silver)				$ 302.74
20	W10240448		Foot Assembly, Leveling				$ 5.85
21	WPW10172146		Dispenser, Fabric Softener   (Replaces: W10172146)				$ 163.28
22	W10306027		Bezel, Fabric Softener Dispenser (elephant)				$ 22.47
22	WPW10136371		Bezel, Fabric Softener Dispenser (white)   (Replaces: W10136371)				$ 29.52
23	WPW10187307		Dispenser, Stain Remover   (Replaces: W10187307)			Immediately	$ 147.52
24	W10306029		Bezel, Stain Remover Dispenser (elephant)				$ 28.57
24	WPW10131523		Bezel, Stain Remover Dispenser (white)   (Replaces: W10131523)				$ 8.13
25	WPW10172154		Dispenser, Detergent   (Replaces: W10172154)			Immediately	$ 163.19
26	WP8563877		Bezel, Detergent Dispenser (white)   (Replaces: 8563877)				$ 30.39
26	W10306028		Bezel, Detergent Dispenser (elephant)				$ 14.72
27	WPW10106990		Nozzle Assembly, Fresh Water   (Replaces: W10106990)				$ 101.97
28	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 8.40
29	WPW10619844		Lock Assembly, Lid   (Replaces: W10059230)			Immediately	$ 143.05
30	8572019		Bezel, Lid Lock (white)				$ 39.65
30	W10143661		Bezel, Lid Lock (elephant)				$ 20.76
30	W10052520		Bezel, Lid Lock (black)				$ 7.78
31	W10161707		Top, Foam Seal		Appelez-nous	-
32	WP8564456		Hinge, Top   (Replaces: 8564456)				$ 91.44
33	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
34	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
35	8563941		Cover, Harness				$ 83.55
36	WP693995		Screw, 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.19
37	8543784		Bracket, Drain Hose				$ 37.38
38	W10198919		Bushing, Suspension (set Of 4-includes Item 9)   (Replaces: W10167599)				$ 143.71
39	WP8281136		Screw, 10-16 X 3/4   (Replaces: 8281136)				$ 6.95
40	8576476		Spacer, Rear (cabinet/top)				$ 16.73
41	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 8.40
42	WPW10339879		Cable Tie   (Replaces: W10063340)				$ 7.90
43	W11700520		Screw, 10-16 X 9/16   (Replaces: 3400061)				$ 13.60
44	WP90016		Clip, Harness   (Replaces: 90016)				$ 11.32
45	3184020		Wire, Ground Jumper   (Replaces: 8281736)				$ 82.78
46	W10846509		Screw, 10-32 X 5/8   (Replaces: 3400076)			Immediately	$ 7.76
47	8578386		Shield, Wire Harness		Appelez-nous	-
48	WP8577896		Washer, Suspension Umbrella   (Replaces: 8577896)				$ 7.73
49	WP693995		Screw, 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.19
50	WPW10341737		Module, Led   (Replaces: W10341737)				$ 139.10
51	3400917		Nut, Lock				$ 8.78
52	WP3391018		Cable-tie   (Replaces: 3391018)				$ 31.84

    View Diagram in Separate Window       Print Part List
