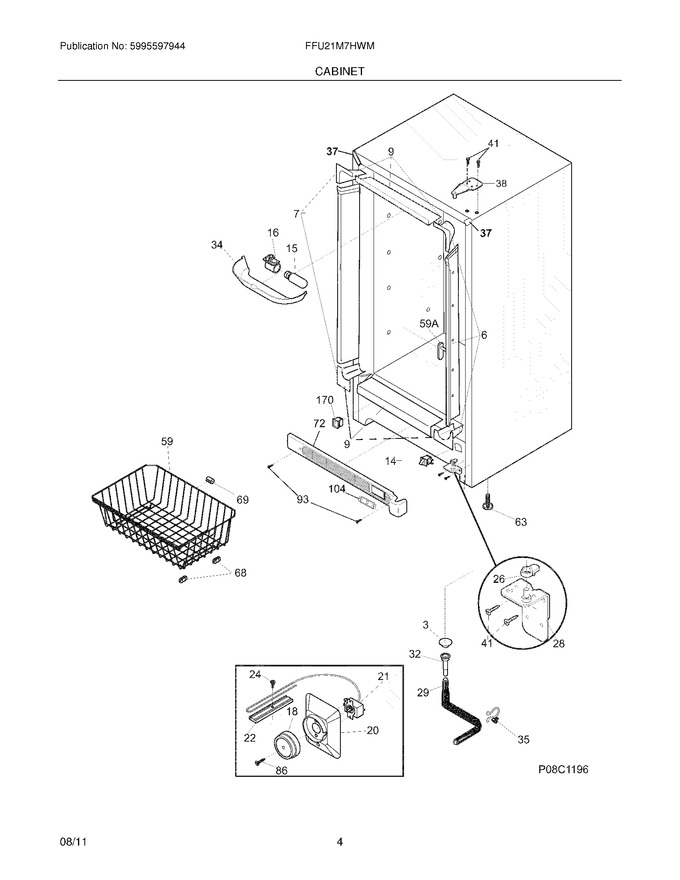

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 216502600 | Plug-drain,interior |
|
Immediately | $ 19.28 | ||||
| 6 | 297200900 | Breaker Kit W/corners |
|
Immediately | $ 78.72 | ||||
| 7 | 297201100 | Breaker Kit W/corners,lock Catch |
|
$ 89.57 | |||||
| 9 | 297200100 | Breaker Kit W/corners,32`` ,top And Bottom |
|
$ 65.87 | |||||
| 14 | 216822900 | Switch,light/lamp ,ramp |
|
Immediately | $ 77.96 | ||||
| 15 | 5304517886 | Light Bulb/lamp (Replaces: 216846400) |
|
Immediately | $ 81.18 | ||||
| 16 | 297139501 | Socket,light/lamp ,25 W |
|
$ 21.69 | |||||
| 18 | 216707200 | Knob,temp Control |
|
$ 49.00 | |||||
| 20 | 297013800 | Cover-control Housing |
|
$ 80.43 | |||||
| 22 | 216823500 | Clamp, Cap Tube, Cold Control |
|
$ 15.27 | |||||
| 24 | 5304460604 | Screw,type A ,10-24 X 3/8 |
|
- | |||||
| 26 | 216503300 | Ramp,door Closer |
|
$ 9.80 | |||||
| 28 | 297283900 | Hinge-bottom,stepped Pin |
|
Immediately | $ 60.25 | ||||
| 29 | 5304510363 | Hose-drain (Replaces: 216313502) |
|
$ 15.27 | |||||
| 32 | 5304511843 | Drain (Replaces: 5308005500) |
|
$ 15.27 | |||||
| 34 | 297184400 | Shield-light |
|
$ 21.16 | |||||
| 35 | 216273000 | Clip,wire Retainer |
|
$ 24.91 | |||||
| 37 | 297273904 | Trim-cabinet Corner,white ,(2) (Replaces: 297273900) |
|
$ 8.43 | |||||
| 38 | 297283803 | Hinge-upper (Replaces: 297283800) |
|
Immediately | $ 21.69 | ||||
| 41 | 240578902 | Screw,hex Head ,1/4-20x5/8 ,hinge ,(4) (Replaces: 297236250) |
|
Immediately | $ 15.75 | ||||
| 59 | 5304497658 | Basket,bottom (Replaces: 297343600) |
|
$ 130.94 | |||||
| 63 | 216396900 | Screw, Leveling Foot, Plastic, Adjustable |
|
Immediately | $ 42.65 | ||||
| 68 | 08009560 | Glide, Basket |
|
$ 39.17 | |||||
| 69 | 5305878546 | Bumper, Basket |
|
$ 8.03 | |||||
| 72 | 297036902 | Grille/kickplate,32`` ,white |
|
$ 40.26 | |||||
| 86 | 216036601 | Screw,rwhd ,8-32a X 0.500 ,gx-ca |
|
$ 15.17 | |||||
| 93 | 216858001 | Screw,ph Truss Head ,8-18ab X 0.500 (Replaces: 5304460605) |
|
Immediately | $ 12.05 | ||||
| 104 | 216948401 | Light,signal,assy W/bracket |
|
$ 55.24 | |||||
| 170 | 297280400 | Valve,breather |
|
$ 11.25 | |||||
| 59A | 216486500 | Stop-basket,(2) |
|
$ 20.58 | |||||
| F104 | 216926700 | Shield |
|
$ 42.06 | |||||
| F21 | 297216004 | Control-temperature (Replaces: 216788100) |
|
Immediately | $ 59.47 | ||||
| NI | 297164651 | Bracket,rh Leg Levelor |
|
$ 17.51 | |||||
| NI | 297164650 | Bracket,lh Leg Levelor |
|
$ 18.43 | |||||
| NI | 216795110 | Energy Guide |
|
- | |||||
| NI | 125963-48 | Insulation,24`` ,drain Tube (Replaces: 297001704) |
|
Immediately | $ 65.73 | ||||
| NI | 241500305 | Screw, Self Pierce,no.8 ,18x.63 (Replaces: 297174300) |
|
$ 3.37 |
