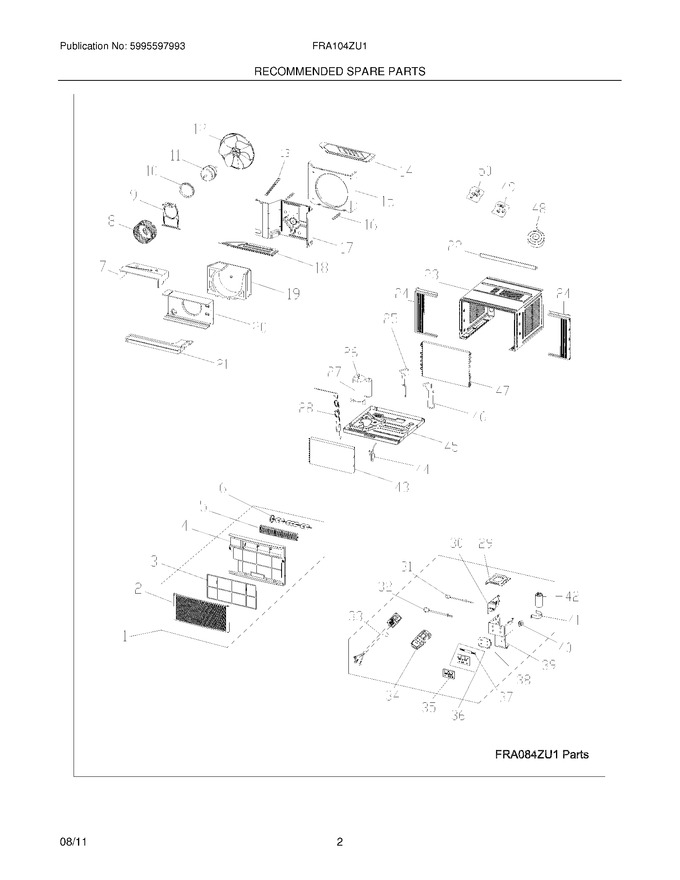

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304484638		Panel,front Grille ,tilt-out		Appelez-nous	-
4	5304484639		Frame,front Assembly		Appelez-nous	-
7	5304471281		Cover,scroll ,top		Appelez-nous	-
9	5304471285		Bracket,support ,fan Motor		Appelez-nous	-
10	5304471286		Washer,motor Mount ,anti-vibe		Appelez-nous	-
13	5304471254		Brace,bulkhead ,large ,connector		Appelez-nous	-
14	5304471288		Cover,condenser/fan ,rear		Appelez-nous	-
15	5304476387		Bulkhead,partition ,rear		Appelez-nous	-
16	5304471253		Brace,bulkhead ,small ,connector		Appelez-nous	-
17	5304471248		Bulkhead,partition ,front		Appelez-nous	-
18	5304476388		Cover,blower ,front		Appelez-nous	-
19	5304471247		Scroll,blower Housing ,rear		Appelez-nous	-
20	5304476389		Scroll,blower Housing ,front		Appelez-nous	-
21	5304471265		Tray,drip Pan		Appelez-nous	-
22	5304471255		Rail,shutter Track ,top		Appelez-nous	-
23	5304483402		Cabinet,wrapper/sleeve		Appelez-nous	-
24	5304471252		Window Filler Kit,slider Panels		Appelez-nous	-
29	5304476396		Cover,control Box		Appelez-nous	-
38	5304471271		Cover,display Board		Appelez-nous	-
39	5304476399		Control Box		Appelez-nous	-
41	5304477345		Strap,capacitor Clamp		Appelez-nous	-
45	5304484650		Base,unit Chassis		Appelez-nous	-
48	5304471258		Seal Kit,window ,foam Strips		Appelez-nous	-
49	5304471257		Hardware Kit,installation		Appelez-nous	-
50	5304471256		Screw Kit,top Rail Mount		Appelez-nous	-
F1	5304484637		Front Assembly,complete Panel		Appelez-nous	-
F11	5304471284		Motor,fan		Appelez-nous	-
F12	5304517031		Fan Blade   (Replaces: 5304471287)		Appelez-nous	-
F25	5304484654		Tube,suction		Appelez-nous	-
F26	5304476293		Overload Protector,compressor		Appelez-nous	-
F27	5304476056		Compressor,with Overload		Appelez-nous	-
F28	5304484655		Tube,capillary		Appelez-nous	-
F3	5304471242		Filter,air		Appelez-nous	-
F30	5304482529		Pc Board,control/power ,main		Appelez-nous	-
F31	5304471276		Sensor,temperature ,ambient				$ 33.88
F32	5304521225		Sensor,evap Temp ,thermistor   (Replaces: 5304471275)		Appelez-nous	-
F33	5304484656		Power Cord,electric ,lcdi				$ 212.36
F34	5304476904		Remote Control,transmitter				$ 104.94
F35	5304484644		Control Panel,with Overlay		Appelez-nous	-
F36	5304471270		Pc Board,display/input		Appelez-nous	-
F37	5304482531		Wire,connector ,pc Boards		Appelez-nous	-
F40	5304470989		Transformer				$ 94.98
F42	5304476003		Capacitor		Appelez-nous	-
F43	5304484657		Evaporator,+capillary Tube		Appelez-nous	-
F44	5304476367		Drier-filter				$ 45.55
F46	5304484658		Tube,discharge		Appelez-nous	-
F47	5304484659		Condenser		Appelez-nous	-
F5	5304471244		Louver,horizontal		Appelez-nous	-
F6	5304484640		Louver,vertical		Appelez-nous	-
F8	5304471283		Blower Wheel,centrifugal Fan		Appelez-nous	-
