View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover

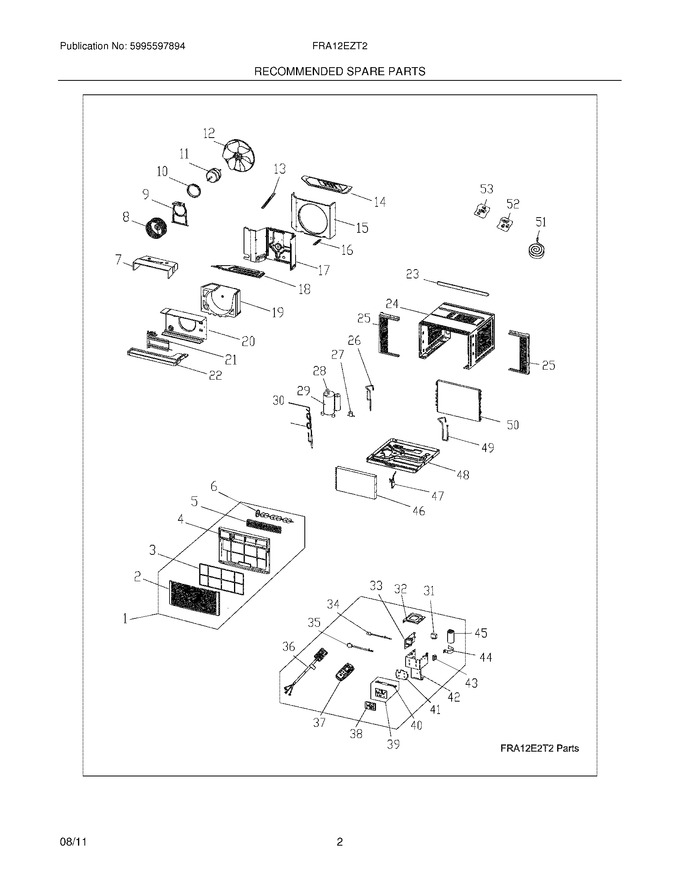

03 - Recommended Spare Parts
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304471241 | Panel,front Grille ,tilt-out |
|
$ 36.59 | |||||
| 4 | 5304471243 | Frame,front Assembly |
|
- | |||||
| 7 | 5304471311 | Cover,scroll ,top |
|
- | |||||
| 9 | 5304471285 | Bracket,support ,fan Motor |
|
- | |||||
| 10 | 5304471286 | Washer,motor Mount ,anti-vibe |
|
- | |||||
| 13 | 5304471254 | Brace,bulkhead ,large ,connector |
|
- | |||||
| 14 | 5304471288 | Cover,condenser/fan ,rear |
|
- | |||||
| 15 | 5304476387 | Bulkhead,partition ,rear |
|
- | |||||
| 16 | 5304471253 | Brace,bulkhead ,small ,connector |
|
- | |||||
| 17 | 5304471248 | Bulkhead,partition ,front |
|
- | |||||
| 18 | 5304476388 | Cover,blower ,front |
|
- | |||||
| 19 | 5304471301 | Scroll,blower Housing ,rear |
|
- | |||||
| 20 | 5304476389 | Scroll,blower Housing ,front |
|
- | |||||
| 22 | 5304471265 | Tray,drip Pan |
|
- | |||||
| 23 | 5304471255 | Rail,shutter Track ,top |
|
- | |||||
| 24 | 5304483402 | Cabinet,wrapper/sleeve |
|
- | |||||
| 25 | 5304471252 | Window Filler Kit,slider Panels |
|
- | |||||
| 32 | 5304476396 | Cover,control Box |
|
- | |||||
| 41 | 5304471271 | Cover,display Board |
|
- | |||||
| 42 | 5304476399 | Control Box |
|
- | |||||
| 44 | 5304476400 | Strap,capacitor Clamp |
|
- | |||||
| 48 | 5304477351 | Base,unit Chassis |
|
- | |||||
| 51 | 5304471258 | Seal Kit,window ,foam Strips |
|
- | |||||
| 52 | 5304471257 | Hardware Kit,installation |
|
- | |||||
| 53 | 5304471256 | Screw Kit,top Rail Mount |
|
- | |||||
| F1 | 5304471240 | Front Assembly,complete Panel |
|
$ 190.38 | |||||
| F11 | 5304483231 | Fan Motor |
|
- | |||||
| F12 | 5304517031 | Fan Blade (Replaces: 5304471287) |
|
- | |||||
| F21 | 5304521227 | Heater,electric (Replaces: 5304476390) |
|
- | |||||
| F26 | 5304476394 | Tube,suction |
|
- | |||||
| F27 | 5304476323 | Valve,drain |
|
- | |||||
| F28 | 5304476298 | Overload Protector,compressor |
|
- | |||||
| F29 | 5304475747 | Compressor,with Overload |
|
- | |||||
| F3 | 5304471242 | Filter,air |
|
- | |||||
| F30 | 5304476395 | Tube,capillary |
|
- | |||||
| F31 | 5304512430 | Capacitor,fan Motor (Replaces: 5304471077) |
|
- | |||||
| F33 | 5304476397 | Pc Board,main ,control/power |
|
- | |||||
| F34 | 5304471276 | Sensor,temperature ,ambient |
|
$ 33.88 | |||||
| F35 | 5304512375 | Sensor,temperature ,evaporator (Replaces: 5304471383) |
|
$ 33.16 | |||||
| F36 | 5304477196 | Power Cord,lcdi ,test/reset |
|
- | |||||
| F37 | 5304476631 | Remote Control,transmitter |
|
- | |||||
| F38 | 5304477344 | Control Panel,with Overlay |
|
- | |||||
| F39 | 5304471308 | Pc Board,display/input |
|
- | |||||
| F40 | 5304482531 | Wire,connector ,pc Boards |
|
- | |||||
| F43 | 5304535831 | Transformer (Replaces: 5304471063) |
|
- | |||||
| F45 | 5304475748 | Capacitor |
|
- | |||||
| F46 | 5304476401 | Evaporator,with Cap Tube |
|
- | |||||
| F47 | 5304476367 | Drier-filter |
|
$ 45.55 | |||||
| F49 | 5304476403 | Tube,discharge |
|
- | |||||
| F5 | 5304471244 | Louver,horizontal |
|
- | |||||
| F50 | 5304476404 | Condenser |
|
- | |||||
| F6 | 5304471245 | Louver,vertical |
|
- | |||||
| F8 | 5304471312 | Blower Wheel,centrifugal Fan |
|
- |
