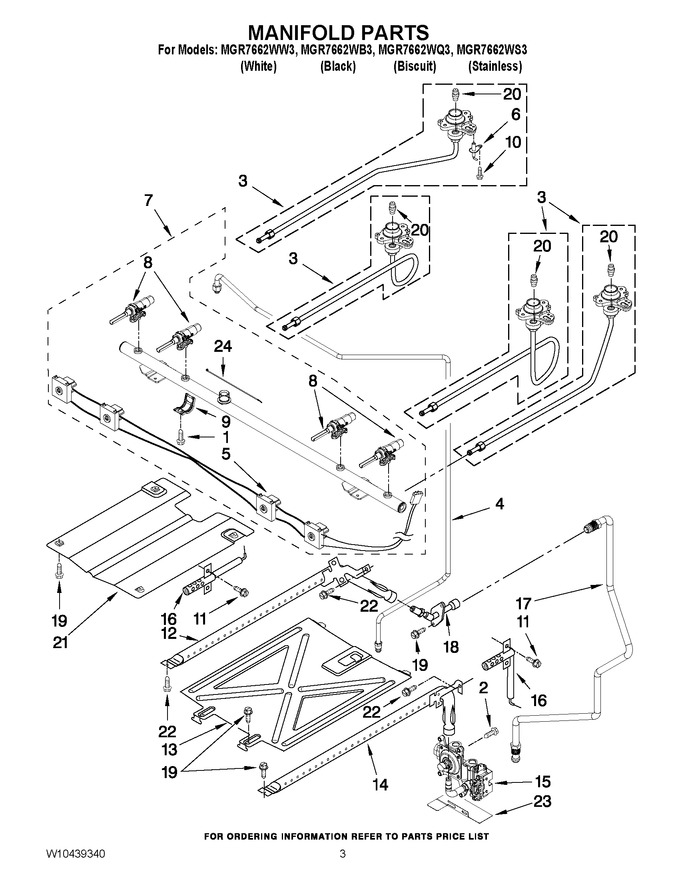

03 - Manifold Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10295997 | Screw, Valve |
|
$ 7.32 | |||||
| 2 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 8.39 | |||||
| 3 | W10175217 | Tubing, Burner W/orifice (right Rear) |
|
$ 45.79 | |||||
| 3 | W10175218 | Tubing, Burner W/orifice (right Front) |
|
$ 111.80 | |||||
| 3 | W10175220 | Tubing, Burner W/orifice (left Rear) |
|
$ 52.19 | |||||
| 3 | WPW10201349 | Tubing, Burner W/orifice (left Front) (Replaces: W10201349) |
|
$ 118.20 | |||||
| 4 | W11680399 | Gas Tubing (cooktop Supply) (Replaces: W10215439) |
|
$ 159.35 | |||||
| 5 | WPW10295998 | Harness, Ignitor (w/switches) (Replaces: W10295998) |
|
$ 228.23 | |||||
| 6 | WPW10216419 | Electrode (Replaces: W10216419) |
|
Immediately | $ 36.72 | ||||
| 7 | W10314242 | Assembly, Manifold |
|
$ 328.05 | |||||
| 8 | WPW10247744 | Valve (right Rear) (Replaces: W10247744) |
|
$ 280.12 | |||||
| 8 | WPW10279614 | Valve (lf - Rf - Lr) (Replaces: W10279614) |
|
$ 279.81 | |||||
| 9 | W10949105 | Bracket, Valve (Replaces: W10295996) |
|
$ 22.75 | |||||
| 10 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.91 | ||||
| 11 | W11684507 | Screw (Replaces: 3196385) |
|
$ 14.27 | |||||
| 12 | WP8054078 | Burner, Broiler (Replaces: 8054078) |
|
Immediately | $ 239.36 | ||||
| 13 | WPW10184491 | Spreader, Flame (oven) (Replaces: W10184491) |
|
$ 253.52 | |||||
| 14 | WP9758078 | Burner, Bake (Replaces: 9758078) |
|
$ 226.07 | |||||
| 15 | WPW10602001 | Valve/regulator (Replaces: W10224914) |
|
Immediately | $ 340.97 | ||||
| 16 | WP9758079 | Igniter (bake) (Replaces: 9758079) |
|
Immediately | $ 41.01 | ||||
| 16 | WP8054129 | Igniter (broil) (Replaces: 8054129) |
|
Immediately | $ 137.14 | ||||
| 17 | W10420040 | Gas Tubing (broiler Supply) |
|
$ 194.54 | |||||
| 18 | W10340259 | Fitting, Broiler |
|
- | |||||
| 19 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.72 | ||||
| 20 | WPW10170506 | Orifice, Burner (rr - 5k) (Replaces: W10170506) |
|
$ 97.85 | |||||
| 20 | WPW10170508 | Orifice, Burner (lr - 9.5k) (Replaces: W10170508) |
|
$ 95.21 | |||||
| 20 | W10178934 | Orifice, Burner (rf - 12k) |
|
Immediately | $ 103.60 | ||||
| 20 | WPW10185023 | Orifice, Burner (lf - 13.5k) (Replaces: W10185023) |
|
$ 94.06 | |||||
| 21 | W10137062 | Spreader, Flame (broiler) |
|
- | |||||
| 22 | 3196265 | Screw |
|
- | |||||
| 23 | W10224921 | Bracket - Aegis |
|
- | |||||
| 24 | WPW10182767 | Cable Tie (Replaces: W10182767) |
|
$ 7.30 | |||||
| NI | W10170532 | Spuds, Lp Gas (kit Of 4) |
|
$ 44.51 |
