01 - Top And Cabinet Parts
02 - Controls And Water Inlet Parts

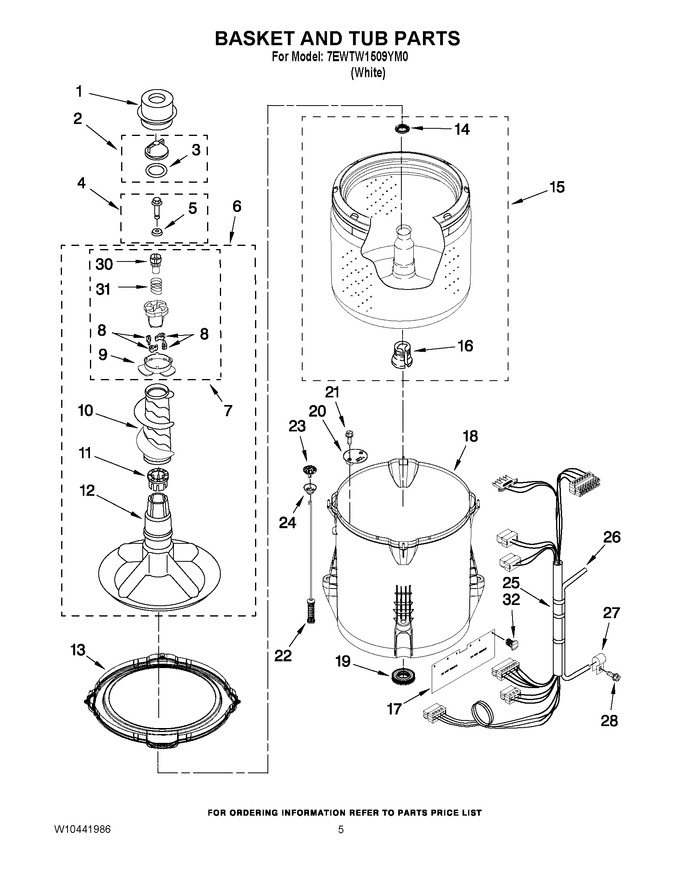

03 - Basket And Tub Parts
04 - Gearcase, Motor And Pump Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8580006 | Dispenser, Fabric Softener (Replaces: 8580006) |
|
$ 76.40 | |||||
| 2 | WPW10074580 | Cap, Barrier (Replaces: 3354733) |
|
Immediately | $ 12.40 | ||||
| 3 | WPW10072840 | Seal, Inner Cap (Replaces: W10072840) |
|
Immediately | $ 8.72 | ||||
| 4 | W10772621 | Screw & Washer Assembly (Replaces: W10003790) |
|
Immediately | $ 5.24 | ||||
| 5 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 11.09 | ||||
| 6 | WP8578210 | Agitator, Complete Assembly (Replaces: 8578210) |
|
$ 263.09 | |||||
| 7 | WP8537434 | Cam, Driven (Replaces: 8537434) |
|
$ 94.37 | |||||
| 8 | 80040 | Dog, Agitator Clutch (Replaces: 3366877) |
|
Immediately | $ 3.64 | ||||
| 9 | WP8055141 | Bearing, Cam (Replaces: 8055141) |
|
Immediately | $ 7.74 | ||||
| 10 | WP8054468 | Clothes Mover (Replaces: 8054468) |
|
$ 263.05 | |||||
| 11 | WP8055228 | Spacer, Thrust (Replaces: 8055228) |
|
$ 18.98 | |||||
| 12 | WP8578209 | Agitator (Replaces: 8578209) |
|
$ 266.90 | |||||
| 13 | WPW10215108 | Ring, Tub (Replaces: W10215108) |
|
$ 202.17 | |||||
| 14 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 8.89 | ||||
| 15 | W10349185 | Basket Assembly (Replaces: W10358261) |
|
$ 370.80 | |||||
| 16 | WP389140 | Block, Basket Drive (Replaces: 389140) |
|
Immediately | $ 27.49 | ||||
| 17 | W10339098 | Shield, Splash |
|
$ 24.62 | |||||
| 18 | W10371566 | Tub (includes Item 19) (Replaces: W10238320) |
|
$ 339.37 | |||||
| 19 | W10324647 | Seal, Tub (Replaces: W10006371) |
|
Immediately | $ 93.50 | ||||
| 20 | WPW10215093 | Filter, Drain Pump (Replaces: W10215093) |
|
$ 62.15 | |||||
| 21 | WP8533928 | Screw 8-18 X 3/4 (Replaces: 8533928) |
|
Immediately | $ 7.82 | ||||
| 22 | W10780048 | Damper Assembly, Tub Suspension (set Of 4-includes Items 23 & 24) (Replaces: W10257088) |
|
Immediately | $ 88.83 | ||||
| 23 | W10215136 | Ball, Suspension (set Of 4 - Includes Item 24) |
|
- | |||||
| 24 | W10256551 | Bushing, Suspension (set Of 4 - Includes Item 23) |
|
- | |||||
| 25 | W10297444 | Harness, Lower (includes Items 26 & 29) |
|
$ 119.93 | |||||
| 26 | WPW10268911 | Hose, Pressure Switch (Replaces: W10268911) |
|
Immediately | $ 181.57 | ||||
| 27 | W10005430 | Clamp, Pressure Hose Retainer |
|
Immediately | $ 9.08 | ||||
| 28 | WPW10109200 | Screw, 10-16 X 3/4 (Replaces: 8533943) |
|
Immediately | $ 8.00 | ||||
| 30 | WP8533540 | Retainer, Spring (Replaces: 8533540) |
|
$ 7.85 | |||||
| 31 | WP8055140 | Spring, Compression (Replaces: 8055140) |
|
$ 26.39 | |||||
| 32 | W10273613 | Retainer, Push In |
|
- |
