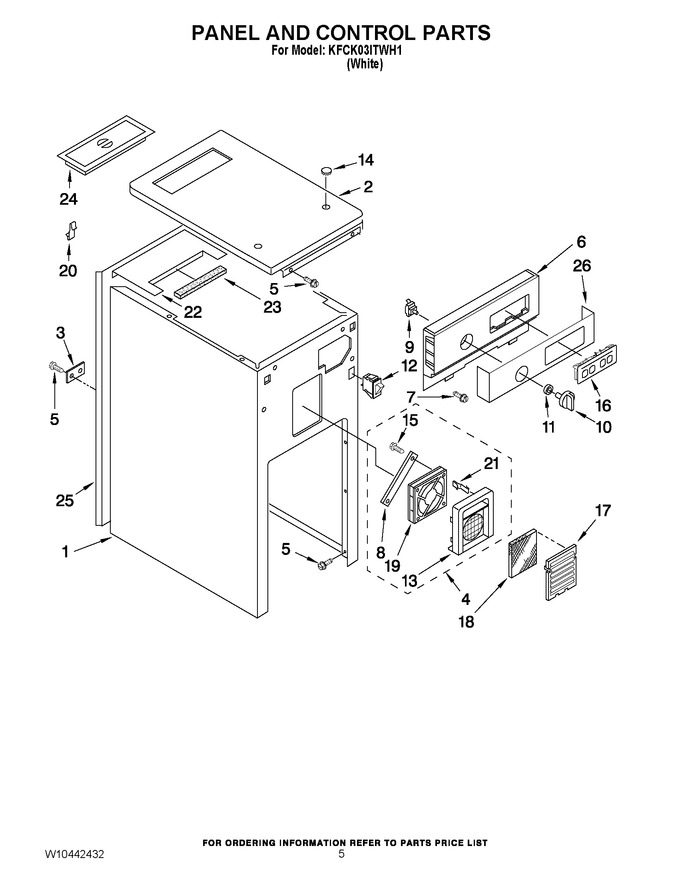

05 - Panel And Control Parts
06 - Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP9870913 | Cabinet (white) (Replaces: 9870913) |
|
$ 298.34 | |||||
| 2 | 9871075 | Top, Cabinet (white) |
|
- | |||||
| 3 | 775676 | Plate, Power Cord |
|
- | |||||
| 4 | 9871893 | Fan Mount Assembly |
|
$ 348.34 | |||||
| 5 | WP489478 | Screw (Replaces: W10001260) |
|
$ 8.18 | |||||
| 6 | 9871746 | Escutcheon, Control (white) |
|
- | |||||
| 7 | 246131 | Screw |
|
- | |||||
| 8 | 4152703 | Strap, Fan |
|
$ 75.32 | |||||
| 9 | 675382 | Switch, Rotary Start-run (Replaces: 608824) |
|
$ 246.48 | |||||
| 10 | WP9871799 | Knob, Rotary Switch (white) (Replaces: 9871799) |
|
$ 67.23 | |||||
| 11 | WP777383 | Nut, Rotary Switch (Replaces: 777383) |
|
$ 12.83 | |||||
| 12 | WP4387911 | Switch, Drawer (Replaces: 4152058) |
|
Immediately | $ 41.64 | ||||
| 13 | 9871893 | Compartment, Air Freshener (Replaces: 4151442) |
|
$ 348.34 | |||||
| 14 | 4151479 | Plug, Hole (white) |
|
- | |||||
| 15 | WP3351614 | Screw (Replaces: 780034) |
|
Immediately | $ 7.30 | ||||
| 16 | 9872326W | Switch Assembly (white) |
|
- | |||||
| 17 | 9870911 | Cover, Air Freshener (white) |
|
$ 49.04 | |||||
| 18 | WP4151750 | Filter, Charcoal (Replaces: 4151750) |
|
$ 18.60 | |||||
| 19 | 9871893 | Fan, Filter (Replaces: 9871051) |
|
$ 348.34 | |||||
| 20 | 4151897 | Clip, Wire |
|
$ 7.40 | |||||
| 21 | 4151897 | S-clip |
|
$ 7.40 | |||||
| 22 | 608681 | Plate, Bag Storage |
|
- | |||||
| 23 | 776780 | Barrier, Glass |
|
- | |||||
| 24 | 608686 | Lid, Bag Storage |
|
- | |||||
| 25 | 9870863 | Panel, Back |
|
- | |||||
| 26 | 9872198W | Insert, Escutcheon (white) |
|
- |
