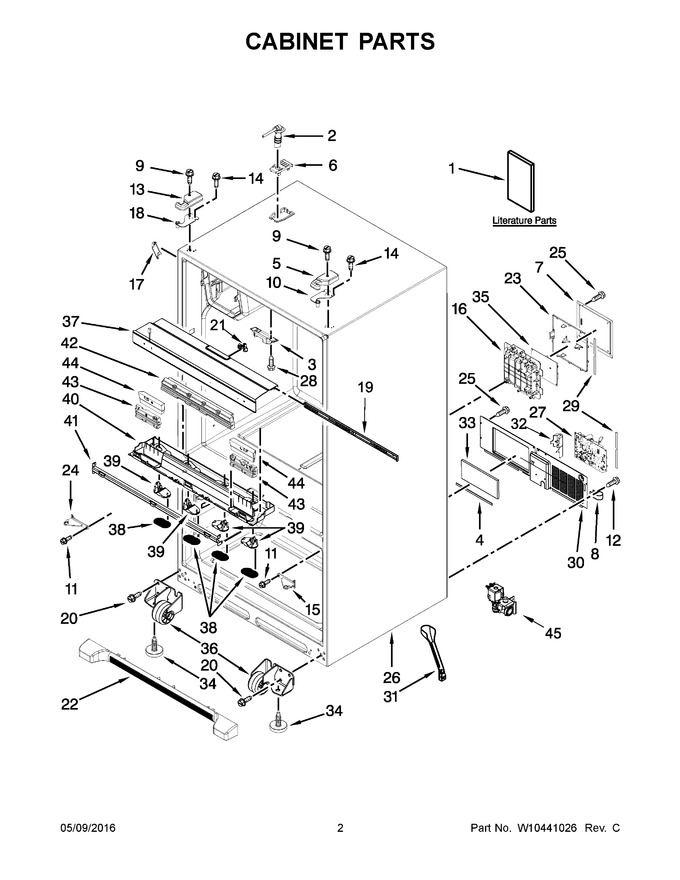

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10404652		Tech Sheet		Appelez-nous	-
2	W11415785		Tube, Water   (Replaces: 12961401)			Immediately	$ 62.39
3	WP67003405		Plate, Pivot   (Replaces: 12698403)			Immediately	$ 8.21
4	B5759655		Gasket				$ 13.03
5	67005958		Cover, Top Hinge (right) (white)   (Replaces: 12962302W)				$ 21.57
6	12981401W		Cover, Fill Tube (white)				$ 13.25
7	12961602		Cover, Control Box				$ 116.19
8	W11456069		Clamp, Tube   (Replaces: M0108107)			Immediately	$ 22.40
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 7.55
10	W11592374		Hinge, Top (right Hand)   (Replaces: 12963205ED)			Immediately	$ 31.90
11	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.80
12	67006425		Screw   (Replaces: 12990511)			Immediately	$ 7.30
13	WPW10337634		Cover, Top Hinge (left) (white)   (Replaces: 12962301W)			Immediately	$ 23.54
14	WP489349		Screw   (Replaces: 12992403)			Immediately	$ 8.43
15	13000002WD		Hinge, Center (rt) (white)				$ 160.99
16	W10285271		Box, Hv Control				$ 53.69
17	12587703W		Cover, Corner (white)				$ 22.90
18	W11592375		Hinge, Top (left Hand)   (Replaces: 12963204ED)				$ 31.92
19	W10367522		Slide, Mullion Vent		Appelez-nous	-
20	67006564		Screw   (Replaces: 12991302)			Immediately	$ 8.15
21	W10827867		Knob, Vent Slide   (Replaces: W10331297)		Appelez-nous	-
22	WPW10534154		Grille, Toe (white)   (Replaces: W10244559)				$ 153.66
23	W11226688		Lid, Hv Control Box   (Replaces: W10296541)				$ 85.16
24	W10918113		Hinge, Center (lt) (white)   (Replaces: 13000001WD)				$ 97.92
25	W11686675		Screw   (Replaces: 12990702)				$ 14.27
26	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
27	WPW10226427		Control, Electronic (power Supply)   (Replaces: W10226427)			Immediately	$ 351.93
28	W10854958		Screw   (Replaces: 12990302)				$ 7.90
29	12957801K		Gasket, Hv Control Box		Appelez-nous	-
30	W10211854		Cover, Unit				$ 178.37
31	W10619951		Tube, Drain   (Replaces: W10210988)			Immediately	$ 42.39
32	W10208592		Cover, Valve		Appelez-nous	-
33	12820505		Insulation				$ 71.70
34	WPW10141622		Brake, Roller   (Replaces: W10141622)			Immediately	$ 8.24
35	WPW10404689		Board, Hv Control   (Replaces: W10404689)				$ 339.84
36	W11820444		Roller Assembly (left Hand)   (Replaces: W10275850)			Immediately	$ 37.35
37	W10336575		Mullion-incl.heatr (white)		Appelez-nous	-
38	W10237349		Lens, Icebox Cover Led		Appelez-nous	-
39	W10679370		Module, Led Light   (Replaces: W10320778)				$ 142.75
40	W10311719		Housing, Module		Appelez-nous	-
41	W10323211		Brace, Mullion				$ 119.55
42	W10311721		Mullion, Secondary		Appelez-nous	-
43	W10316401		Wedge, Spacer (left Hand & Right Hand)		Appelez-nous	-
44	W11697528		Wedge, Spacer (left Hand & Right Hand)   (Replaces: W10316403)		Appelez-nous	-
45	WPW10498990		Valve, Solenoid   (Replaces: W10342318)			Immediately	$ 210.69
13A	W10337647		Cover, Top Hinge (left) (black)   (Replaces: 12962301B)			Immediately	$ 23.33
13B	WPW10337648		Cover, Top Hinge (left) (grey)   (Replaces: 12962301AP)				$ 23.12
15A	W10918164		Hinge, Center (rt) (black)   (Replaces: 13000008ED)				$ 91.53
15B	W10917988		Hinge, Center (rt) (grey)   (Replaces: 13000002AP)			Immediately	$ 95.63
17A	67003485		Cover, Corner (black)   (Replaces: 12587703B)			Immediately	$ 22.14
17B	WP12587703AP		Cover, Corner (grey)   (Replaces: 12587703AP)				$ 8.07
1A	W10390411		Use & Care Guide		Appelez-nous	-
1B	W10375831		Guide, Energy		Appelez-nous	-
22A	WPW10534153		Grille, Toe (black)   (Replaces: W10244561)				$ 154.57
22B	WPW10534155		Grille, Toe (grey)   (Replaces: W10244558)			Immediately	$ 119.56
24A	W10918164		Hinge, Center (lt) (black)   (Replaces: 13000007ED)				$ 91.53
24B	W10917988		Hinge, Center (lt) (grey)   (Replaces: 13000001AP)			Immediately	$ 95.63
36A	W11820445		Roller Assembly (right Hand)   (Replaces: W10275849)			Immediately	$ 37.35
37A	W10336117		Mullion-incl.heatr (black)		Appelez-nous	-
37B	W10336608		Mullion-incl.heatr (apollo Grey)		Appelez-nous	-
5A	WP67005956		Cover, Top Hinge (right) (black)   (Replaces: 12962302B)				$ 22.54
5B	WPW10191117		Cover, Top Hinge (right) (grey)   (Replaces: 12962302AP)				$ 23.05
6A	12981401B		Cover, Fill Tube (black)				$ 13.25
6B	W10191141		Cover, Fill Tube (grey)   (Replaces: 12981401AP)				$ 15.06
