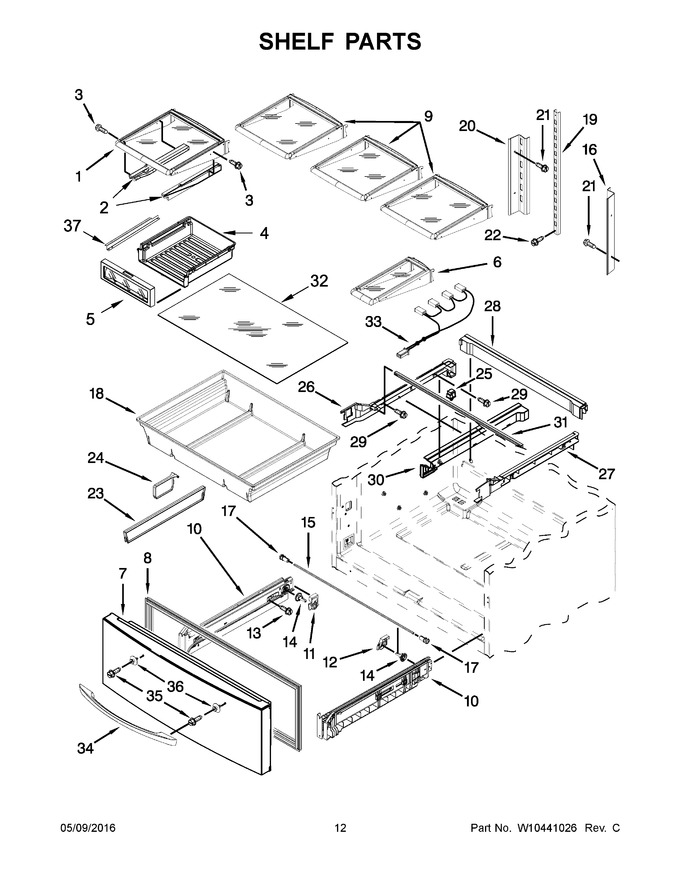

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11243759		Assembley, Shelf & Roller   (Replaces: W10345310)			Immediately	$ 252.29
2	WPW10346891		Left Hand   (Replaces: W10346891)			Immediately	$ 291.52
3	WP8281136		Screw   (Replaces: 8281136)				$ 7.30
4	W11696630		Pan, Deli   (Replaces: W10366647)			Immediately	$ 92.40
5	WPW10396909		Front, Deli Pan   (Replaces: W10396909)				$ 110.47
6	W11241612		Shelf, Mini   (Replaces: W10329926)				$ 245.68
7	13107112WQ		Pantry Door (white)   (Replaces: 13107104W)				$ 968.77
8	W10443325		Gasket-pantry (white)   (Replaces: W10294107)			Immediately	$ 301.95
9	W11213107		Shelf, Stationary   (Replaces: W10329925)				$ 258.34
10	W11093713		Adapter-pantry (left Hand)   (Replaces: W10295155)				$ 141.44
11	W10277360		Gear, Spur				$ 31.85
12	W10284709		Cover-gear (left Hand)				$ 73.89
13	WPW10272364		Screw   (Replaces: W10272364)			Immediately	$ 11.36
14	67006529		Screw   (Replaces: 12991701)				$ 13.47
15	W10298176		Shaft, Rack		Appelez-nous	-
16	W10251965		Ladder, Side (right Hand)				$ 31.08
17	WPW10277361		Collar, Gear   (Replaces: W10277361)				$ 12.09
18	WPW10530656		Pan, Pantry   (Replaces: W10268846)				$ 240.88
19	W10273464		Ladder, Center			Immediately	$ 30.19
20	W10251968		Ladder, Side (left Hand)				$ 27.38
21	67006425		Screw   (Replaces: 12990513)			Immediately	$ 7.30
22	W10709795		Screw   (Replaces: 12990515)				$ 13.79
23	W10839397		Divider, Large Pantry   (Replaces: W10328402)				$ 51.85
24	W10328403A		Divider, Small Pantry   (Replaces: W10328403)				$ 39.95
25	W11291138		Switch, Rocker   (Replaces: 12466104)			Immediately	$ 36.67
26	W10311723		Rail, Pantry (left Hand)				$ 142.03
27	W11715934		Rail, Pantry (right Hand)   (Replaces: W10311726)				$ 45.82
28	W10331298		Rail, Rear Pantry		Appelez-nous	-
29	WP98165		Screw   (Replaces: 12990521)				$ 8.57
30	W10311725		Cover, Pantry Rail (left Hand)				$ 18.24
31	12227305		Brace, Pantry		Appelez-nous	-
32	WPW10296571		Glass, Pantry Shelf   (Replaces: W10346616)				$ 247.10
33	W10335721		Harness, Rc-led		Appelez-nous	-
34	WPW10314520K		Handle-snack Pan (white)   (Replaces: W10314520)				$ 241.66
35	W10290759		Screw				$ 5.83
36	WP67006113		Mount, Handle   (Replaces: 13001201)			Immediately	$ 12.56
37	W11226546		Runner, Channel   (Replaces: W10385043)				$ 125.49
10A	W11093714		Adapter-pantry (right Hand)   (Replaces: W10295157)				$ 138.32
12A	W10294414		Cover-gear (right Hand)				$ 83.48
2A	WPW10346890		Right Hand   (Replaces: W10346890)			Immediately	$ 291.40
34A	W10314521		Handle-snack Pan (black)		Appelez-nous	-
34B	WPW10314522K		Handle-snack Pan (stainless)   (Replaces: W10314522)				$ 280.70
7A	13107112BQ		Pantry Door (black)   (Replaces: 13107104B)				$ 800.59
7B	13107108S		Pantry Door (stainless)		Appelez-nous	-
8A	W11625002		Gasket-pantry (black)   (Replaces: W10294113)				$ 243.13
8B	WPW10443326		Gasket-pantry (apollo Grey)   (Replaces: W10294114)				$ 347.67
