01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches

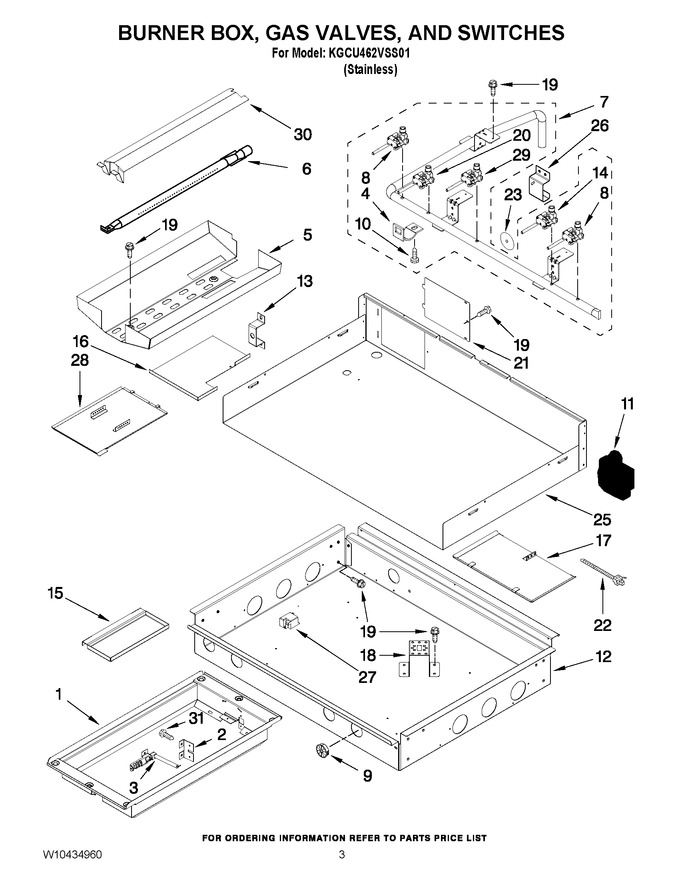

03 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10267890 | Module, Grill (Replaces: W10267890) |
|
$ 471.83 | |||||
| 2 | W10250461 | Bracket, Grill Ignitor |
|
- | |||||
| 3 | W10268770 | Ignitor, Grill |
|
$ 161.69 | |||||
| 4 | W10189107 | Bracket, Valve |
|
- | |||||
| 5 | W10269564 | Deflector, Grill |
|
$ 173.90 | |||||
| 6 | W10223569 | Burner, Grill |
|
$ 258.87 | |||||
| 7 | W10402600 | Manifold Assy. |
|
- | |||||
| 8 | WPW10385582 | Valve, Single (lr & Rf)15k (Replaces: W10385582) |
|
Immediately | $ 340.85 | ||||
| 9 | W10189097 | Bushing, Burner Box |
|
$ 8.00 | |||||
| 10 | W10189140 | Screw, Valve Mtg |
|
$ 6.82 | |||||
| 11 | WP9759091 | Regulator, Pressure (Replaces: 9759091) |
|
Immediately | $ 340.43 | ||||
| 12 | W10371516 | Burner Box |
|
- | |||||
| 13 | W10250475 | Bracket, Grill Orifice Mounting |
|
- | |||||
| 14 | WPW10385583 | Valve, Simmer (rr) 5k (Replaces: W10385583) |
|
Immediately | $ 332.10 | ||||
| 15 | W10250473 | Drip Tray |
|
$ 224.39 | |||||
| 16 | W10250474 | Drip Tray Holder |
|
- | |||||
| 17 | W10250468 | Drip Tray Router |
|
- | |||||
| 18 | W10369547 | Bracket, Burner |
|
- | |||||
| 19 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 20 | WPW10371235 | Valve-gas, Dual (lf)20k (Replaces: W10371235) |
|
Immediately | $ 268.41 | ||||
| 21 | W10115843 | Cover, Ignition |
|
- | |||||
| 22 | W11675299 | Cable Tie (Replaces: W10368807) |
|
$ 13.53 | |||||
| 23 | W10189177 | Seal, Switch Cover |
|
$ 10.00 | |||||
| 25 | W10189156 | Cover, Burner Box |
|
- | |||||
| 26 | 8285790 | Bracket, Mounting Orifice |
|
$ 85.85 | |||||
| 27 | W11601369 | Reignitor, Gas (Replaces: W10116108) |
|
Immediately | $ 67.35 | ||||
| 28 | W10250470 | Drip Tray, Router 1 |
|
$ 128.77 | |||||
| 29 | W10305285 | Valve, Gas Grill |
|
$ 364.35 | |||||
| 30 | W10250462 | Flame Spreader |
|
$ 92.34 | |||||
| 31 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| NI | WPW10353133 | Tubing, Gas (lr & Rr) (Replaces: W10353133) |
|
$ 174.89 | |||||
| NI | W10280797 | Tubing, Gas(5k) (rr) |
|
- | |||||
| NI | W10353141 | Tubing, Gas(15k) (lr & Rf) |
|
$ 175.16 | |||||
| NI | W10353152 | Tubing, Gas Center Front |
|
$ 78.93 | |||||
| NI | W10353154 | Tubing, Gas(20k) (lf) |
|
Immediately | $ 172.78 | ||||
| NI | W10158807 | Tube, Grill Gas |
|
$ 94.65 |
