SELECT A DIAGRAM

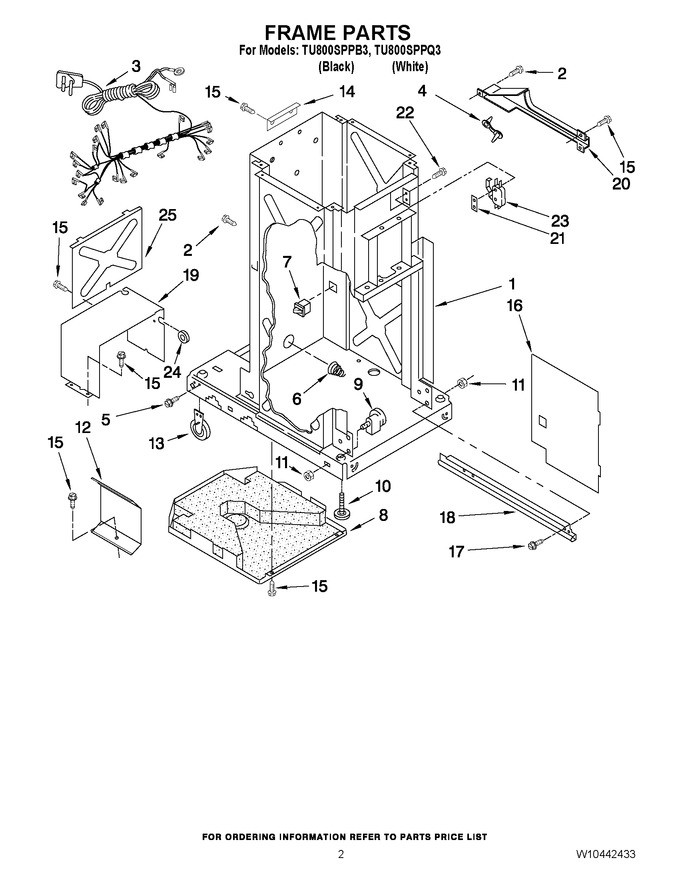

01 - Motor And Drive Parts


02 - Frame Parts


03 - Panel And Control Parts


04 - Powerscrew And Ram Parts


05 - Container Parts


06 - Accessory Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Frame (not A Serviceable Part)		Appelez-nous	-
2	WP489399		Screw   (Replaces: W10142231)				$ 7.30
3	W10279440		Harness-cord, Power		Appelez-nous	-
4	W11705832		Clamp, Wire   (Replaces: 777035)		Appelez-nous	-
5	WP3351614		Screw   (Replaces: 780034)			Immediately	$ 7.30
6	WP777180		Spring, Container   (Replaces: 777180)				$ 97.93
7	W11243179		Switch, Drawer Safety   (Replaces: 4149377)				$ 74.74
8	WP780437		Pan, Bottom   (Replaces: 9870167)				$ 316.61
9	882688		Bearing, Roller   (Replaces: 4153788)				$ 21.19
10	WPW10001130		Bolt, Leveler   (Replaces: 775526)			Immediately	$ 7.80
11	WP776356		Locknut   (Replaces: 776356)				$ 8.53
12	9870867		Shield, Slide Track		Appelez-nous	-
13	W11023674		Wheel, Leveler   (Replaces: 9870585)				$ 54.05
14	775668		Angle, Top Bracket		Appelez-nous	-
15	WP489478		Screw   (Replaces: W10001260)				$ 8.18
16	WP9870444		Panel, Inner   (Replaces: 9870444)				$ 101.92
17	WP486754		Screw   (Replaces: 777458)				$ 8.01
18	WP9870975		Frame, Slide (l.h.)   (Replaces: 9870975)				$ 112.70
18	W11722978		Frame, Slide (r.h.)   (Replaces: 9870976)				$ 141.33
19	780434		Cover, Motor		Appelez-nous	-
20	4149659		Shield, Harness		Appelez-nous	-
21	777850		Nut, Plate				$ 77.13
22	WP489399		Screw   (Replaces: 489399)				$ 7.30
23	WP777811		Switch, Top Limit & Directional   (Replaces: 777811)			Immediately	$ 116.62
24	W11679167		Grommet, Motor Cover   (Replaces: 776118)		Appelez-nous	-
25	608009		Plate, Cover				$ 39.79
