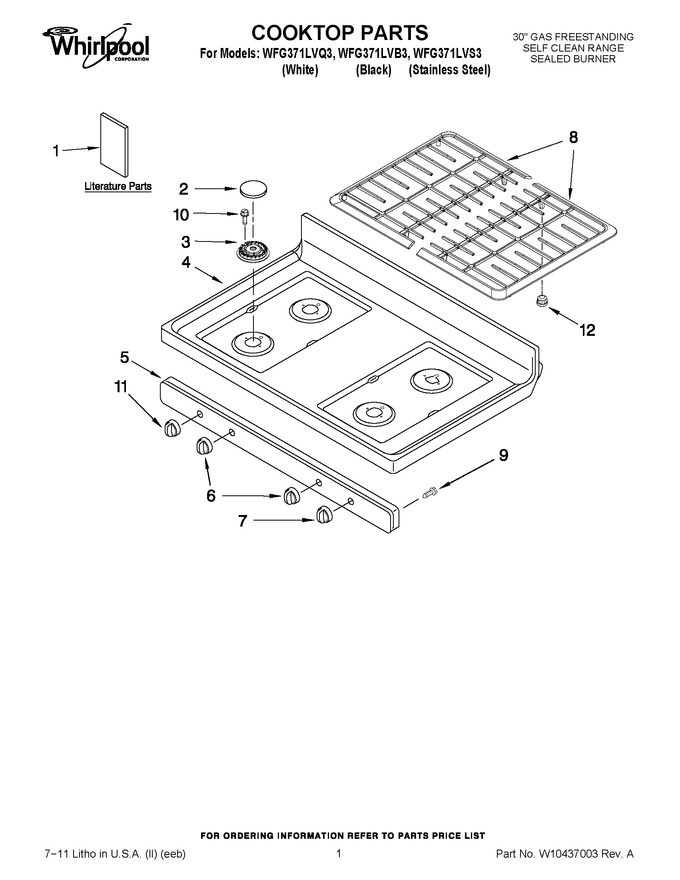

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10413012		Installation Instructions		Appelez-nous	-
1	9757142		Anti-tip Template (english/spanish)		Appelez-nous	-
1	9757143		Anti-tip Template (english/french)		Appelez-nous	-
1	W10196153		Owners Manual		Appelez-nous	-
1	W10357517		Tech Sheet		Appelez-nous	-
1	9762761		Safer Cooking Tips		Appelez-nous	-
2	WPW10183375		Cap, Burner (black)   (Replaces: W10183375)				$ 154.94
2	W10183373		Cap, Burner (wetstone)		Appelez-nous	-
3	WPW10406243		Burner (right Rear)   (Replaces: 8286181)			Immediately	$ 39.08
3	WPW10406283		Burner (left Rear)   (Replaces: W10194076)				$ 78.02
3	WPW10406878		Burner (l.front, R.front)   (Replaces: 8286183)				$ 107.48
4	W10153562		Cooktop (white)		Appelez-nous	-
4	W10153563		Cooktop (black)		Appelez-nous	-
5	8523855		Panel, Manifold (black)				$ 176.18
5	WP8523854		Panel, Manifold (white)   (Replaces: 8523854)				$ 290.58
6	WPW10160648		Knob, Control (white)   (Replaces: W10160648)				$ 24.20
6	WPW10160649		Knob, Control (black)   (Replaces: W10160649)				$ 24.22
7	WPW10134131		Knob, Accusimmer (black)   (Replaces: W10134131)				$ 24.61
7	WPW10134130		Knob, Accusimmer (white)   (Replaces: W10134130)				$ 25.00
8	W10354843		Set, Burner Grate (full Width) (black)		Appelez-nous	-
8	W10354846		Set, Burner Grate (full Width) (grey)		Appelez-nous	-
9	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 8.56
10	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.95
11	WPW10134134		Knob, Powerburner (black)   (Replaces: W10134134)				$ 25.00
11	W10134133		Knob, Powerburner (white)				$ 18.82
12	8186321		Bumper, Grate   (Replaces: 9760219)			Immediately	$ 10.60
