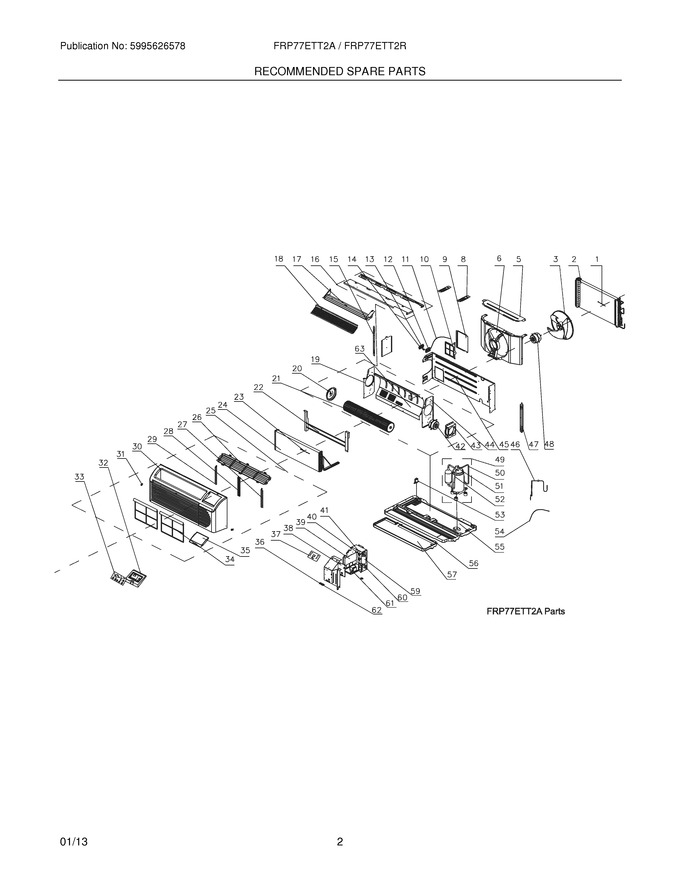

03 - Recommended Spare Parts
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 5304483980 | Cover,shroud ,condenser Fan |
|
- | |||||
| 6 | 5304483979 | Shroud,condenser/fan |
|
- | |||||
| 8 | 5304484111 | Support,shroud/bulkhead ,plate |
|
- | |||||
| 9 | 5304483798 | Door,vent Cover ,air Inlet |
|
- | |||||
| 11 | 5304484112 | Control Arm,linkage ,vent Door |
|
- | |||||
| 12 | 5304483802 | Cover,lever ,lower |
|
- | |||||
| 13 | 5304483982 | Lever/handle |
|
- | |||||
| 14 | 5304483803 | Cover,lever ,upper |
|
- | |||||
| 15 | 5304484812 | Support,bulkhead ,outer Left |
|
- | |||||
| 16 | 5304483804 | Cover,blower Assy ,top Plate |
|
- | |||||
| 18 | 5304483806 | Grille,evap Discharge ,rear |
|
- | |||||
| 19 | 5304483807 | Panel,blower Assy ,left Side |
|
- | |||||
| 20 | 5304483809 | Housing,bearing Block |
|
- | |||||
| 26 | 5304483944 | Grille,air Vent ,w/louvers |
|
- | |||||
| 27 | 5304484086 | Track 1,filter ,right Side |
|
- | |||||
| 28 | 5304484087 | Track 2,filter ,center |
|
- | |||||
| 29 | 5304484088 | Track 3,filter ,left Side |
|
- | |||||
| 30 | 5304483812 | Panel,front Frame (Replaces: 5304483945) |
|
- | |||||
| 31 | 5304483946 | Clip,mounting ,front Panel |
|
- | |||||
| 32 | 5304483947 | Frame,control Panel ,lcd Cover |
|
- | |||||
| 35 | 5304483961 | Cover,remote Control |
|
- | |||||
| 43 | 5304483957 | Bracket,motor Support |
|
- | |||||
| 44 | 5304483808 | Panel,blower Assy ,right Side |
|
- | |||||
| 45 | 5304484089 | Bulkhead,indoor/outdoor |
|
- | |||||
| 47 | 5304484815 | Support,bulkhead ,outer Right |
|
- | |||||
| 55 | 5304484821 | Base,unit Chassis |
|
- | |||||
| 56 | 5304483965 | Tray,drip Pan ,foam |
|
- | |||||
| 57 | 5304483966 | Baffle,thermal ,metal ,insulator |
|
- | |||||
| 63 | 5304484567 | Duct,air |
|
- | |||||
| F1 | 5304483971 | Sensor,ambient ,outdoor ,evap Intake |
|
- | |||||
| F10 | 5304483799 | Filter,air |
|
- | |||||
| F17 | 5304483805 | Diffuser,air Vent ,evap Cover |
|
- | |||||
| F2 | 5304484811 | Condenser |
|
- | |||||
| F21 | 5304483810 | Blower Wheel,cross Flow Fan |
|
- | |||||
| F22 | 5304483811 | Heater,electric |
|
- | |||||
| F23 | 5304459793 | Sensor,ambient ,indoor ,evap Defrost |
|
$ 69.60 | |||||
| F24 | 5304484813 | Evaporator |
|
- | |||||
| F25 | 5304483812 | Front Assembly,complete Panel |
|
- | |||||
| F3 | 5304483797 | Fan Blade,propeller ,axial Flow |
|
- | |||||
| F33 | 5304483948 | Overlay,control Panel ,membrane |
|
- | |||||
| F34 | 5304483949 | Filter,air ,(2) |
|
- | |||||
| F36 | 5304483970 | Terminal,wiring ,2 Connectors |
|
- | |||||
| F37 | 5304483952 | Pc Board,display/input |
|
- | |||||
| F38 | 5304483953 | Pc Board,processor ,low Voltage |
|
- | |||||
| F39 | 5304483954 | Pc Board,main ,high Voltage |
|
$ 252.32 | |||||
| F40 | 5304483968 | Capacitor,blower Fan |
|
- | |||||
| F41 | 5304483983 | Capacitor,condenser Fan |
|
- | |||||
| F42 | 5304483984 | Motor,fan ,outside |
|
- | |||||
| F46 | 5304484814 | Tube,capillary |
|
- | |||||
| F48 | 5304484816 | Motor,blower ,inside |
|
- | |||||
| F49 | 5304484817 | Compressor,with Overload |
|
- | |||||
| F50 | 5304484818 | Tube,discharge |
|
- | |||||
| F51 | 5304484819 | Overload Protector,compressor |
|
- | |||||
| F52 | 5304484820 | Tube,suction |
|
- | |||||
| F53 | 5304459477 | Valve,drain |
|
- | |||||
| F54 | 5304483963 | Power Cord,electric |
|
- | |||||
| F59 | 5304484822 | Capacitor,compressor |
|
- | |||||
| F60 | 5304459674 | Terminal,electric ,board 2-8 |
|
- | |||||
| F61 | 5304483969 | Transformer |
|
- | |||||
| F62 | 5304483950 | Connector,wire ,wall Thermostat |
|
- | |||||
| FNI | 5304490403 | Filter-dryer |
|
- |
