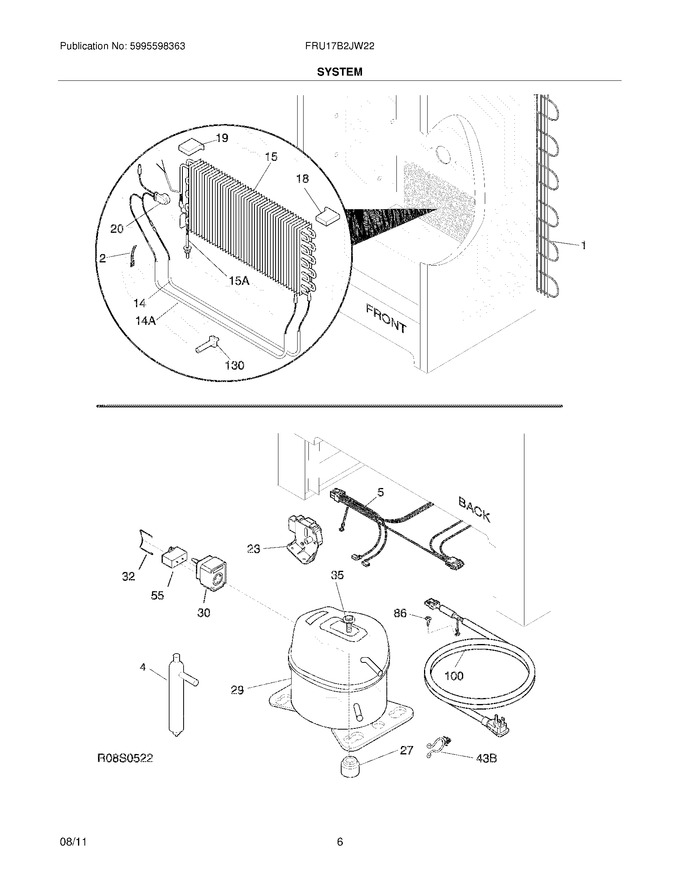

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 71.65
5	297244600		Harness-main				$ 144.93
14	297253602		Defrost Heater   (Replaces: 297216102)				$ 95.21
18	297078701		Insulator-evap,styrofoam ,rh				$ 4.02
19	297078801		Insulator-evap,styrofoam ,lh				$ 4.02
20	216731001		Thermostat, Defrost			Immediately	$ 93.84
27	216337701		Screw,hwh ,10-24 X 0.500 ,swage				$ 16.01
30	216954200		Controller,compressor ,5 Speed				$ 70.88
32	216954300		Clip,controller				$ 18.90
35	297368500		Bolt,compressor		Appelez-nous	-
55	297286812		Run Capacitor,10mf   (Replaces: 297286801)			Immediately	$ 13.09
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 15.17
130	297244700		Support,evaporator Mtg				$ 4.73
15A	297217900		Heat Exchanger   (Replaces: 297231800)			Immediately	$ 102.02
43B	297315800		Clip,wire				$ 11.25
F1	5300083897		Condenser				$ 598.19
F100	297366805		Cord-power   (Replaces: 297169904)				$ 76.31
F14A	297222901		Heater				$ 73.40
F15	297414901		Evaporator   (Replaces: 216997300)			Immediately	$ 190.38
F23	5304518034		Timer Defrost 115v Tab   (Replaces: 297318010)			Immediately	$ 72.16
F29	5304507767		Compressor,w/o Electricals   (Replaces: 216966300)				$ 807.12
F4	5303305677		Drier-filter   (Replaces: 216938601)			Immediately	$ 35.19
NI	216695300		Relay				$ 86.63
NI	216683900		Thermostat,service Part				$ 61.62
NI	216502500		Sleeve,suction Line				$ 12.05
NI	240555002		Screw-no.8-32 X 3/8			Immediately	$ 14.96
NI	241500305		Screw, Self Pierce,no.8 ,18x.63   (Replaces: 297174300)				$ 3.37
