SELECT A DIAGRAM

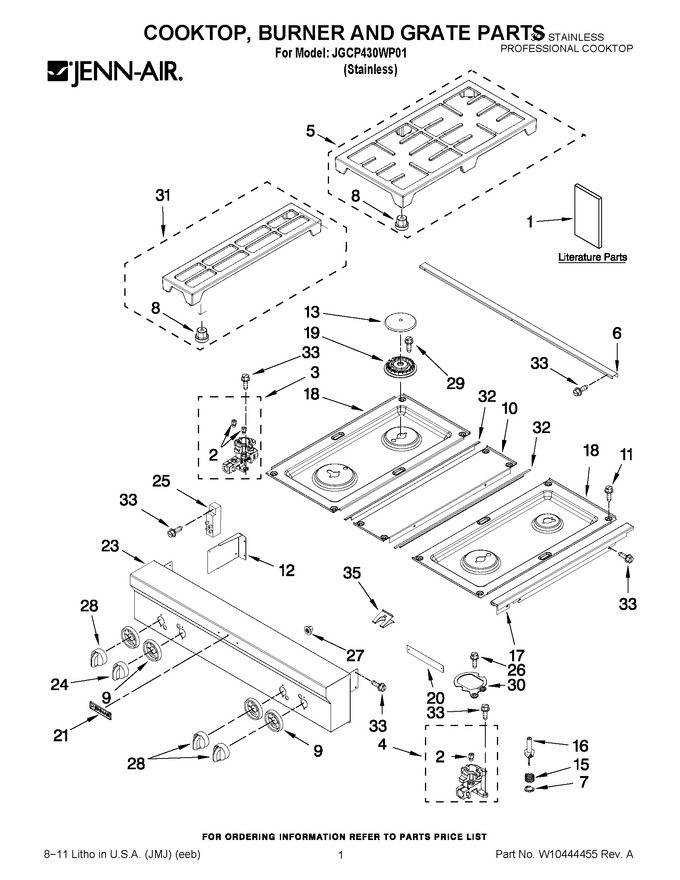

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10403307		Tech Sheet		Appelez-nous	-
1	W10399390		Use & Care Guide		Appelez-nous	-
1	W10394706		Installation Instructions		Appelez-nous	-
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
2	W10160232		Orifice (lr & Rf)				$ 45.77
2	W10340424		Orifice (lf-high)				$ 93.67
2	W10819958		Orifice (lf-low)   (Replaces: W10256132)				$ 97.77
3	WPW10364555		Orifice Holder (dual-lf)   (Replaces: W10364555)				$ 113.42
4	WPW10364556		Orifice Holder (lr,rf)   (Replaces: W10364556)				$ 102.39
4	W10282659		Orifice Holder (rr)				$ 40.50
5	W11344501		Grate, Burner   (Replaces: W10276551)			Immediately	$ 218.28
6	W10269218		Trim, Island				$ 265.16
7	W10160825		Clip, Electrode				$ 52.85
8	W10185266		Rubber, Foot   (Replaces: 8286695)			Immediately	$ 15.47
9	W10276494		Bezel, Front				$ 80.42
10	W10189105		Filler, Cooktop		Appelez-nous	-
11	WP74003976		Screw   (Replaces: 7101P500-60)				$ 7.55
12	W10398550		Bracket, Spark Module		Appelez-nous	-
13	WPW10364463		Cap, Burner (rr)   (Replaces: W10364463)			Immediately	$ 55.85
13	WPW10256032		Cap, Burner (lr,rf)   (Replaces: W10256032)			Immediately	$ 88.38
13	WPW10256034		Cap, Burner (lf)   (Replaces: W10256034)				$ 138.19
15	W10256046		Spring, Electrode				$ 11.56
16	W10833887		Electrode (lr, Rf & Rr)   (Replaces: W10256047)			Immediately	$ 50.65
16	WPW10145991		Electrode (aux)   (Replaces: W10145991)			Immediately	$ 84.47
17	W10226015		Trim, Side (right)				$ 263.19
17	W10226014		Trim, Side (left)				$ 261.16
18	W10352968		Cooktop (right)				$ 337.26
18	W10352969		Cooktop (left)				$ 335.75
19	WPW10256027		Burner, Head (lr,rf)   (Replaces: W10256027)			Immediately	$ 101.02
19	WPW10282515		Burner Head (aux)   (Replaces: W10282515)			Immediately	$ 149.87
19	W11106799		Burner, Head (lf)   (Replaces: W10256029)			Immediately	$ 97.21
20	W10250433		Cover, Plate		Appelez-nous	-
21	WPW10159578		Nameplate   (Replaces: W10159578)			Immediately	$ 88.54
23	W10910410		Assembly, Console   (Replaces: W10295780)				$ 438.55
24	W10145568		Knob, Control (dual - Lf)				$ 52.92
25	WPW10475147		Module, Spark   (Replaces: 7431P038-60)			Immediately	$ 385.00
26	8286930		Gasket, Orifice Holder Aux				$ 95.73
27	7103P166-60		Nut, Hex				$ 18.56
28	W10145454		Knob, Control				$ 46.94
29	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
30	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
31	W11241675		Grate, Filler   (Replaces: W10276495)				$ 194.76
32	W10271524		Trim				$ 212.34
33	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.72
35	8286863		Spring, Electrode				$ 76.92
