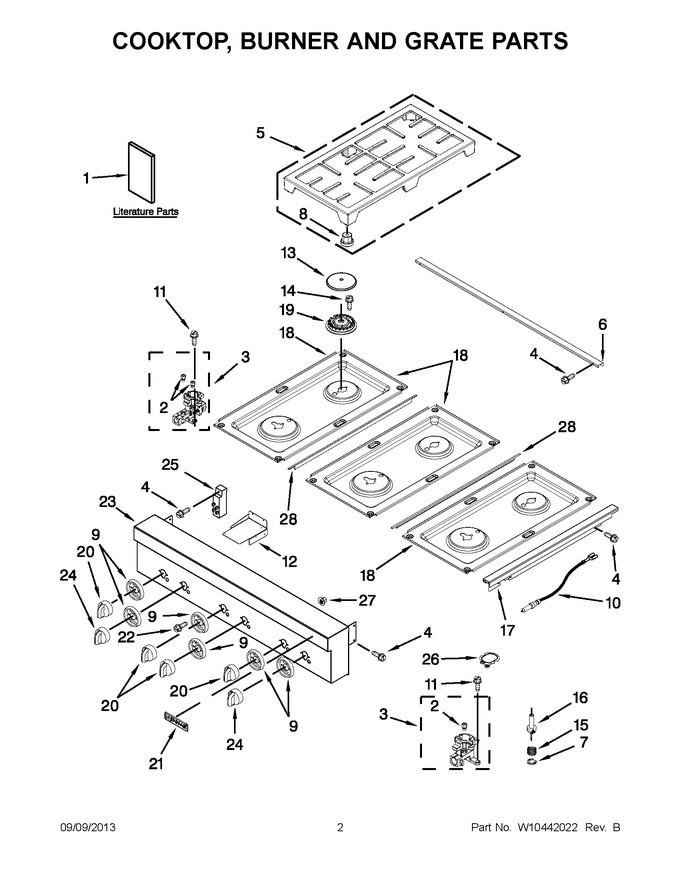

02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switches


04 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10394706		Installation Instructions		Appelez-nous	-
1	W10403307		Tech Sheet		Appelez-nous	-
1	W10399390		Use & Care Guide		Appelez-nous	-
1	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
2	W10340424		Orifice (17k) (left Front And Right Front)				$ 93.67
2	W11051480		Orifice (15k) (left Rear, Center Front, Right Rear)   (Replaces: W10364221)				$ 90.69
2	W10791075		Orifice (5k) (center Rear)   (Replaces: W10282663)				$ 103.68
3	W10282659		Orifice Holder (5k) (center Rear)				$ 40.50
3	WPW10364556		Orifice Holder (15k) (left Rear, Center Front, Right Rear)   (Replaces: W10364556)				$ 102.39
3	WPW10364555		Orifice Holder (20k) (left Front And Right Front)   (Replaces: W10364555)				$ 113.42
4	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
5	W11344501		Grate, Burner (black)   (Replaces: W10276551)			Immediately	$ 218.28
6	W10269217		Trim, Island (stainless)				$ 308.49
7	W10160825		Clip, Electrode (dual)				$ 52.85
8	8186321		Bumper, Grate   (Replaces: 9760219)			Immediately	$ 10.60
9	W10276494		Bezel, Front				$ 80.42
10	WPW10145991		Electrode   (Replaces: W10145991)			Immediately	$ 84.47
11	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
12	W10498405		Bracket, Spark Module		Appelez-nous	-
13	WPW10364463		Cap, Burner (black (center Rear))   (Replaces: W10364463)			Immediately	$ 55.85
13	WPW10256034		Cap, Burner (black (left Front And Right Front))   (Replaces: W10256034)				$ 138.19
13	WPW10256032		Cap, Burner (black (left Rear, Center Front, Right Rear))   (Replaces: W10256032)			Immediately	$ 88.38
14	W11404293		Screw   (Replaces: W10078270)			Immediately	$ 14.74
15	W10256046		Spring, Electrode (all But Center Rear)				$ 11.56
15	8286863		Spring, Electrode (center Rear)				$ 76.92
16	W10833887		Electrode, Burner (all But Center Rear)   (Replaces: W10256047)			Immediately	$ 50.65
16	W10854967		Wiring, Electrode (center Rear)   (Replaces: 8286725)			Immediately	$ 48.38
17	W10226014		Trim, Side (black)				$ 261.16
18	W10352966		Cooktop (black (center))				$ 320.43
18	W10352969		Cooktop (black (left))				$ 335.75
18	W10352967		Cooktop (black (right))				$ 337.26
19	WPW10256027		Spreader, Flame (15k) (left Rear, Center Front, Right Rear)   (Replaces: W10256027)			Immediately	$ 101.02
19	WPW10282515		Spreader, Flame (5k) (center Rear)   (Replaces: W10282515)			Immediately	$ 149.87
19	W11106799		Spreader, Flame (20k) (left Front And Right Front)   (Replaces: W10495853)			Immediately	$ 97.21
20	W10145454		Knob (stainless (all Except Left Front & Right Front))				$ 46.94
21	WPW10159578		Badge (pro-style)   (Replaces: W10159578)			Immediately	$ 88.54
22	WP74003976		Screw   (Replaces: 7101P500-60)				$ 7.55
23	W11444601		Panel, Control (stainless)   (Replaces: W10145535)				$ 765.23
24	W10145568		Knob (stainless (left Front And Right Front))				$ 52.92
25	WPW10475147		Module, Spark   (Replaces: W10475147)			Immediately	$ 385.00
26	8286930		Gasket, Orifice				$ 95.73
27	7103P166-60		Nut				$ 18.56
28	W10271524		Trim, Cooktop (black)				$ 212.34
