01 - Top And Cabinet Parts

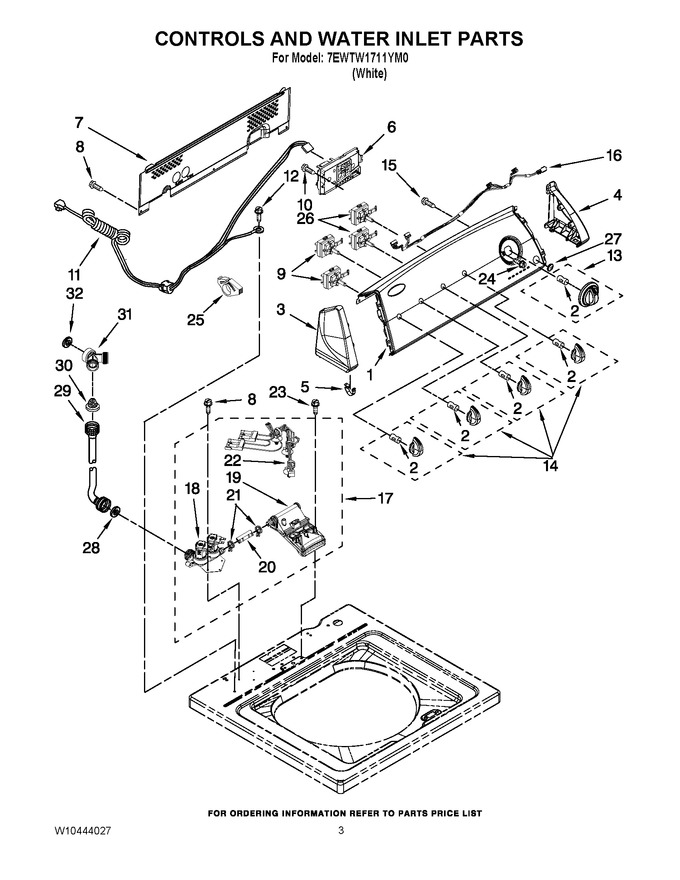

02 - Controls And Water Inlet Parts
03 - Basket And Tub Parts
04 - Gearcase, Motor And Pump Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10410369 | Panel, Console |
|
- | |||||
| 2 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 3 | WP8565957 | Cap, End (l.h.) (includes Item 5) (Replaces: 8566035) |
|
$ 64.76 | |||||
| 4 | WP8565954 | Cap, End (r.h.) (includes Item 5) (Replaces: 8566032) |
|
$ 65.84 | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 6 | W10480621 | Control Unit Assembly, Machine & Motor (Replaces: W10445402) |
|
$ 409.77 | |||||
| 7 | WPW10420985 | Panel, Console Rear Cover (Replaces: W10420985) |
|
$ 263.85 | |||||
| 8 | WP489069 | Screw, 8-18 X 3/8 (Replaces: 1157158) |
|
Immediately | $ 8.40 | ||||
| 9 | WPW10285512 | Switch, Rotary Encoder (Replaces: W10285512) |
|
Immediately | $ 190.47 | ||||
| 10 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 11 | WPW10525194 | Cord, Power (Replaces: W10276649) |
|
$ 163.41 | |||||
| 12 | W10846509 | Screw, Power Cord Ground (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 13 | W10034750 | Knob, Timer |
|
$ 28.27 | |||||
| 14 | W10034380 | Knob, Control |
|
$ 25.06 | |||||
| 15 | 3400073 | Screw, Ground |
|
- | |||||
| 16 | WPW10291176 | Harness, Upper (Replaces: W10291176) |
|
$ 173.29 | |||||
| 17 | WPW10432360 | Inlet Assembly, Water (Replaces: W10357189) |
|
$ 253.55 | |||||
| 18 | WPW10352256 | Valve, Water Mixing (Replaces: W10352256) |
|
$ 206.51 | |||||
| 19 | WPW10441423 | Vacuum Break (Replaces: W10334611) |
|
$ 90.33 | |||||
| 20 | W10238347 | Hose, Vacuum Break |
|
$ 25.86 | |||||
| 21 | WP596669 | Clamp, Hose (Replaces: W10117298) |
|
Immediately | $ 8.82 | ||||
| 22 | WPW10344775 | Harness, Valve (Replaces: W10344775) |
|
$ 171.51 | |||||
| 23 | WP8281163 | Screw, 8-16 X 1/2 (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 24 | WP3400818 | Screw, 8-18 X .20 (Replaces: 3400818) |
|
$ 8.81 | |||||
| 25 | WPW10663966 | Clamp (Replaces: W10348582) |
|
$ 224.26 | |||||
| 26 | WPW10285512 | Switch, Rotary Encoder (Replaces: W10285512) |
|
Immediately | $ 190.47 | ||||
| 27 | WPW10251309 | Pushbutton, Start (Replaces: W10251309) |
|
Immediately | $ 76.00 | ||||
| 28 | WP16123 | Washer, Water Inlet Hose (Replaces: W10242307) |
|
$ 8.16 | |||||
| 29 | WP89503 | Hose, Water Inlet (hot Water) (Replaces: W10196191) |
|
Immediately | $ 24.09 | ||||
| 29 | WP89503 | Hose, Water Inlet (cold Water) (Replaces: W10194210) |
|
Immediately | $ 24.09 | ||||
| 30 | 285452A | Washer, Filter (Replaces: 353362) |
|
Immediately | $ 9.69 | ||||
| 31 | WPW10269488 | Connector, Y Hose (Replaces: W10269488) |
|
$ 89.64 | |||||
| 32 | WP3357450 | Washer, Export Hose Adaptor (Replaces: 3357450) |
|
$ 11.56 |
