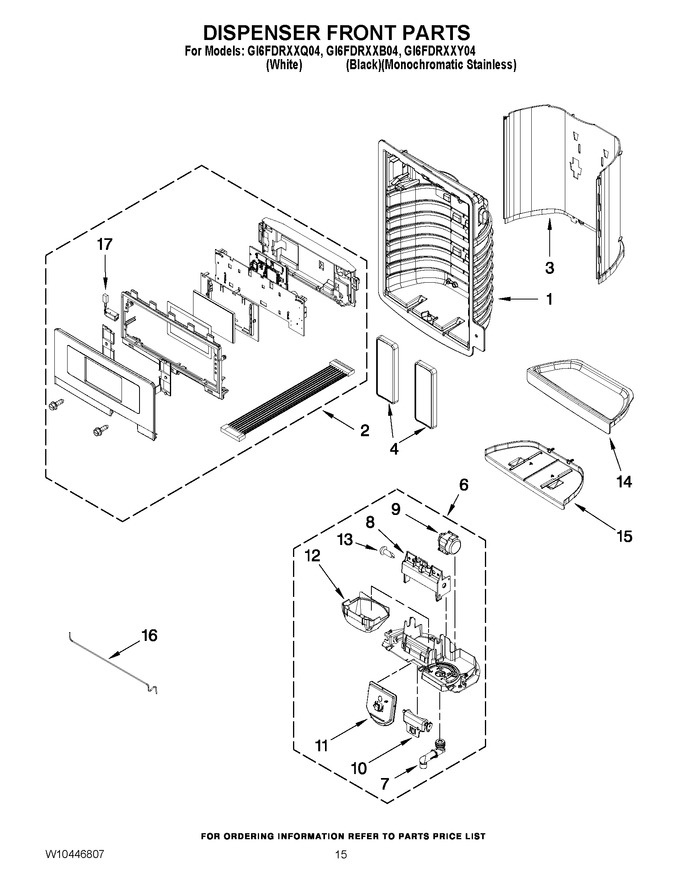

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | W11184112 | Ui Assembly (Replaces: W10337911) |
|
$ 406.73 | |||||
| 3 | W11045975 | False, Wall, Dispenser (white) (Replaces: W10215699) |
|
- | |||||
| 3 | W11045978 | False, Wall, Dispenser (stainless) (Replaces: W10299897) |
|
$ 90.33 | |||||
| 3 | W11045976 | False, Wall, Dispenser (black) (Replaces: W10233560) |
|
$ 43.18 | |||||
| 4 | W10368728 | Pad Assembly - Water & Ice (white) |
|
$ 86.65 | |||||
| 4 | WPW10368730 | Pad Assembly - Water & Ice (stainless) (Replaces: W10368730) |
|
Immediately | $ 319.47 | ||||
| 4 | W10368729 | Pad Assembly - Water & Ice (black) |
|
$ 308.78 | |||||
| 6 | WPW10353552 | Separator Assy. (Replaces: W10353552) |
|
$ 166.29 | |||||
| 7 | W11227371 | Spigot (Replaces: 2316647) |
|
$ 136.38 | |||||
| 8 | W10174827 | Bracket-ice Door |
|
$ 76.42 | |||||
| 9 | WPW10205979 | Motor-ice Door (Replaces: W10205979) |
|
Immediately | $ 107.60 | ||||
| 10 | WPW10346124 | Support-ice Door (Replaces: W10346124) |
|
$ 41.85 | |||||
| 11 | WPW10317279 | Door, Ice (Replaces: W10317279) |
|
$ 20.52 | |||||
| 12 | WPW10435760 | Guide-ice (Replaces: W10339578) |
|
$ 23.94 | |||||
| 13 | W10174818 | Screw |
|
- | |||||
| 14 | W11045971 | Tray, Dispenser (black) (Replaces: W10267870) |
|
$ 65.90 | |||||
| 14 | W11045970 | Tray, Dispenser (white) (Replaces: W10267869) |
|
$ 65.93 | |||||
| 14 | W11192301 | Tray-dispenser (stainless) (Replaces: W10299895) |
|
$ 65.82 | |||||
| 15 | WPW10267863 | Slide Tray, Dispenser (stainless) (Replaces: W10267863) |
|
$ 73.22 | |||||
| 15 | W10267860 | Slide, Tray Dispenser (white) |
|
- | |||||
| 15 | W10267861 | Slide Tray, Dispenser (black) |
|
$ 74.39 | |||||
| 16 | W10296451 | Tube, Water |
|
$ 53.54 | |||||
| 17 | W11290115 | Led (Replaces: W10238083) |
|
$ 84.45 |
