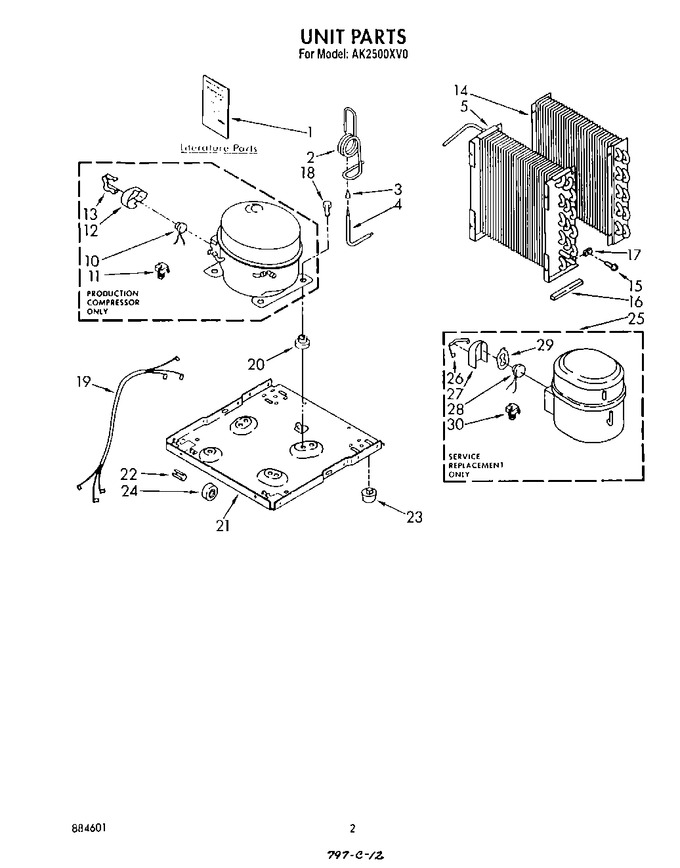

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT1158219		Wiring Diagram		Appelez-nous	-
1	LIT1156920		Manual, Owners		Appelez-nous	-
1	LIT884601		Literature Parts (list, Repair Parts)		Appelez-nous	-
1	LIT1158409		Sheet, Tech		Appelez-nous	-
2	1157775		Tube, Restrictor (42.00`` Length)		Appelez-nous	-
3	474013		Strainer, Tube		Appelez-nous	-
4	949896		Tube, Outlet (includes No.3)		Appelez-nous	-
5	949908		Condenser		Appelez-nous	-
10	1156819		Overload, Protector		Appelez-nous	-
11	1156815		Relay, Start		Appelez-nous	-
12	1157582		Cover, Terminal		Appelez-nous	-
13	938384		Retainer, Cover		Appelez-nous	-
14	998746		Evaporator		Appelez-nous	-
15	488624		Screw, 8 X 3/8 (4)		Appelez-nous	-
16	998867		Seal		Appelez-nous	-
17	488660		Nut, No.8 (4)   (Replaces: 486197)		Appelez-nous	-
18	488400		Screw, 1/4-28 X 1`` (3)		Appelez-nous	-
19	484136		Harness, Wire		Appelez-nous	-
20	1156748		Grommet (4)		Appelez-nous	-
21	1157584		Base		Appelez-nous	-
22	489015		Roll Pin (2)		Appelez-nous	-
23	951886		Glide (2)		Appelez-nous	-
24	998726		Roller (2)		Appelez-nous	-
25	876684		Compressor, Service (complete Assembly)		Appelez-nous	-
26	831282		Retainer, Cover		Appelez-nous	-
27	865068		Cover, Terminal		Appelez-nous	-
28	876686		Overload		Appelez-nous	-
29	549086		Spring, Overload		Appelez-nous	-
30	876689		Relay, Start		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
