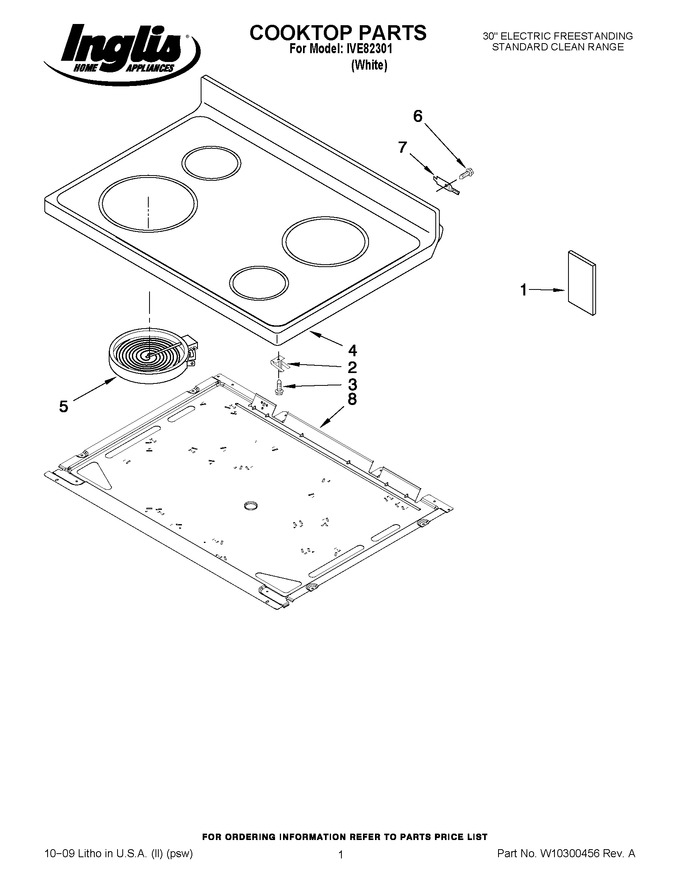

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10196159 | Installation Instructions |
|
- | |||||
| 1 | W10204317 | Owner`s Manual |
|
- | |||||
| 1 | 9757142 | Template,anti-tip (english/spanish) |
|
- | |||||
| 1 | 9757143 | Template,anti-tip (english/french) |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1 | W10289889 | Wiring Diagram (english) |
|
- | |||||
| 1 | W10289890 | Wiring Diagram (french) |
|
- | |||||
| 2 | WPW10225448 | Spring, Locator (Replaces: W10162042) |
|
Immediately | $ 10.40 | ||||
| 3 | WP3196170 | Screw (Replaces: 3196170) |
|
$ 7.55 | |||||
| 4 | WPW10254671 | Cooktop (white) (Replaces: W10202166) |
|
$ 715.27 | |||||
| 5 | W11517959 | Element, Surface (lf - 2400 W) (Replaces: W10169799) |
|
Immediately | $ 134.44 | ||||
| 5 | W10823711 | Element, Surface (lr/rf - 1200 W) (Replaces: 8523698) |
|
Immediately | $ 204.39 | ||||
| 5 | W10823698 | Element, Surface (rr 1800w) (Replaces: 8523696) |
|
Immediately | $ 195.12 | ||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 7 | WP3195060 | Hinge, Cooktop (2) (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 8 | W10170526 | Pan, Radiant |
|
$ 270.57 |
