SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Icemaker Parts


06 - Freezer Liner Parts


07 - Refrigerator Door Parts


08 - Dispenser Front Parts

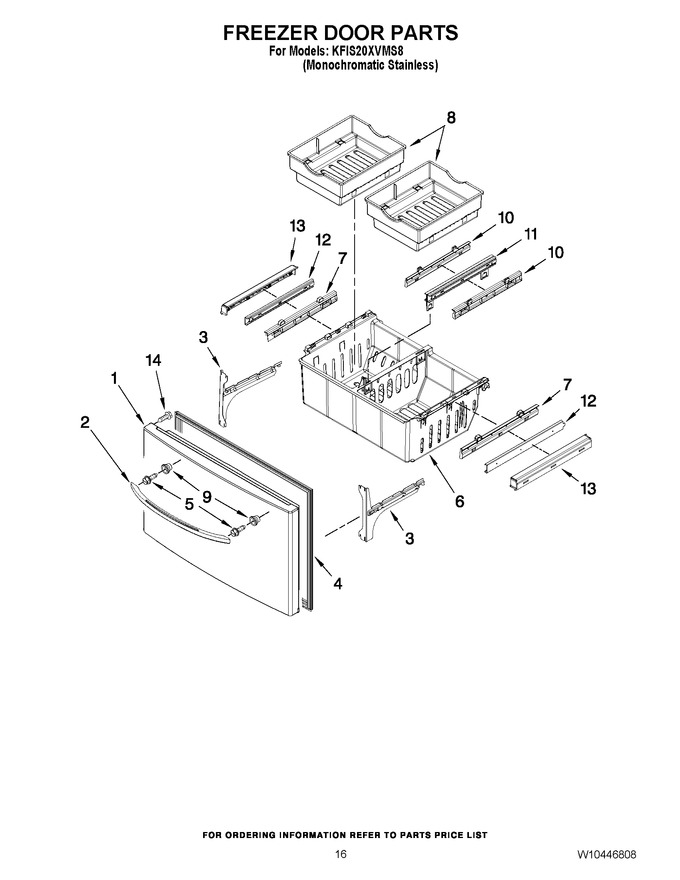

09 - Freezer Door Parts


10 - Unit Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12977862S		Freezer Door (stainless)		Appelez-nous	-
2	WPW10314517K		Handle, Door (stainless)   (Replaces: W10314517)				$ 243.37
3	WPW10330991		Bracket, Door Slide (left)   (Replaces: W10330991)				$ 164.31
3	WPW10330993		Bracket, Door Slide (right)   (Replaces: W10330993)				$ 166.09
4	WPW10714545		Gasket, Door (apollo Grey)   (Replaces: W10164045)				$ 323.60
5	W10290759		Screw, Handle				$ 5.83
6	13002801SP		Bin, Lower		Appelez-nous	-
7	W10187469		Adapter, Bin (outer)   (Replaces: 13002603SP)				$ 92.28
8	W10184227		Bin, Upper   (Replaces: 13002402)			Immediately	$ 122.12
9	WP67006113		Mount, Handle   (Replaces: 13001201)			Immediately	$ 12.56
10	W10184223		Adapter, Bin (inner)   (Replaces: 13002604SP)				$ 97.14
11	W10235358		Bracket/glide Assembly				$ 318.09
12	WPW10235368		Glide, Upper   (Replaces: W10235368)				$ 335.82
13	W10826790		Retainer, Glide (left)   (Replaces: 13002701SP)				$ 62.48
13	W10826791		Retainer, Glide (right)   (Replaces: 13002702SP)				$ 62.48
14	WP98165		Screw, Bracket   (Replaces: 12990521)				$ 8.57
