Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/P Liner (not A Serviceable Part) Appelez-nous -
2 W10175967 Escutcheon, Meat Pan Control Special Order $ 77.20

3 2182757 Slide, Meat Pan Control Special Order $ 75.15

4 2257741 Louver Appelez-nous -
5 W11239891 Light Lens   (Replaces: W10242623) Special Order $ 101.52

6 W10759522 Screw   (Replaces: 486298) Special Order $ 8.24

7 WP2256085 Clip   (Replaces: 2256085) Special Order $ 36.10

8 WP488488 Screw   (Replaces: 489290) Special Order $ 8.52

9 WPW10151374 Air Diffuser Assembly   (Replaces: W10151374) In-Stock Immediately $ 104.77

10 2152019 Air Diffuser Cover Special Order $ 90.33

11 W10252495 Cover, Conduit Appelez-nous -
12 4387478 Socket   (Replaces: 2162085) In-Stock Immediately $ 115.67

13 W11679940 Light Bulb   (Replaces: W10311505) In-Stock Immediately $ 11.30

14 2198479 Light Lens Appelez-nous -

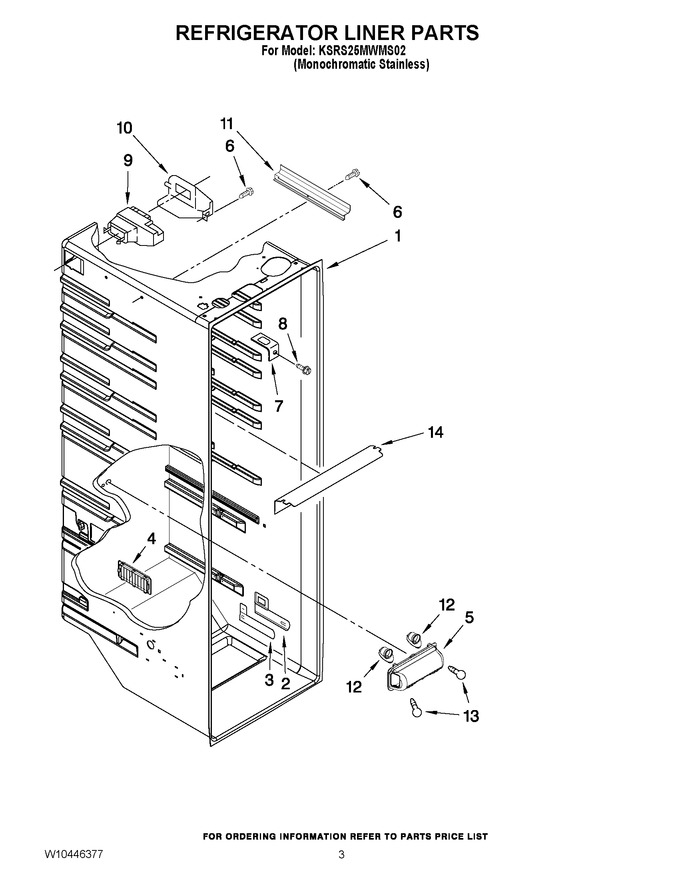

    View Diagram in Separate Window     Print Icon   Print Part List
