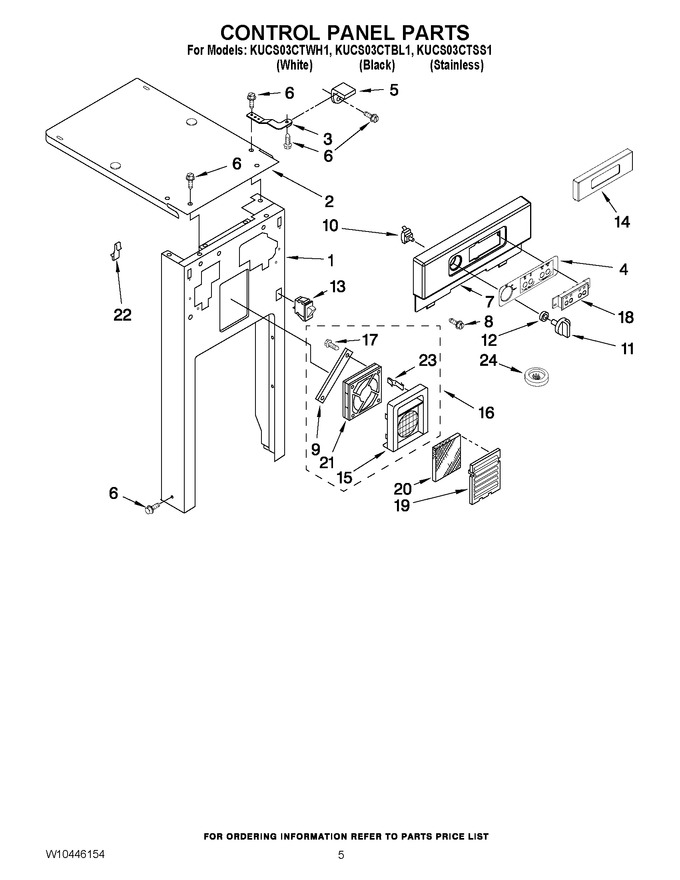

SELECT A DIAGRAM

01 - Motor And Drive Parts


02 - Frame Parts


03 - Powerscrew And Ram Parts


04 - Container Parts


05 - Control Panel Parts


06 - Accessory Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9871072		Panel, Front Frame (black)				$ 246.38
1	9871073		Panel, Front Frame (white)		Appelez-nous	-
2	9871825		Cover, Top		Appelez-nous	-
3	W11729437		Bracket, Retainer   (Replaces: 9871993)			Immediately	$ 23.31
4	9872325S		Insert, Escutcheon (white)   (Replaces: 9872325W)		Appelez-nous	-
4	9872325S		Insert, Escutcheon (stainless)		Appelez-nous	-
4	9872325B		Insert, Escutcheon (black)		Appelez-nous	-
5	WP780239		Bracket, Retainer (alternate)   (Replaces: 780239)				$ 27.17
6	WP489478		Screw   (Replaces: W10001260)				$ 7.75
7	9872144B		Escutcheon, Control (black)		Appelez-nous	-
7	9872144W		Escutcheon, Control (white)		Appelez-nous	-
8	246131		Screw		Appelez-nous	-
9	4152703		Strap, Fan				$ 71.73
10	675382		Switch, Rotary Start-run   (Replaces: 608824)				$ 234.74
11	WP9871800		Knob, Rotary Switch (black)   (Replaces: 9871800)				$ 61.62
11	WP9871799		Knob, Rotary Switch (white)   (Replaces: 9871799)				$ 64.03
12	WP777383		Nut, Rotary Switch   (Replaces: 777383)				$ 11.60
13	9871829		Switch, Drawer				$ 89.48
14	9872162S		Cover, Console (stainless Model Only)		Appelez-nous	-
15	9871893		Compartment, Air Freshener   (Replaces: 4151442)				$ 331.75
16	9871893		Fan Mount Assembly				$ 331.75
17	WP3351614		Screw   (Replaces: 780034)			Immediately	$ 6.95
18	9872148		Switch Assembly		Appelez-nous	-
19	9870911		Cover, Air Freshener (white)				$ 49.04
19	WP9871099		Cover, Air Freshener (black)   (Replaces: 9871099)				$ 68.24
20	WP4151750		Filter, Charcoal   (Replaces: 4151750)				$ 17.71
21	9871893		Fan, Filter   (Replaces: 9871051)				$ 331.75
22	4151897		Clip, Wire				$ 7.05
23	4151897		S-clip				$ 7.05
24	W10540355		Deodorizer, Stick Up   (Replaces: 9872166GA)				$ 15.13

    View Diagram in Separate Window       Print Part List
