SELECT A DIAGRAM

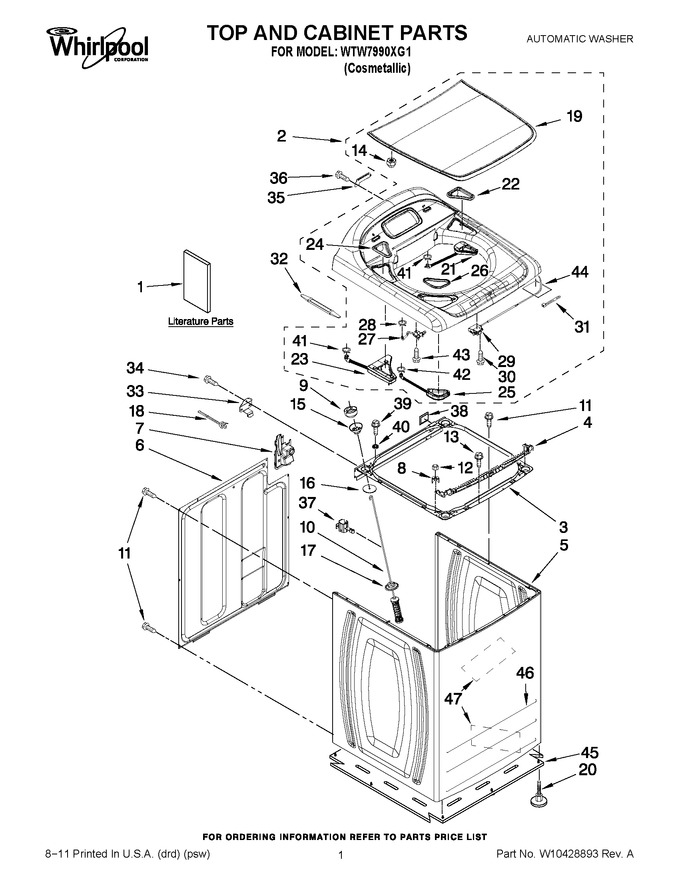

01 - Top And Cabinet Parts


02 - Control Panel Parts


03 - Motor, Basket And Tub Parts


04 - Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10312006		Installation Instructions- Sound Shield		Appelez-nous	-
1	W10386857		Energy Guide		Appelez-nous	-
1	W10329226		Tech Sheet		Appelez-nous	-
1	W10240438		Installation Instructions (english/french)		Appelez-nous	-
1	W10240439		Installation Instructions (spanish)		Appelez-nous	-
1	W10330930		Use & Care Guide		Appelez-nous	-
2	WPW10405507		Top & Console Assembly (includes Items 26 & 27 On Page 3)   (Replaces: W10405507)				$ 2,841.40
3	W10162416		Frame Assembly, Cabinet Top (includes Item 38)		Appelez-nous	-
4	W10285716		Bracket-support, Front		Appelez-nous	-
5	W10297810		Cabinet		Appelez-nous	-
6	8566090		Panel, Rear				$ 131.63
7	WPW10160572		Retainer, Drain Hose Storage   (Replaces: W10160572)				$ 8.58
8	W10285737		Bracket, Lower Top Retention		Appelez-nous	-
9	W10198919		Ball, Suspension (set Of 4 - Includes Item 15)   (Replaces: W10111536)				$ 150.90
10	W10247710		Damper Assembly, Tub Suspension (set Of 4-includes Items 9, 15, 16 & 17)   (Replaces: W10256514)			Immediately	$ 185.21
11	WP489069		Screw, 8-18 X 3/8   (Replaces: 1157158)			Immediately	$ 8.40
12	90984		Nut, 5/16 X 18   (Replaces: 3934662)		Appelez-nous	-
13	W10324301		Screw, 8-18 X 1/2		Appelez-nous	-
14	W10300818		Nut, Acorn (m6-1.0 X 10)		Appelez-nous	-
15	W10198919		Bushing, Suspension (set Of 4-includes Item 9)   (Replaces: W10167599)				$ 150.90
16	WP8577896		Washer, Suspension Umbrella   (Replaces: 8577896)				$ 8.12
17	WP8564017		Cup, Suspension   (Replaces: 8564017)				$ 28.79
18	WPW10155270		Cable Tie   (Replaces: W10155270)				$ 7.02
19	W10285675		Lid, Glass Assembly		Appelez-nous	-
20	W10240448		Foot Assembly, Leveling				$ 5.85
21	W10283377		Dispenser, Fabric Softener		Appelez-nous	-
22	W10285707		Bezel, Fabric Softener Dispenser		Appelez-nous	-
23	W10283967		Dispenser, Bleach		Appelez-nous	-
24	W10285695		Bezel, Bleach Dispenser		Appelez-nous	-
25	W10283970		Dispenser, Detergent		Appelez-nous	-
26	W10285701		Bezel, Detergent Dispenser		Appelez-nous	-
27	W10283978		Nozzle Assembly, Fresh Water				$ 104.61
28	WP596669		Clamp, Hose   (Replaces: W10096852)			Immediately	$ 8.82
29	WPW10619844		Lock Assembly, Lid   (Replaces: W10059230)			Immediately	$ 155.46
30	W10296801		Screw, 8-18 X 3/4				$ 10.79
31	W10035712		Cable Tie		Appelez-nous	-
32	W10285826		Tool, Trim Stick				$ 30.78
33	W10285717		Hinge, Rear		Appelez-nous	-
34	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
35	8563941		Cover, Harness				$ 87.73
36	W10303701		Screw, 8-18 X 3/4		Appelez-nous	-
37	8543784		Bracket, Drain Hose				$ 37.38
38	8578386		Shield, Wire Harness		Appelez-nous	-
39	WP489474		Screw, 8-18 X 1.00   (Replaces: 489474)			Immediately	$ 8.55
40	W10323797		Spacer, Rear Locator		Appelez-nous	-
41	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 8.82
42	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 8.82
43	W11700520		Screw, 10-16 X 9/16   (Replaces: 3400061)				$ 14.28
44	W11113654		Pad, Sound Dampening   (Replaces: W10212660)				$ 23.29
45	8565184		Absorber - Sound, Bottom				$ 31.02
46	8578225		Absorber - Sound, Cabinet Front				$ 26.49
47	W10123957		Panel, Dampening		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
