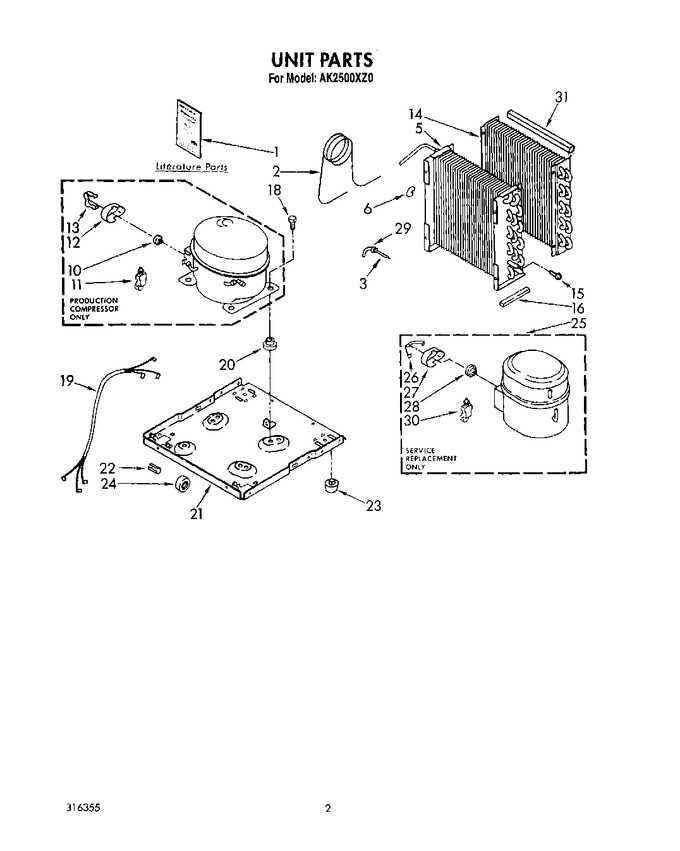

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT1158219		Wiring Diagram		Appelez-nous	-
1	LIT1162739		Manual, Owners		Appelez-nous	-
1	LIT4316355		Literature Parts (list, Repair Parts)		Appelez-nous	-
1	LIT1162737		Sheet, Tech		Appelez-nous	-
2	1162154		Tube, Restrictor (36.00`` Length)		Appelez-nous	-
3	1162037		Strainer		Appelez-nous	-
5	1162152		Condenser		Appelez-nous	-
6	855199		Bend, Return		Appelez-nous	-
10	1158790		Overload, Protector		Appelez-nous	-
11	1158608		Relay, Start		Appelez-nous	-
12	1157582		Cover, Terminal		Appelez-nous	-
13	938384		Retainer, Cover		Appelez-nous	-
14	1162153		Evaporator		Appelez-nous	-
15	488624		Screw, 8 X 3/8 (4)		Appelez-nous	-
16	1162372		Seal		Appelez-nous	-
18	488400		Screw, 1/4-28 X 1`` (3)		Appelez-nous	-
19	484136		Harness, Wire		Appelez-nous	-
20	1156748		Grommet (4)		Appelez-nous	-
21	1157584		Base		Appelez-nous	-
22	489015		Roll Pin (2)		Appelez-nous	-
23	951886		Glide (2)		Appelez-nous	-
24	998726		Roller (2)		Appelez-nous	-
25	4317832		Compressor, Service (complete Assembly)		Appelez-nous	-
26	938384		Retainer, Cover		Appelez-nous	-
27	1157582		Cover, Terminal		Appelez-nous	-
28	1158790		Overload		Appelez-nous	-
29	854624		Bend, Return		Appelez-nous	-
30	1158608		Relay, Start		Appelez-nous	-
31	1162348		Seal, Evaporator Top		Appelez-nous	-
