SELECT A DIAGRAM

01 - Cover


03 - Door

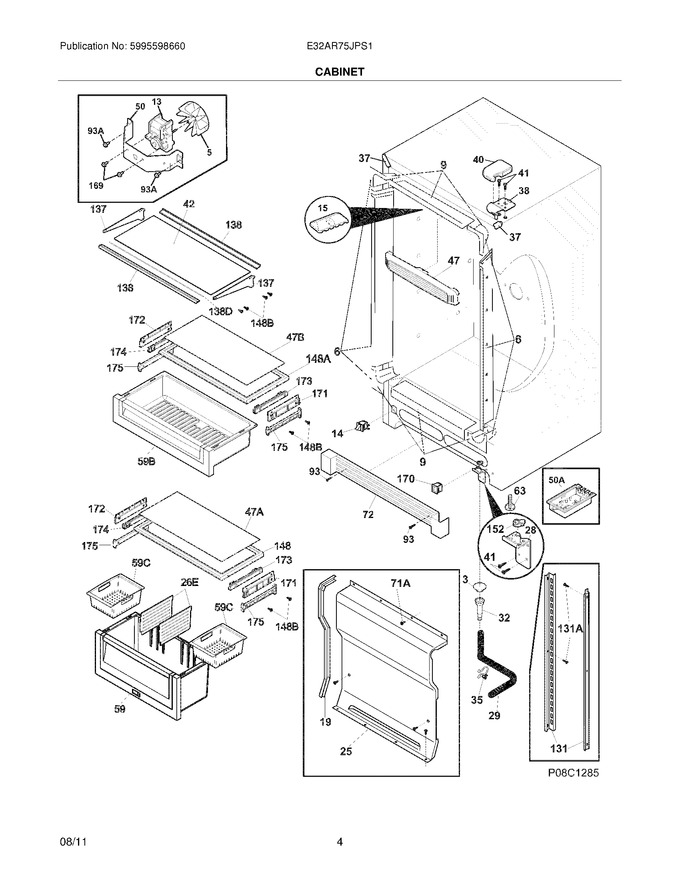

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 69.08
5	297259600		Fan Blade,evaporator				$ 9.50
6	297200900		Breaker Kit W/corners			Immediately	$ 78.72
9	297200100		Breaker Kit W/corners,32`` ,top And Bottom				$ 65.87
14	216822900		Switch,light/lamp ,ramp   (Replaces: 216822901)			Immediately	$ 77.96
19	216204902		Gasket-evap Cover			Immediately	$ 39.71
25	297099255		Cover-evaporator				$ 86.36
28	5303018740		Hinge-lower,rh W/bearing   (Replaces: 297302510)				$ 46.59
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 17.67
32	5304511843		Drain   (Replaces: 5308005500)				$ 15.27
35	216273000		Clip,wire Retainer				$ 24.91
37	297273903		Trim-cabinet Corner,silver Mist ,(2)		Appelez-nous	-
38	297303900		Hinge-upper,rh				$ 27.32
40	297304000		Cover-hinge,gray ,rh				$ 20.63
41	240578902		Screw,hex Head ,1/4-20x5/8 ,hinge   (Replaces: 297236250)			Immediately	$ 15.75
42	297296600		Shelf-glass				$ 115.03
47	297192903		Baffle,air   (Replaces: 297192900)			Immediately	$ 28.12
50	08013207		Bracket Fan Motor				$ 12.92
59	297259700		Bin,crisper ,assy				$ 487.67
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 42.65
72	5304510562		Grille/kickplate,32``   (Replaces: 297332100)				$ 244.59
93	216858001		Screw,8-18x.50 Ab ,no.10			Immediately	$ 12.05
131	297130200		Channel-shelf Mtg,side ,(2)				$ 55.99
137	297296511		Bracket-shelf   (Replaces: 297296510)				$ 95.29
138	297296300		Trim-shelf				$ 76.55
148	297288800		Frame,crisper-cover				$ 211.07
152	297302700		Bearing-hinge		Appelez-nous	-
169	216912401		Screw,hex Washer Head ,8-32 X 0.500 ,bracket Fan Mtr,(2)				$ 14.18
170	297280403		Valve,breather				$ 24.10
171	297092700		Bracket,crisper Cover ,rh				$ 61.51
172	297092701		Bracket,crisper Cover ,lh				$ 63.20
173	5304515502		Slide,crisper ,rh ,w/clips   (Replaces: 297291210)				$ 85.95
174	5304515501		Slide,crisper ,lh ,w/clips   (Replaces: 297291211)			Immediately	$ 86.75
175	297099500		Support-crisper			Immediately	$ 52.25
26E	297099400		Divider-crisper				$ 67.83
47A	297291300		Glass,crisper Cover			Immediately	$ 137.81
47B	297291301		Glass,crisper Cover			Immediately	$ 146.48
59B	297296800		Drawer,deli-assy				$ 243.15
59C	297260200		Bin,crisper ,tall				$ 110.09
71A	297146820		Screw,8-18ab X.470 Qx				$ 7.33
93A	241500305		Screw, Self Pierce,no.8 ,18x.63   (Replaces: 297174300)				$ 3.37
F13	297309000		Motor,fan ,115 V   (Replaces: 297250000)			Immediately	$ 61.47
F131	297146821		Screw,th ,8-18x.470 Ab Qx ,white ,(6)				$ 4.94
F138	297350900		Gasket,shelf				$ 20.09
F148	297288801		Frame,deli Drawer				$ 245.94
F148	297142600		Screw,blunt ,8-32 X 5/8				$ 14.46
F15	241891103		Light-led				$ 59.85
F50A	241852501		Clip,wiring Harness				$ 17.33
F50A	241891605		Board-led Power		Appelez-nous	-
NI	297333610		Trim Kit,built In ,dual ,complete		Appelez-nous	-
NI	297164651		Bracket,rh Leg Levelor				$ 17.51
NI	297164650		Bracket,lh Leg Levelor				$ 18.43
NI	297305500		Clip,crisper				$ 13.42
NI	297330202		Energy Guide		Appelez-nous	-
NI	125963-48		Insulation,24`` ,drain Tube   (Replaces: 297001704)			Immediately	$ 65.73
NI	297333510		Trim Kit,built In ,single ,complete		Appelez-nous	-
NI	216327800		Clip,wire		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
