SELECT A DIAGRAM

01 - Cover


03 - Door

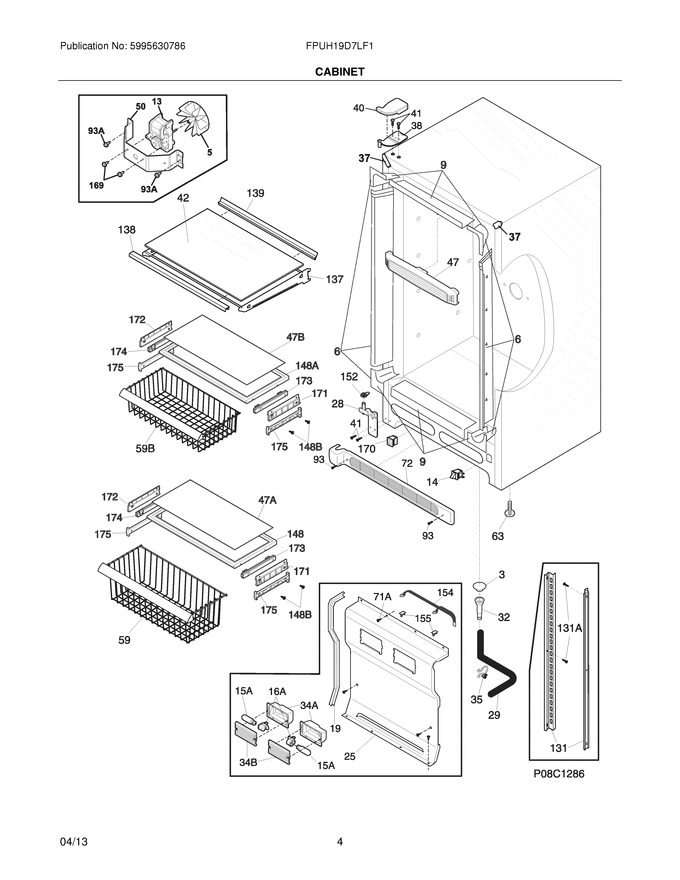

05 - Cabinet


07 - System


09 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 69.08
5	297259600		Fan Blade,evaporator				$ 9.50
6	297200900		Breaker Kit W/corners			Immediately	$ 78.72
9	297200100		Breaker Kit W/corners,32`` ,top And Bottom				$ 65.87
14	216822900		Switch,light/lamp ,ramp   (Replaces: 216822901)			Immediately	$ 77.96
19	216204902		Gasket-evap Cover			Immediately	$ 39.71
25	297099254		Cover-evaporator				$ 97.13
28	5303018741		Hinge-lower,lh W/bearing   (Replaces: 297302511)			Immediately	$ 46.80
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 17.67
32	5304511843		Drain   (Replaces: 5308005500)				$ 15.27
35	216273000		Clip,wire Retainer				$ 24.91
37	297273903		Trim-cabinet Corner,silver Mist ,(2)		Appelez-nous	-
38	297303901		Hinge-upper,lh				$ 23.49
40	297304001		Cover-hinge,gray ,lh				$ 73.00
41	240578902		Screw,hex Head ,1/4-20x5/8 ,hinge   (Replaces: 297236250)			Immediately	$ 15.75
42	297265900		Glass-shelf				$ 173.50
47	297192903		Baffle,air   (Replaces: 297192900)			Immediately	$ 28.12
50	08013207		Bracket Fan Motor				$ 12.92
59	297270000		Basket,assy Bottom				$ 214.52
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 42.65
72	297036907		Grille/kickplate,32`` ,gray   (Replaces: 297036904)				$ 43.65
93	216858001		Screw,8-18x.50 Ab ,no.10			Immediately	$ 12.05
131	297130200		Channel-shelf Mtg,side ,(2)				$ 55.99
137	297050600		Frame-shelf,cantilever ,(2)			Immediately	$ 199.21
138	297261400		Trim-shelf,front				$ 33.18
139	297261500		Trim-shelf,rear				$ 26.04
148	297271703		Frame,crisper-cover ,btm				$ 204.59
152	297302700		Bearing-hinge		Appelez-nous	-
154	297053000		Wire,jumper				$ 57.42
155	30534600		Clip,wire   (Replaces: 5303313703)				$ 4.21
169	216912401		Screw,hex Washer Head ,8-32 X 0.500 ,bracket Fan Mtr,(2)				$ 14.18
170	297280403		Valve,breather				$ 24.10
171	297092700		Bracket,crisper Cover ,rh				$ 61.51
172	297092701		Bracket,crisper Cover ,lh				$ 63.20
173	5304517648		Slide-basket,rh ,w/clips   (Replaces: 297291200)				$ 80.33
174	5304517649		Slide-basket,lh ,w/clips   (Replaces: 297291201)				$ 86.75
175	297099500		Support-crisper			Immediately	$ 52.25
15A	241552802		Light Bulb/lamp,short   (Replaces: 297048600)			Immediately	$ 59.42
16A	297139501		Socket,light/lamp ,25 W				$ 21.69
34A	297053102		Shield-light				$ 31.76
34B	297053200		Lens,light				$ 48.83
47A	297102705		Glass,crisper Cover				$ 156.71
47B	297102704		Glass,crisper Cover				$ 163.07
59B	297269700		Basket,assy-mid Level				$ 203.23
71A	297146820		Screw,8-18ab X.470 Qx				$ 7.33
93A	241500305		Screw, Self Pierce,no.8 ,18x.63   (Replaces: 297174300)				$ 3.37
F13	297309000		Motor,fan ,115 V   (Replaces: 297250000)			Immediately	$ 72.84
F131	297146821		Screw,th ,8-18x.470 Ab Qx ,white ,(6)				$ 4.94
F148	297142600		Screw,blunt ,8-32 X 5/8				$ 14.46
F148	297271704		Frame,crisper ,mid-level				$ 189.24
NI	297305500		Clip,crisper				$ 13.42
NI	297164651		Bracket,rh Leg Levelor				$ 17.51
NI	125963-48		Insulation,24`` ,drain Tube   (Replaces: 297001704)			Immediately	$ 65.73
NI	297330100		Energy Guide		Appelez-nous	-
NI	297164650		Bracket,lh Leg Levelor				$ 18.43
NI	216327800		Clip,wire		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
