SELECT A DIAGRAM

01 - Cover

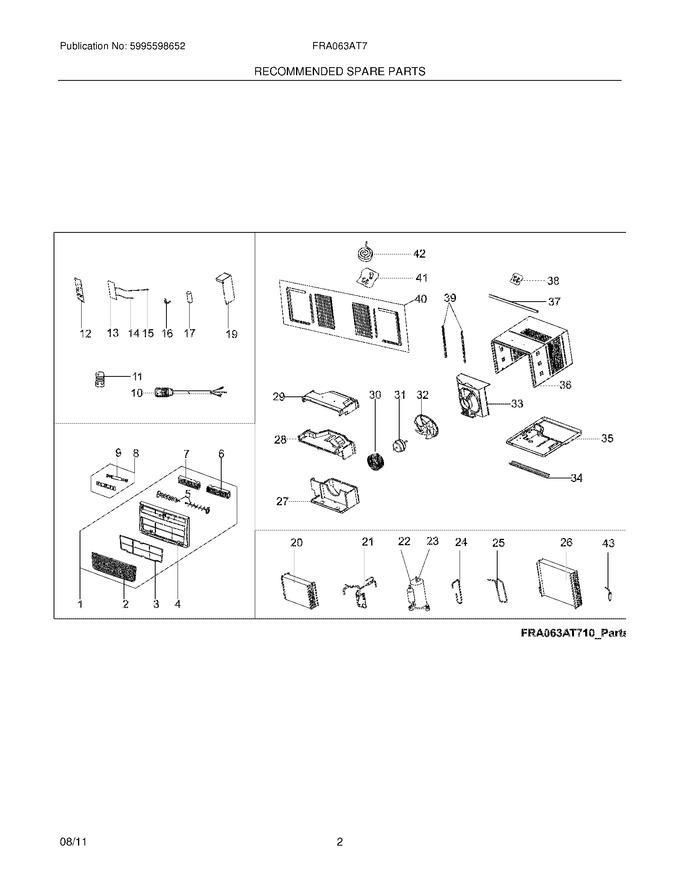

03 - Recommended Spare Parts


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304477055		Front Assembly,complete Panel		Appelez-nous	-
2	5304477047		Panel,front Grille ,tilt-out				$ 28.04
3	5304536669		Filter,air ,plastic Frame   (Replaces: 5304477048)				$ 9.48
4	5304477056		Frame,front Assembly		Appelez-nous	-
5	5304477050		Louver,vertical		Appelez-nous	-
6	5304477051		Louver,horizontal ,right		Appelez-nous	-
7	5304477052		Louver,horizontal ,left		Appelez-nous	-
8	5304476799		Pc Board,diaplay/input		Appelez-nous	-
9	5304482356		Wire		Appelez-nous	-
12	5304477053		Cover,electrical Box		Appelez-nous	-
16	5304471203		Strap,capacitor Clamp		Appelez-nous	-
19	5304476551		Control Box		Appelez-nous	-
27	5304476557		Scroll,blower Housing ,bottom		Appelez-nous	-
28	5304476558		Scroll,blower Housing ,middle		Appelez-nous	-
29	5304476559		Scroll,blower Housing ,top		Appelez-nous	-
32	5304504732		Fan Blade,axial Flow   (Replaces: 5304483089)		Appelez-nous	-
33	5304483090		Shroud,condenser/fan		Appelez-nous	-
34	5304483091		Rail,,shutter Track ,bottom		Appelez-nous	-
35	5304483092		Base,unit Chassis		Appelez-nous	-
36	5304483093		Cabinet,wrapper/sleeve		Appelez-nous	-
37	5304477054		Rail,shutter Track ,top				$ 50.09
38	5304472191		Screw Kit,top Rail Mount				$ 16.22
39	5304476523		Retainer,shutter ,cabinet Sides				$ 6.54
40	5304476524		Window Filler Kit,slider Panels ,accordion				$ 20.90
41	5304472192		Hardware,mounting ,screws/locks				$ 8.49
42	5304472211		Seal Kit,foam ,sash Filler				$ 36.12
F10	5304476515		Power Cord,electric ,lcdi		Appelez-nous	-
F11	5304476802		Remote Control,transmitter				$ 115.67
F13	5304476183		Pc Board,main ,control/power		Appelez-nous	-
F14	5304521225		Sensor,evap Temp ,thermistor   (Replaces: 5304471275)		Appelez-nous	-
F15	5304476053		Sensor,ambient Temp ,thermistor				$ 28.93
F17	5304476049		Capacitor,compressor		Appelez-nous	-
F20	5304483082		Evaporator,with Cap Tube		Appelez-nous	-
F21	5304483083		Tube,capillary		Appelez-nous	-
F22	5304483084		Compressor,with Overload		Appelez-nous	-
F23	5304483085		Overload Protector,compressor		Appelez-nous	-
F24	5304483086		Tube,suction		Appelez-nous	-
F25	5304483087		Tube,discharge		Appelez-nous	-
F26	5304483088		Condenser		Appelez-nous	-
F30	5304476051		Blower Wheel,centrifugal		Appelez-nous	-
F31	5304476050		Motor,fan				$ 210.13
F43	5304476201		Filter, Dryer				$ 38.98

    View Diagram in Separate Window       Print Part List
