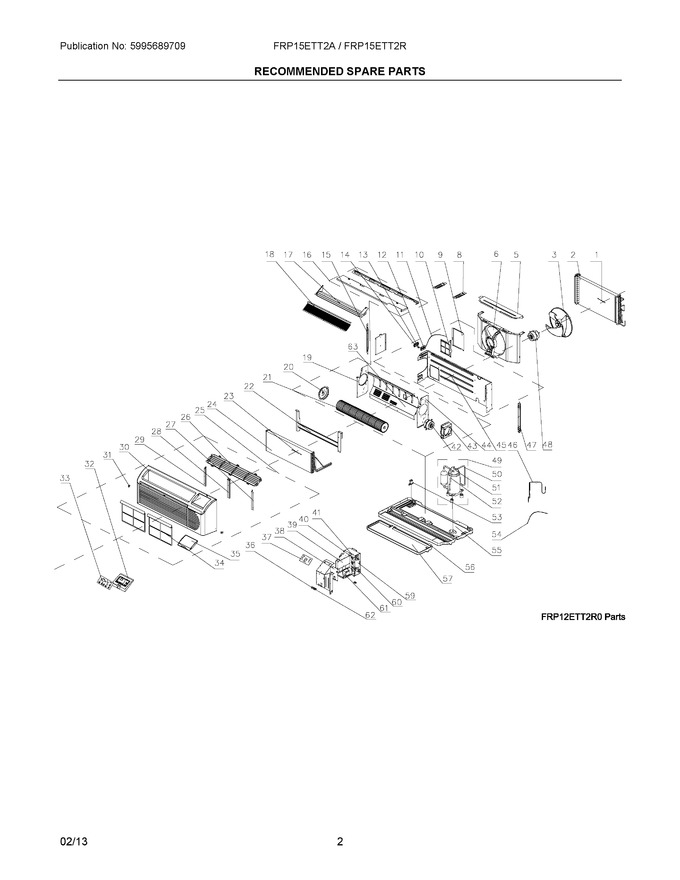

02 - Recommended Spare Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304483971 | Sensor, Ambient, Outdoor, Evap Intake |
|
- | |||||
| 2 | 5304484850 | Condenser |
|
- | |||||
| 3 | 5304483797 | Fan Blade, Propeller, Axial Flow |
|
- | |||||
| 5 | 5304483980 | Cover, Shroud, Condenser Fan |
|
- | |||||
| 6 | 5304483979 | Shroud, Condenser/fan |
|
- | |||||
| 8 | 5304484846 | Support, Shroud/bulkhead, Plate |
|
- | |||||
| 9 | 5304483798 | Door, Vent Cover, Air Inlet |
|
- | |||||
| 10 | 5304483799 | Filter, Air |
|
- | |||||
| 11 | 5304484112 | Control Arm, Linkage, Vent Door |
|
- | |||||
| 12 | 5304483802 | Cover, Lever, Lower |
|
- | |||||
| 13 | 5304483982 | Lever, Handle |
|
- | |||||
| 14 | 5304483803 | Cover, Lever, Upper |
|
- | |||||
| 15 | 5304484812 | Support, Bulkhead, Outer Left |
|
- | |||||
| 16 | 5304484847 | Cover, Blower Assy, Top Plate |
|
- | |||||
| 17 | 5304483805 | Diffuser, Air Vent, Evap Cover |
|
- | |||||
| 18 | 5304483806 | Grille, Evap Discharge, Rear |
|
- | |||||
| 19 | 5304483807 | Panel, Blower Assy, Left Side |
|
- | |||||
| 20 | 5304483809 | Housing, Bearing Block |
|
- | |||||
| 21 | 5304483810 | Blower Wheel, Cross Flow Fan |
|
- | |||||
| 22 | 5304484829 | Heater, Electric |
|
- | |||||
| 23 | 5304459793 | Sensor, Ambient, Indoor, Evap Defrost |
|
$ 69.60 | |||||
| 24 | 5304483981 | Evaporator |
|
- | |||||
| 25 | 5304483812 | Front Assembly, Complete Panel |
|
- | |||||
| 26 | 5304483944 | Grille, Air Vent, W/louvers |
|
- | |||||
| 27 | 5304484086 | Track 1, Filter, Right Side |
|
- | |||||
| 28 | 5304484087 | Track 2, Filter, Center |
|
- | |||||
| 29 | 5304484088 | Track 3, Filter, Left Side |
|
- | |||||
| 30 | 5304483812 | Panel, Front Frame (Replaces: 5304483945) |
|
- | |||||
| 31 | 5304483946 | Clip, Mounting, Front Panel |
|
- | |||||
| 32 | 5304483947 | Frame, Control Panel, Lcd Cover |
|
- | |||||
| 33 | 5304483948 | Overlay, Control Panel, Membrane |
|
- | |||||
| 34 | 5304483949 | Filter, Air, (2) |
|
- | |||||
| 35 | 5304483961 | Cover, Remote Control |
|
- | |||||
| 36 | 5304483970 | Terminal, Wiring, 2 Connectors |
|
- | |||||
| 37 | 5304483952 | Pc Board, Display/input |
|
- | |||||
| 38 | 5304484830 | Pc Board, Processor, Low Voltage |
|
- | |||||
| 39 | 5304483954 | Pc Board, Main, High Voltage |
|
$ 252.32 | |||||
| 40 | 5304483968 | Capacitor, Blower Fan |
|
- | |||||
| 41 | 5304483956 | Capacitor, Fan Motor, Condenser |
|
- | |||||
| 43 | 5304483957 | Bracket, Motor Support |
|
- | |||||
| 44 | 5304483808 | Panel, Blower Assy, Right Side |
|
- | |||||
| 45 | 5304484089 | Bulkhead, Indoor/outdoor |
|
- | |||||
| 46 | 5304484831 | Tube, Capillary |
|
- | |||||
| 47 | 5304484815 | Support, Bulkhead, Outer Right |
|
- | |||||
| 48 | 5304483960 | Motor, Blower, Inside |
|
- | |||||
| 48 | 5304483888 | Motor, Blower Fan |
|
- | |||||
| 49 | 5304484832 | Compressor Assembly, W/fittings |
|
- | |||||
| 50 | 5304484833 | Tube, Discharge |
|
- | |||||
| 51 | 5304484834 | Overload Protector, Compressor |
|
- | |||||
| 52 | 5304484835 | Tube, Suction |
|
- | |||||
| 53 | 5304459477 | Valve, Drain |
|
- | |||||
| 54 | 5304484836 | Power Cord, Electric |
|
- | |||||
| 55 | 5304484837 | Base, Unit Chassis |
|
- | |||||
| 56 | 5304483965 | Tray, Drip Pan, Foam |
|
- | |||||
| 57 | 5304483966 | Baffle, Thermal, Metal, Insulator |
|
- | |||||
| 59 | 5304459757 | Capacitor, Compressor |
|
- | |||||
| 60 | 5304459674 | Terminal, Electric, Board 2-8 |
|
- | |||||
| 61 | 5304483969 | Transformer |
|
- | |||||
| 62 | 5304483950 | Connector, Wire, Wall Thermostat |
|
- | |||||
| 63 | 5304484567 | Duct, Air |
|
- | |||||
| NI | 5304490403 | Filter-dryer |
|
- |
