SELECT A DIAGRAM

01 - Cover


03 - Door

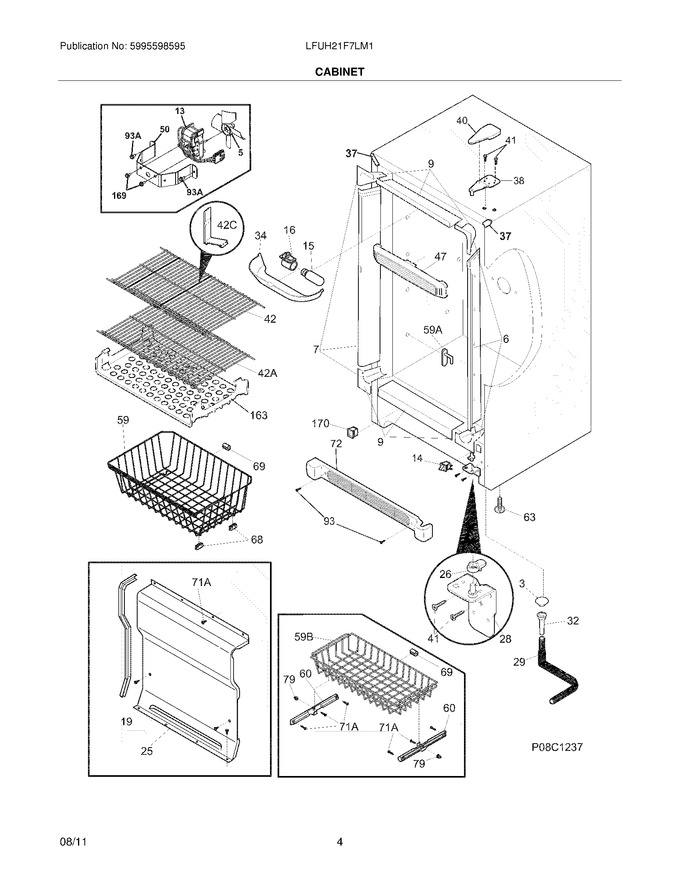

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 69.08
6	297200900		Breaker Kit W/corners			Immediately	$ 78.72
7	297201100		Breaker Kit W/corners,lock Catch				$ 89.57
9	297200100		Breaker Kit W/corners,32`` ,top And Bottom				$ 65.87
14	216822900		Switch,light/lamp ,ramp   (Replaces: 216822901)			Immediately	$ 77.96
15	5304517886		Light Bulb,short ,blue Tint ,40w   (Replaces: 297114000)			Immediately	$ 82.76
16	297139500		Socket,light/lamp				$ 20.09
19	216204902		Gasket-evap Cover			Immediately	$ 39.71
25	297099251		Cover-evaporator				$ 109.93
26	216503300		Ramp,door Closer				$ 9.80
28	297283900		Hinge-bottom,stepped Pin				$ 60.25
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 17.67
32	5304511843		Drain   (Replaces: 5308005500)				$ 15.27
34	297184400		Shield-light				$ 21.16
37	297273903		Trim-cabinet Corner,silver Mist ,(2)		Appelez-nous	-
38	297283803		Hinge-upper   (Replaces: 297283800)			Immediately	$ 21.69
40	297164404		Cover-hinge,silver Mist		Appelez-nous	-
41	240578902		Screw,tamper Proof ,1/4-20 X 5/8   (Replaces: 297236200)			Immediately	$ 15.75
42	297119701		Shelf,wire ,16.69x27.88 ,white ,(3)		Appelez-nous	-
47	297192903		Baffle,air   (Replaces: 297192900)			Immediately	$ 28.12
50	216394050		Bracket,fan Motor Mount				$ 25.28
59	5304497657		Basket   (Replaces: 297343500)				$ 135.45
60	297013500		Slide,shelf				$ 43.31
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 42.65
68	08009560		Glide, Basket				$ 39.17
69	5305878546		Bumper, Basket				$ 8.03
72	297198903		Grille/kickplate,32`` ,silver Mist		Appelez-nous	-
79	301036		Nut-insert   (Replaces: 3017666)				$ 17.67
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 12.05
163	297185300		Shelf,pizza				$ 90.45
169	216912401		Screw,hex Washer Head ,8-32 X 0.500 ,bracket Fan Mtr,(2)				$ 14.18
170	297280403		Valve,breather				$ 24.10
42A	297119601		Shelf,14.50x27.88		Appelez-nous	-
42C	297183700		Divider,white ,wire Shelf		Appelez-nous	-
59A	216486500		Stop-basket,(2)				$ 20.58
59B	297343700		Basket				$ 84.63
71A	297146820		Screw,8-18ab X.470 Qx				$ 7.33
93A	241500305		Screw, Self Pierce,no.8 ,18x.63   (Replaces: 297174300)				$ 3.37
F13	297309000		Motor,fan ,115 V   (Replaces: 297250000)			Immediately	$ 72.84
F5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 65.94
NI	297281200		Instructions,elect Guide ,precision		Appelez-nous	-
NI	216502400		Grommet-shelf Mtg				$ 18.48
NI	216327800		Clip,wire		Appelez-nous	-
NI	297164650		Bracket,lh Leg Levelor				$ 18.43
NI	297164651		Bracket,rh Leg Levelor				$ 17.51
NI	297089305		Energy Guide		Appelez-nous	-
NI	297257400		Label,start Guide				$ 2.98
NI	125963-48		Insulation,24`` ,drain Tube   (Replaces: 297001704)			Immediately	$ 65.73

    View Diagram in Separate Window       Print Part List
