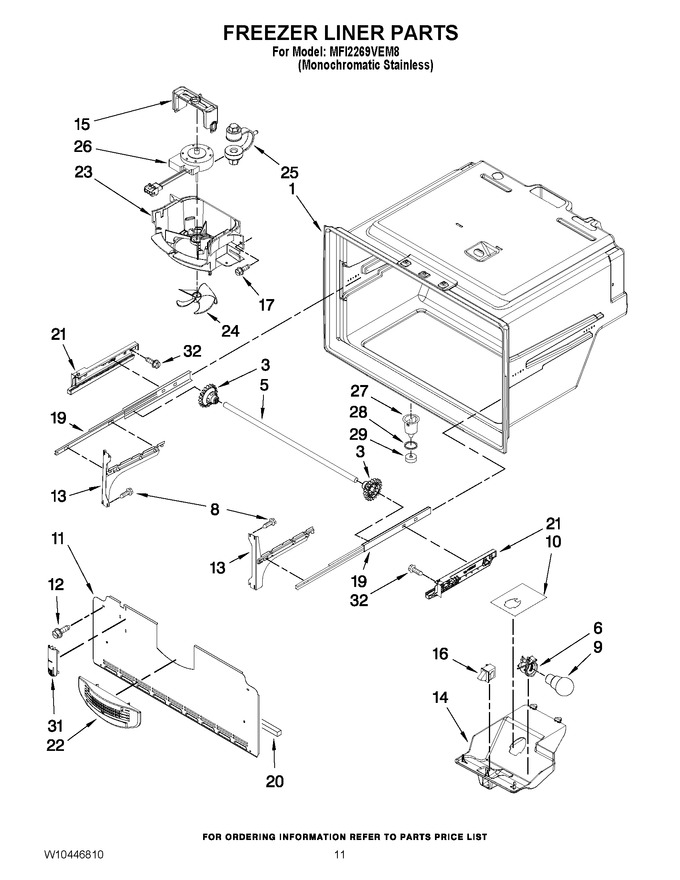

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 3 | 12002497 | Gear-(l & R) |
|
Immediately | $ 20.26 | ||||
| 5 | W11715937 | Shaft, Rack (Replaces: 12812902WD) |
|
$ 61.82 | |||||
| 6 | W11447232 | Socket, Light (Replaces: 12570701) |
|
Immediately | $ 12.48 | ||||
| 8 | WP98165 | Screw, Bracket (Replaces: 12990521) |
|
$ 7.71 | |||||
| 9 | W11679940 | Bulb, Light (Replaces: 2255743) |
|
Immediately | $ 10.17 | ||||
| 10 | W11702858 | Housing, Light (Replaces: 12476401V) |
|
$ 81.10 | |||||
| 11 | W10308422 | Cover, Evap |
|
$ 75.28 | |||||
| 12 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 13 | WPW10330995 | Bracket, Door Slide (right) (Replaces: W10330995) |
|
Immediately | $ 306.55 | ||||
| 13 | WPW10330994 | Bracket, Door Slide (left) (Replaces: W10330994) |
|
Immediately | $ 152.12 | ||||
| 14 | 13027902 | Module, Freezer Light |
|
- | |||||
| 15 | W11712696 | Clip, Fan Motor (Replaces: 12956601) |
|
Immediately | $ 11.02 | ||||
| 16 | W11396033 | Switch, Rocker (Replaces: 12466103) |
|
Immediately | $ 33.57 | ||||
| 17 | WP98165 | Screw, Fan Shroud To Basket (Replaces: 12990504) |
|
$ 7.71 | |||||
| 19 | W11658402 | Slide, Drawer (2) (Replaces: W10120018) |
|
Immediately | $ 202.03 | ||||
| 20 | W11159742 | Gasket, Foam (Replaces: A3189395) |
|
$ 25.54 | |||||
| 21 | WPW10284683 | Adapter (right) (Replaces: W10284683) |
|
$ 196.18 | |||||
| 21 | WPW10284682 | Adapter (left) (Replaces: W10284682) |
|
Immediately | $ 127.24 | ||||
| 22 | W11176847 | Grille, Air (Replaces: 12959901) |
|
$ 111.74 | |||||
| 23 | W11700329 | Shroud, Evap Fan (Replaces: 12951401) |
|
Immediately | $ 55.08 | ||||
| 24 | WP67006337 | Blade, Fan (evaporator) (Replaces: 12986101) |
|
Immediately | $ 95.05 | ||||
| 25 | W11676465 | Grommet, Fan Motor (2) (Replaces: 12951101) |
|
Immediately | $ 14.00 | ||||
| 26 | W10850438 | Motor, Evaporator Fan (Replaces: W10162809) |
|
Immediately | $ 340.61 | ||||
| 27 | W10815413 | Funnel, Drain (Replaces: D7753903) |
|
Immediately | $ 46.35 | ||||
| 28 | WPM0500703 | Seal, O Ring (Replaces: M0500703) |
|
$ 10.32 | |||||
| 29 | WPB8381501 | Gasket, Drain Tube (Replaces: B8381501) |
|
$ 7.00 | |||||
| 31 | WP67003924 | Cover, Thermistor (Replaces: 12815301) |
|
$ 7.39 | |||||
| 32 | WP489474 | Screw, Adapter (Replaces: 12990501) |
|
Immediately | $ 7.70 | ||||
| NI | 12952005 | Harness-fz Light (incl.thermistor) |
|
$ 137.93 |
