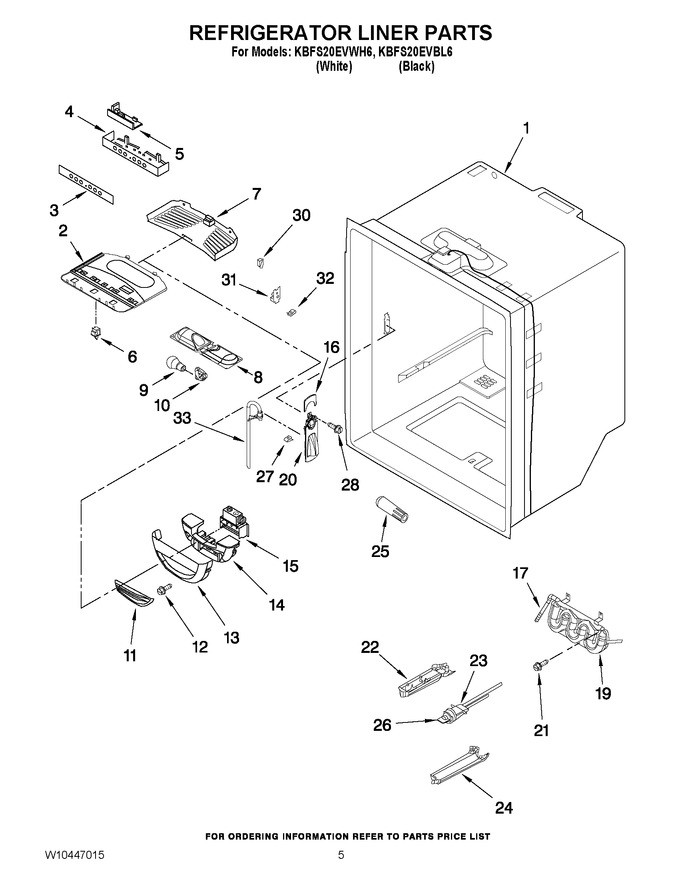

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 12806302 | Bracket, Control And Lights |
|
- | |||||
| 3 | WPW10317125 | Overlay (Replaces: W10317125) |
|
$ 262.66 | |||||
| 4 | W11416469 | Module, Control (Replaces: 12806405) |
|
Immediately | $ 234.84 | ||||
| 5 | WPW10428901 | Board, Control (Replaces: W10428901) |
|
$ 325.33 | |||||
| 6 | W11384469 | Switch, Light (Replaces: C3680310V) |
|
Immediately | $ 39.09 | ||||
| 7 | W11284721 | Cover, Light (Replaces: 12806501) |
|
$ 106.02 | |||||
| 8 | W10368228 | Housing, Light |
|
$ 33.15 | |||||
| 9 | W11679940 | Bulb, Light (2) (Replaces: 2255743N) |
|
Immediately | $ 11.30 | ||||
| 10 | W11447232 | Socket, Light (2) (Replaces: 12570701V) |
|
Immediately | $ 13.87 | ||||
| 11 | 67003900 | Insert, Damper Cover (Replaces: 12806801) |
|
Immediately | $ 8.55 | ||||
| 12 | W11772394 | Screw (2) (Replaces: 12990604) |
|
Immediately | $ 13.22 | ||||
| 13 | WP12806701 | Cover, Damper (Replaces: 12806701) |
|
$ 118.65 | |||||
| 14 | W11750607 | Insulation (Replaces: 13012402) |
|
$ 50.15 | |||||
| 15 | WPW10594329 | Control, Damper (includes Harness) (Replaces: W10207517) |
|
Immediately | $ 171.52 | ||||
| 16 | W11519867 | Facade, Dispenser (Replaces: 12707005) |
|
Immediately | $ 26.35 | ||||
| 17 | WP2300868 | Union, Tube (Replaces: 61006182) |
|
Immediately | $ 29.05 | ||||
| 19 | W11229977 | Tank, Water (Replaces: 12706112) |
|
Immediately | $ 101.58 | ||||
| 20 | 12706909 | Dispenser |
|
- | |||||
| 21 | WP67006415 | Screw (Replaces: 12990512) |
|
$ 8.38 | |||||
| 22 | WP67001668 | Plate, Filter (Replaces: 12704801) |
|
Immediately | $ 16.75 | ||||
| 23 | W11844302 | Head Water Filter Assembly (Replaces: 12590620) |
|
$ 154.88 | |||||
| 24 | WP12568001 | Cover, Filter (Replaces: 12568001) |
|
Immediately | $ 86.76 | ||||
| 25 | EDR4RXD1B | Filter, Water (Replaces: UKF8001) |
|
Immediately | $ 49.99 | ||||
| 26 | W11395888 | Plug, Filter Bypass (Replaces: 12664501SP) |
|
Immediately | $ 50.72 | ||||
| 27 | W10819546 | Clip, Facade (Replaces: B8390302) |
|
$ 13.14 | |||||
| 28 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 30 | WP12575501 | Switch, Limit (Replaces: 12575501) |
|
$ 72.35 | |||||
| 31 | 12707303SP | Plate, Switch (Replaces: 12707303) |
|
$ 80.42 | |||||
| 32 | 67002816 | Clip, Water Tube (Replaces: 12251001) |
|
$ 19.15 | |||||
| 33 | W11677725 | Guide, Water Line (Replaces: 12707206) |
|
Immediately | $ 24.76 | ||||
| NI | WPW10224292 | Harness, Controls (refrigerator) (includes Thermistor) (Replaces: W10224292) |
|
Immediately | $ 135.38 |
