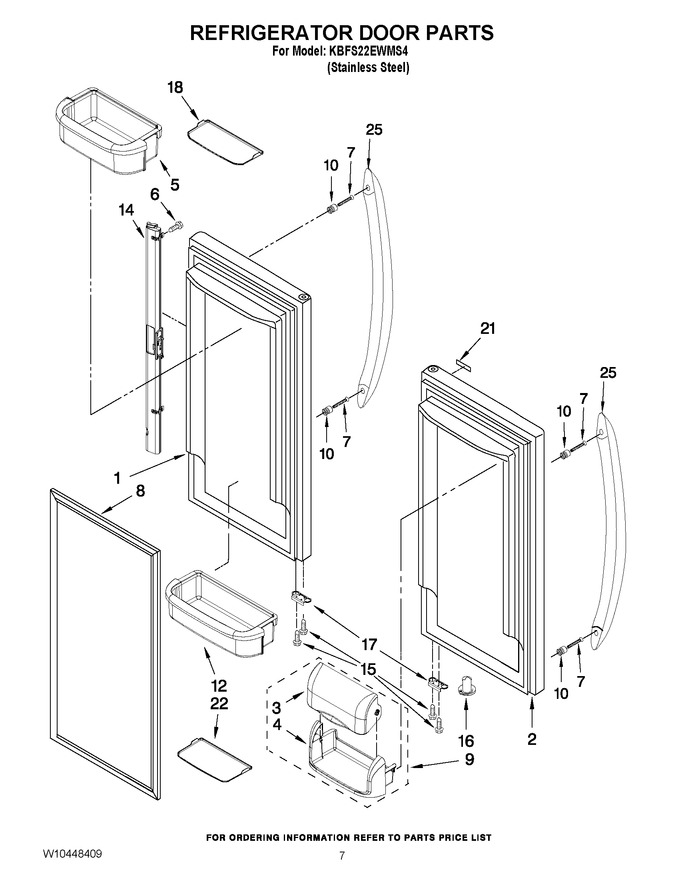

04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Icemaker Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13107827S		Door, Left (stainless Steel)		Appelez-nous	-
2	13107826S		Door, Right (stainless Steel)		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 82.67
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 88.01
5	W10351079		Bucket (small)				$ 33.25
5	WPW10371193		Bucket (medium)   (Replaces: W10371193)			Immediately	$ 78.86
6	W11214483		Screw   (Replaces: 12992601)			Immediately	$ 14.72
7	W10290759		Screw, Mount				$ 5.83
8	W10830283		Gasket, Door (stainless(lh))   (Replaces: W10218680)				$ 253.68
8	W10830162		Gasket, Door (stainless(rh))   (Replaces: W10179332N)			Immediately	$ 248.60
9	WP12744905		Assy, Dairy   (Replaces: 12744905V)				$ 113.99
10	WP67006113		Mount, Handle   (Replaces: 13001201)			Immediately	$ 12.56
12	12918702SP		Bucket (large)				$ 33.57
12	WPW10289489		Bucket (gallon)   (Replaces: W10289489)			Immediately	$ 88.59
14	WP12722803AP		Mullion, Door (apollo Grey)   (Replaces: 12722803AP)			Immediately	$ 189.01
15	WP98165		Screw   (Replaces: 12990504)				$ 8.57
16	WP12028505AP		Closure, Door (apollo Grey)   (Replaces: 12028505AP)			Immediately	$ 61.46
17	W11703060		Stop, Door (apollo Grey)   (Replaces: 12968202AP)				$ 15.46
18	W11408990		Gripper (small)   (Replaces: 12567323)			Immediately	$ 85.90
18	WPW10450021		Gripper (medium)   (Replaces: 12567321SP)			Immediately	$ 100.93
21	WPW10243391		Nameplate (stainless Steel)   (Replaces: W10243391)				$ 58.31
22	12567324		Gripper (large)		Appelez-nous	-
22	W10450004		Gripper (gallon)   (Replaces: 12567325)				$ 100.36
25	WPW10314517K		Handle, Door (stainless Steel)   (Replaces: W10314517N)				$ 243.37
