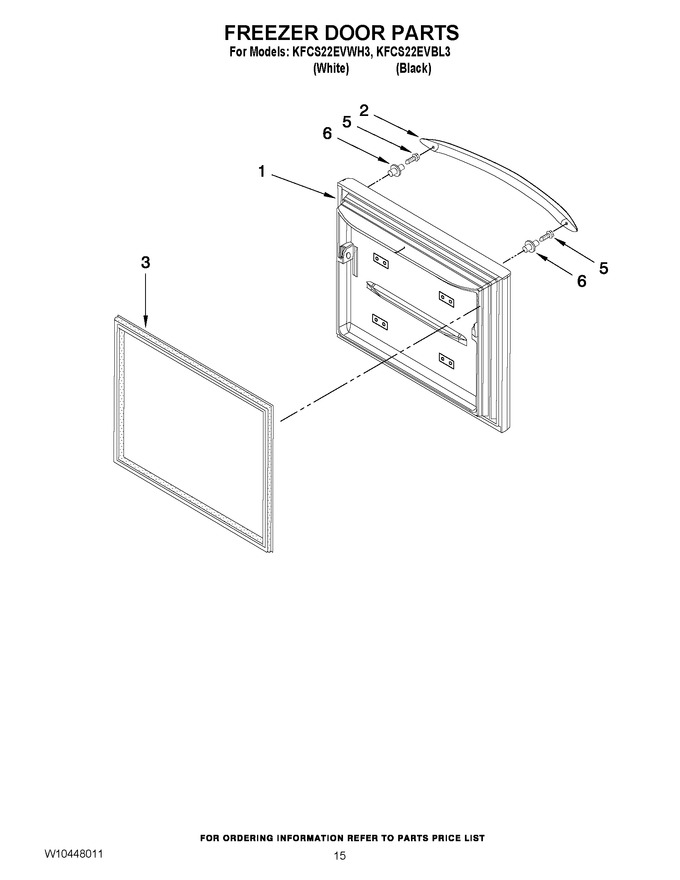

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13094916WQ | Door, Freezer (white) (Replaces: 13094907W) |
|
- | |||||
| 1 | 13094916BQ | Door, Freezer (black) (Replaces: 13094907B) |
|
- | |||||
| 2 | WPW10314515 | Handle, Door (white) (Replaces: W10314515N) |
|
$ 238.49 | |||||
| 2 | W10314516N | Handle, Door (black) |
|
- | |||||
| 3 | W10443319 | Gasket, Door (white) (Replaces: W10164040N) |
|
$ 281.76 | |||||
| 3 | W10436252 | Gasket, Door (black) (Replaces: W10164041N) |
|
Immediately | $ 362.28 | ||||
| 5 | W10290759 | Screw |
|
$ 5.83 | |||||
| 6 | WP67006113 | Mount, Handle (Replaces: 13001201) |
|
Immediately | $ 12.56 |
