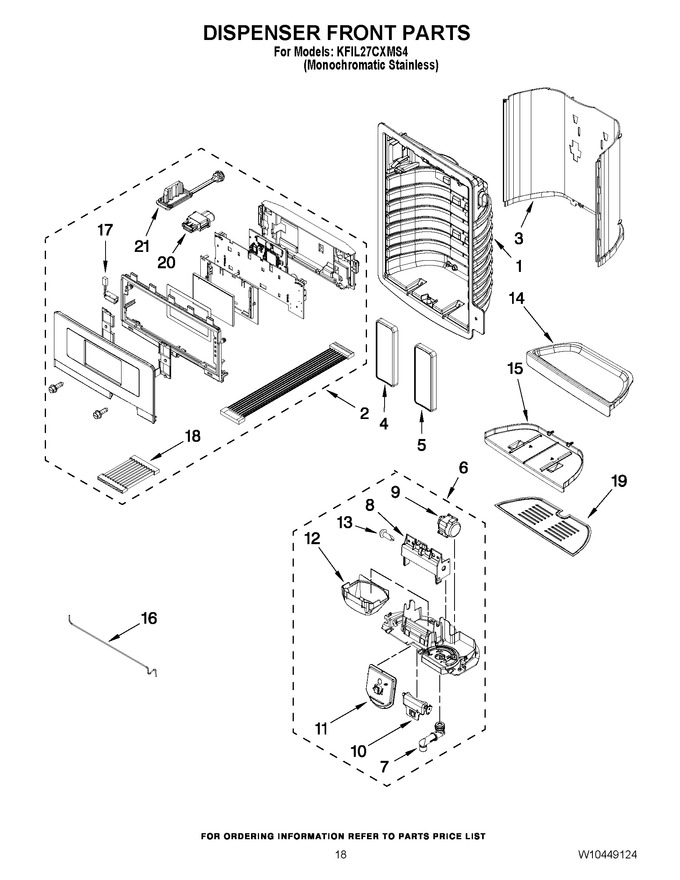

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10411106		Ui Assembly (stainless)		Appelez-nous	-
3	W10305890		False Wall, Dispenser (stainless)				$ 92.99
4	WPW10368730		Pad, Ice (nickel)   (Replaces: W10334786)			Immediately	$ 319.47
5	W10334810		Pad, Water (nickel)				$ 128.64
6	WPW10353552		Separator Assembly   (Replaces: W10353552)				$ 166.29
7	W11227371		Spigot   (Replaces: 2316647)				$ 136.38
8	W10174827		Bracket, Ice Door				$ 76.42
9	WPW10205979		Motor, Ice Door   (Replaces: W10205979)			Immediately	$ 107.60
10	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 41.85
11	WPW10317279		Door, Ice   (Replaces: W10317279)				$ 20.52
12	WPW10435760		Guide, Ice   (Replaces: W10339578)				$ 23.94
13	W10174818		Clip		Appelez-nous	-
14	WPW10305897		Tray, Dispenser (stainless)   (Replaces: W10305897)				$ 84.81
15	WPW10267863		Slide, Tray Dispenser (apollo Grey)   (Replaces: W10267863)				$ 73.22
16	W10314372		Tube, Water				$ 54.47
17	W11290115		Led   (Replaces: W10238083)				$ 84.45
18	W10193350		Harness, Jumper				$ 56.57
19	W10215957		Grate, Tray				$ 52.76
20	W10278979		Harness, Usb		Appelez-nous	-
21	W10309116		Cover, Usb		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
