View Diagram in Separate Window
Print Part List

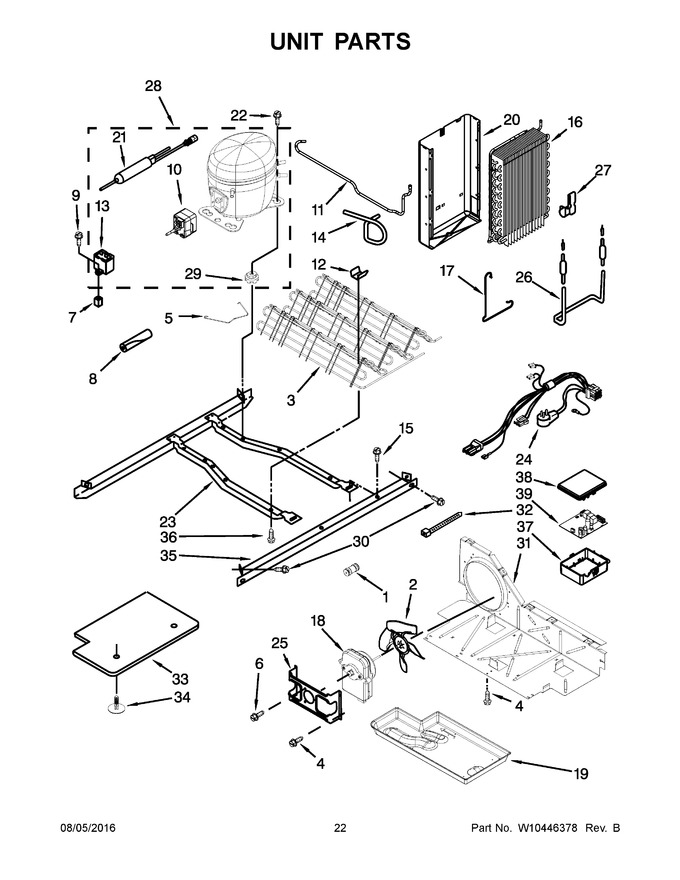

SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10334458 | Connector, Water Tube (Replaces: W10334458) |
|
$ 21.59 | |||||
| 2 | W10156818 | Blade, Fan (Replaces: 12825802) |
|
Immediately | $ 62.11 | ||||
| 3 | W10211163 | Assembly, Condenser |
|
$ 269.39 | |||||
| 4 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.83 | ||||
| 5 | W11661170 | Strap, Bale (Replaces: W10174384) |
|
Immediately | $ 11.30 | ||||
| 6 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 10.57 | |||||
| 7 | 509812 | Grommet, Screw |
|
- | |||||
| 8 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 20.30 | ||||
| 9 | W11693756 | Screw (Replaces: 488687) |
|
Immediately | $ 14.06 | ||||
| 10 | WPW10189190 | Start Device, Combination (start Relay And Overload) (Replaces: W10197427) |
|
Immediately | $ 131.29 | ||||
| 11 | W10210787 | Tube, Suction |
|
$ 235.47 | |||||
| 12 | W10683556 | Clip, Condenser (Replaces: 2311725) |
|
$ 18.46 | |||||
| 13 | WPW10662129 | Capacitor (Replaces: 2264017) |
|
Immediately | $ 58.86 | ||||
| 14 | W10274306 | Tube, Process (Replaces: W10171238) |
|
$ 13.71 | |||||
| 15 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.47 | |||||
| 16 | WP2188822 | Evaporator (Replaces: 2188822) |
|
Immediately | $ 339.85 | ||||
| 17 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 18 | WP2188874 | Motor, Condenser (Replaces: 2188874) |
|
Immediately | $ 113.96 | ||||
| 19 | WPW10614158 | Tray, Evaporator (Replaces: 1105523) |
|
Immediately | $ 113.18 | ||||
| 20 | WPW10194474 | Assembly, Heat Shield And Drain Pan (Replaces: W10194474) |
|
$ 119.53 | |||||
| 21 | WPW10143759 | Drier (Replaces: W10143759) |
|
Immediately | $ 30.78 | ||||
| 22 | W11661574 | Screw (Replaces: 489473) |
|
$ 13.61 | |||||
| 23 | 2304903 | Frame, Unit Mounting |
|
$ 233.03 | |||||
| 24 | 2310425 | Assembly, Unit Wire |
|
$ 219.95 | |||||
| 25 | WP2181929 | Bracket, Fan Mounting (Replaces: 2181929) |
|
$ 12.31 | |||||
| 26 | WP2323197 | Heater, Defrost (Replaces: 2188174) |
|
Immediately | $ 117.38 | ||||
| 27 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 28 | W10233961 | Compressor (also Order 876765 Tube Kit) (Replaces: W10189229) |
|
$ 612.76 | |||||
| 29 | W11661108 | Grommet (Replaces: 2183042) |
|
$ 14.49 | |||||
| 30 | 489340 | Bolt |
|
- | |||||
| 31 | W10332806 | Baffle, Air |
|
$ 102.82 | |||||
| 32 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 7.90 | |||||
| 33 | W11115203 | Cover, Unit (bottom) (Replaces: 2304898) |
|
$ 517.91 | |||||
| 34 | 489396 | Clip |
|
$ 10.72 | |||||
| 35 | W10207512 | Rail, Unit Mounting |
|
- | |||||
| 36 | W11544659 | Screw (Replaces: 8281232) |
|
$ 13.67 | |||||
| 37 | 2326982 | Box, Control |
|
$ 86.07 | |||||
| 38 | 2255624 | Cover, Control |
|
- | |||||
| 39 | W10259855 | Control, Electronic |
|
$ 350.35 | |||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access |
|
$ 130.71 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 91.35 | ||||
| NI | N/P | Refrigerant Charge 5.3 Oz. (r-134a) |
|
- | |||||
| NI | WP978025 | Valve, Access (Replaces: 978025) |
|
Immediately | $ 105.25 | ||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 128.09 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 21.64 |
