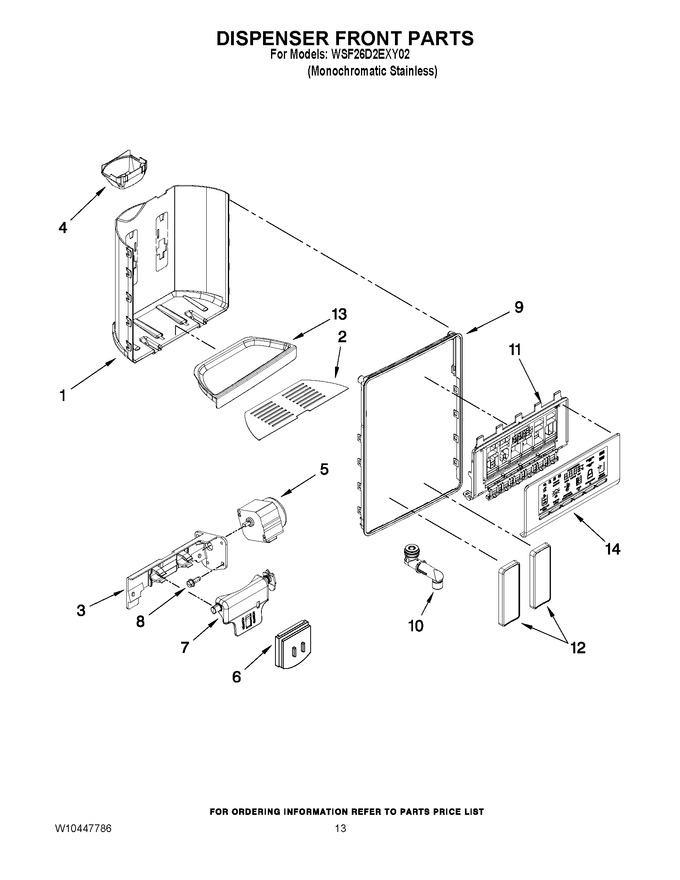

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | WPW10276223 | Grate, Drip Tray (Replaces: W10276223) |
|
$ 57.37 | |||||
| 3 | W10174827 | Bracket, Ice Door |
|
$ 76.42 | |||||
| 4 | WPW10435760 | Chute, Door (Replaces: W10339578) |
|
$ 23.94 | |||||
| 5 | WPW10205978 | Motor, Ice Door (Replaces: W10205978) |
|
$ 104.12 | |||||
| 6 | WPW10493172 | Ice Door Assy (includes 3, 5, 7. & 8) (Replaces: W10353567) |
|
$ 239.86 | |||||
| 7 | WPW10346124 | Support, Ice Door (Replaces: W10346124) |
|
$ 41.85 | |||||
| 8 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.98 | |||||
| 9 | W10276227 | Trim Ring |
|
$ 62.97 | |||||
| 10 | WP2305235 | Spigot (Replaces: 2305235) |
|
$ 147.07 | |||||
| 11 | WPW10372208 | Electronic Control Assy (Replaces: W10326983) |
|
$ 293.04 | |||||
| 12 | WPW10370594 | Pad, Ice & Water (Replaces: W10370594) |
|
$ 310.61 | |||||
| 13 | W11246841 | Tray, Housing (Replaces: W10276224) |
|
$ 60.29 | |||||
| 14 | WPW10254285 | Front Cover (Replaces: W10254285) |
|
$ 305.88 |
