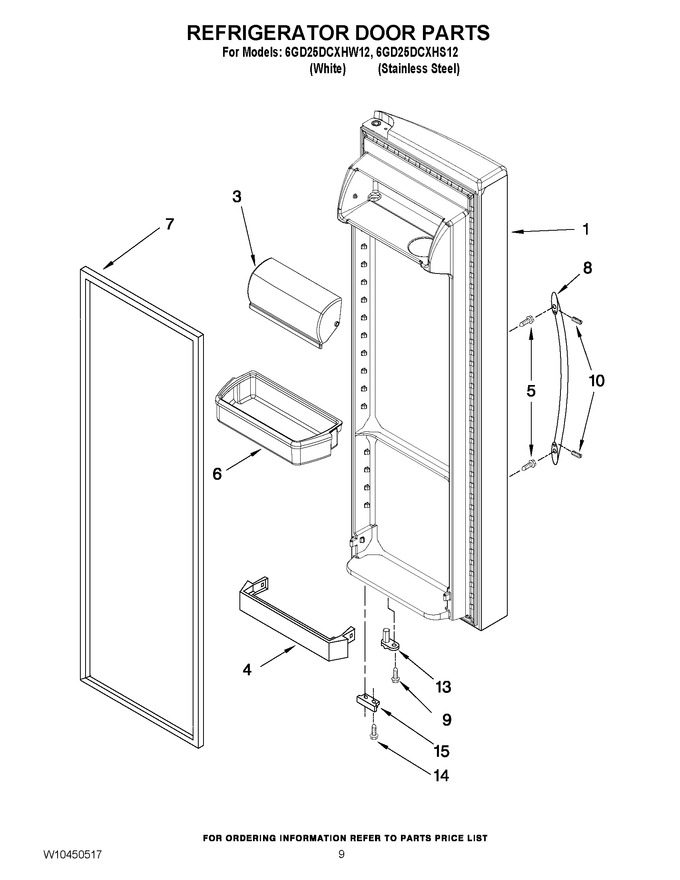

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10303561 | Refrigerator Door (includes Item No.8) (stainless Steel) |
|
- | |||||
| 1 | 2254938W | Refrigerator Door (includes Item No.8) (white) |
|
- | |||||
| 3 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 89.42 | ||||
| 4 | WP2156022 | Trivet, Shelf (Replaces: 2156022) |
|
Immediately | $ 72.80 | ||||
| 5 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 8.51 | ||||
| 6 | WPW10321304 | Door Bin (Replaces: W10321303) |
|
Immediately | $ 44.73 | ||||
| 7 | 2159075 | Door Gasket, Magnetic (mist Beige) (Replaces: 2221302) |
|
Immediately | $ 333.00 | ||||
| 7 | 2159083 | Door Gasket, Magnetic (black) (Replaces: 2221313) |
|
$ 251.49 | |||||
| 8 | 2319727S | Handle (stainless) |
|
$ 133.96 | |||||
| 8 | 2319727W | Handle (white) |
|
$ 106.80 | |||||
| 9 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 10 | W11366418 | Screw, Set (Replaces: W10010140) |
|
Immediately | $ 15.79 | ||||
| 13 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 14 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 15 | W10219802 | Bracket, Door Stop (black) |
|
$ 5.62 | |||||
| 15 | W10219801 | Bracket, Door Stop (chrome) |
|
$ 5.27 |
