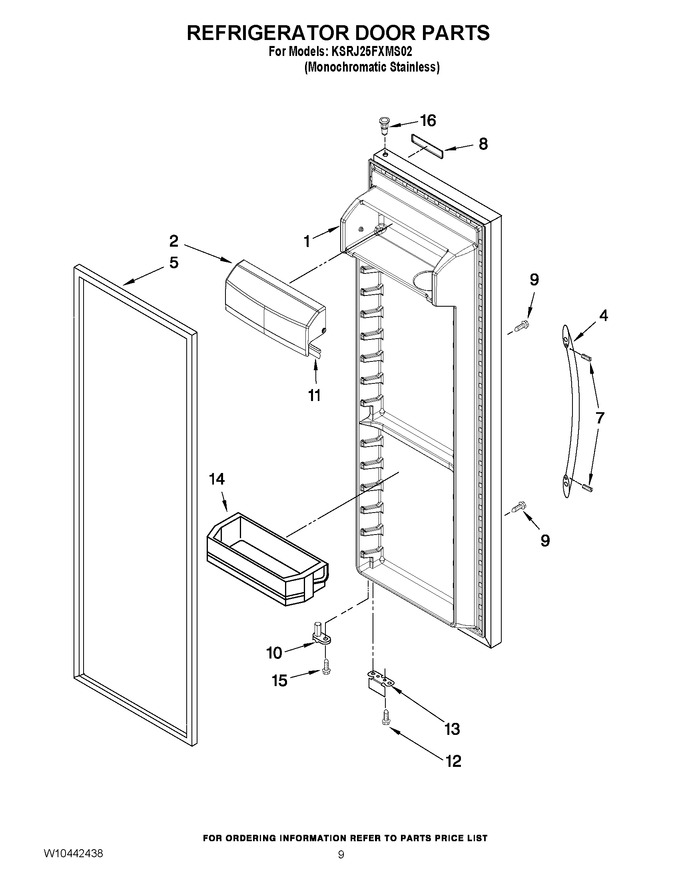

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10318395		Refrigerator Door (includes Item 5) (mono Stainless)		Appelez-nous	-
2	2301486		Door, Compartment		Appelez-nous	-
4	2319727S		Handle (stainless Steel)				$ 133.96
5	WPW10136734		Door Gasket, Magnetic (apollo Gray)   (Replaces: 2326338)				$ 335.39
7	W11366418		Set Screw (chrome)   (Replaces: W10010140)			Immediately	$ 18.43
8	WPW10243391		Nameplate (gray)   (Replaces: W10243391)				$ 58.31
9	WPW10170540		Stud/screw   (Replaces: W10170540)			Immediately	$ 9.66
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 7.20
11	2159124		Gasket		Appelez-nous	-
12	WP489483		Screw   (Replaces: 489420)				$ 11.41
13	W10219808		Bracket, Door Stop (black)		Appelez-nous	-
14	WP2223434K		Door Bin   (Replaces: 2223434)			Immediately	$ 102.08
15	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
16	WP2182181		Thimble-top   (Replaces: 2200087)				$ 8.15
